Quick Details
-
Voltage:
-
none
-
Dimension(L*W*H):
-
4000*2200*2200mm
-
Weight:
-
4800 KG
-
Working Pressure:
-
25 bar
-
Air capacity:
-
31 m³/min
-
Product name:
-

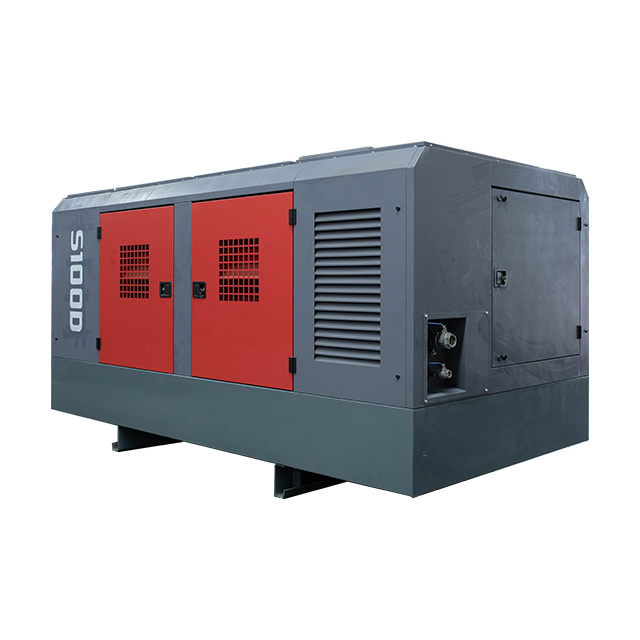

25bar Air Compressor Diesel Engine Screw Air Compresso
-
air displacement:
-
31 m³/min
-
Compression stage:
-
Two-stage
-
Storage tank volume:
-
160 L
-
Screw oil volume:
-
100 L
-
Moving Styie:
-
Stationary/4-wheels
-
Outlet size:
-
1-G2" 1-G1"
-
Average fuel consumption:
-
55L-60L
-
Engine:
-
FAW Xichai
-
Usage:
-
Provide compressed Air for drill rig
Quick Details
-
Place of Origin:
-
Zhejiang
-
Brand Name:
-
Youli
-
Model Number:
-
S100D
-
Voltage:
-
none
-
Dimension(L*W*H):
-
4000*2200*2200mm
-
Weight:
-
4800 KG
-
Working Pressure:
-
25 bar
-
Air capacity:
-
31 m³/min
-
Product name:
-
25bar Air Compressor Diesel Engine Screw Air Compresso
-
air displacement:
-
31 m³/min
-
Compression stage:
-
Two-stage
-
Storage tank volume:
-
160 L
-
Screw oil volume:
-
100 L
-
Moving Styie:
-
Stationary/4-wheels
-
Outlet size:
-
1-G2" 1-G1"
-
Average fuel consumption:
-
55L-60L
-
Engine:
-
FAW Xichai
-
Usage:
-
Provide compressed Air for drill rig
Product Description
Feature
1. Directly used in underground coal mines and tunnels, flexible and portable formoving along the tunnel, with better constant high air pressure to ensure air supplyto the air tools with mechanical efficiency 30% to 100% higher than on the surface,electricity cost 30% less and less air pipes
2. Low rotation speed Oil-injected air end with upgraded alignment design forsmooth operation, high solidity, low noise, long life, high efficiency and etc. Reliable air volume control system, automatic adjustment to 0-100% load, and auto adjustment of power consumption
3. Resistance to explosion, protection of overload, shortage, phase failure and electricity loss, etc. high temperature warning and auto shut down, air filter blockageand oil filter blockage warning; Volume control and pressure control to prevent presure overload to ensure safety of operation
4. Exclusively designed high performance oil and air separator ensuring oil contentexhaust air below 3ppm.
5. Double-flow air coolers for better cooling performance, twice the regular coolersresults
