Quick Details
-
BCD Curve:
-
C
-
Place of Origin:
-
China
-
Brand Name:
-
GEYA OEM ODM
-
Model Number:
-
GYL10-63 RCCB ELCB
-
Rated Frequency (Hz):
-
50Hz/60Hz
-
Number of Pole:
-
2
-
Product name:
-
Residual Current Circuit Breaker RCCB ELCB
-
Material:
-
Bakelite Body
-
Poles:
-
2P 4P
-
Rated Sensitvity In:
-
0.03A 0.1A 0.3A
-
Rate Voltage Ue:
-
230/400V
-
Certificate:
-
CE/ISO9001
-
Standard:
-
IEC61008-1
Quick Details
-
Breaking Capacity:
-
4.5KA/6KA
-
Rated Voltage:
-
230/400V
-
Rated Current:
-
16-63A
-
BCD Curve:
-
C
-
Place of Origin:
-
China
-
Brand Name:
-
GEYA OEM ODM
-
Model Number:
-
GYL10-63 RCCB ELCB
-
Rated Frequency (Hz):
-
50Hz/60Hz
-
Number of Pole:
-
2
-
Product name:
-
Residual Current Circuit Breaker RCCB ELCB
-
Material:
-
Bakelite Body
-
Poles:
-
2P 4P
-
Rated Sensitvity In:
-
0.03A 0.1A 0.3A
-
Rate Voltage Ue:
-
230/400V
-
Certificate:
-
CE/ISO9001
-
Standard:
-
IEC61008-1

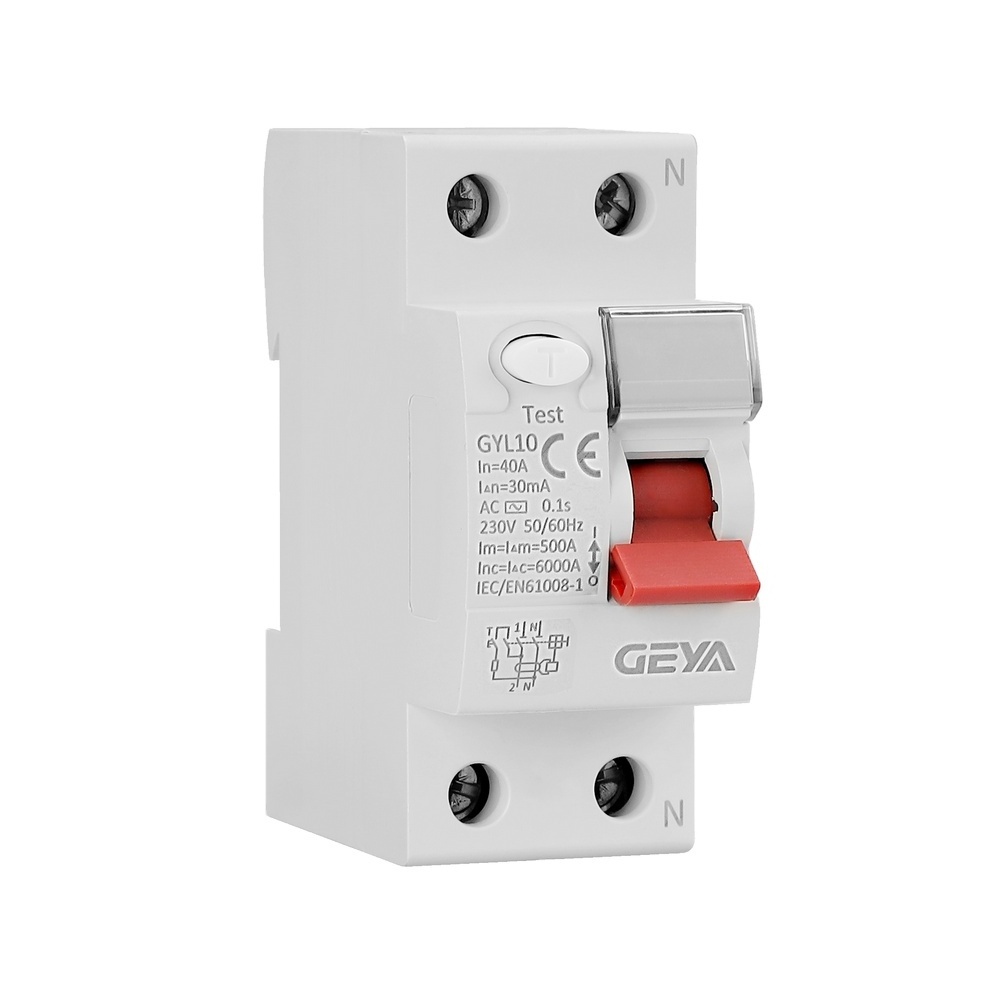

GEYA GYL10 Cheap Breaker Electronic Switch Single Phase RCCB Electromagnetic Switch
General
GYL1 Residual Current Circuit Breaker (F360 RCCB) provide the function of isolation switching and earth leakage protection of electrical circuits.And also provide the indirect protection of the electric current and provide the protection of the fire caused by the electrical circuit fault.
1.In compliance with IEC/EN60898-1.
2.Bilateral busbar wiring capalilities to adapt tothe wider use of permises.
3.Leading in electronic driven,more cost-effectively.
4.Maximum connecting ability of 25mm²,wiring torque 3Nm,applicable to a variety of installing equipments, wiring stronger.
5.Protection class:IP20
Technical Data
| Standard | IEC/EN 61008-1 | ||
|
Electrical features |
Rated current in | A | 16 25 40 63 80 100 |
| Poles | 2P 4P | ||
| Rated voltage Ue | V | 230/400 | |
| Insulation coltage Ui | V | 500 | |
| Rated frequency | Hz | 50/60Hz | |
| Rated residual making and breaking capacity Im | A | 0.03 0.1 0.3 | |
| Rated impulse withstand voltage (1.2/50)Uipm | V | 6000 | |
| Dielectric test voltage at and ind.Freq.for 1min | KV | 2.5 | |
| Pollution degree | 2 | ||
| Break time under In | S | ≤0.1 | |
|
Mechanical features |
Electrical life | 4000 | |
| Machanical life | 8000 | ||
| Fault current indicator | Yes | ||
| Protection degree | IP 20 | ||
| Reference temperature of setting of thermal element | °C | 30 | |
| Ambient temperature(with daily average≤35°C) | °C | -5~+40 | |
| Storage temperature | °C | -25...+70 | |
| Installation | Terminal connection type | Cable/ U-type busbar/ Pin-type busbar | |
| Terminal size top/bottom for cable |
mm² AWG |
25 18-3 |
|
| Terminal size top/bottom for busbar |
mm²
AWG |
25 18-3 |
|
| Tightening torque |
N*m In-lbs. |
2.5 22 |
|
| Mounting |
OnDIN rail FN 60715(35mm) by means of fast clip device |
||
| Connection | From top |
