Quick Details
-
Table Travel (Z) (mm):
-
870 mm
-
Travel (W-axis) (mm):
-
100 mm
-
Marketing Type:
-
New Product 2022
-
Range of Spindle Speed(r.p.m):
-
1200 r.p.m
-
Spindle Motor Power(kW):
-
0.37
-
Production Capacity:
-
600sets per year
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
Tendtool
-
Voltage:
-
customization
-
Dimension(L*W*H):
-
2250x1588x2335mm
-
Weight (T):
-
2.8 T
-
Name:
-
cylinder blocks and head repair machine line Horizontal boring machine
-
Application:
-
Repair Auto Motorcycle engine block and head
-
Model:
-
LB2300/T8115VF/8121VF
-
Product type:
-
Boring machine
-
Max parts length:
-
2300mm
-
Max. boring dia.:
-
250mm
-
Max.drilling &reaming diameter:
-
F30
-
Motor Power (kw):
-
1.5kw
-
After Warranty Service:
-
1 years
-
Key Words:
-
engine repair
Quick Details
-
Table Size (mm):
-
870x467
-
Table Travel (X) (mm):
-
2300 mm
-
Table Travel (Y) (mm):
-
467 mm
-
Table Travel (Z) (mm):
-
870 mm
-
Travel (W-axis) (mm):
-
100 mm
-
Marketing Type:
-
New Product 2022
-
Range of Spindle Speed(r.p.m):
-
1200 r.p.m
-
Spindle Motor Power(kW):
-
0.37
-
Production Capacity:
-
600sets per year
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
Tendtool
-
Voltage:
-
customization
-
Dimension(L*W*H):
-
2250x1588x2335mm
-
Weight (T):
-
2.8 T
-
Name:
-
cylinder blocks and head repair machine line Horizontal boring machine
-
Application:
-
Repair Auto Motorcycle engine block and head
-
Model:
-
LB2300/T8115VF/8121VF
-
Product type:
-
Boring machine
-
Max parts length:
-
2300mm
-
Max. boring dia.:
-
250mm
-
Max.drilling &reaming diameter:
-
F30
-
Motor Power (kw):
-
1.5kw
-
After Warranty Service:
-
1 years
-
Key Words:
-
engine repair
Products Description

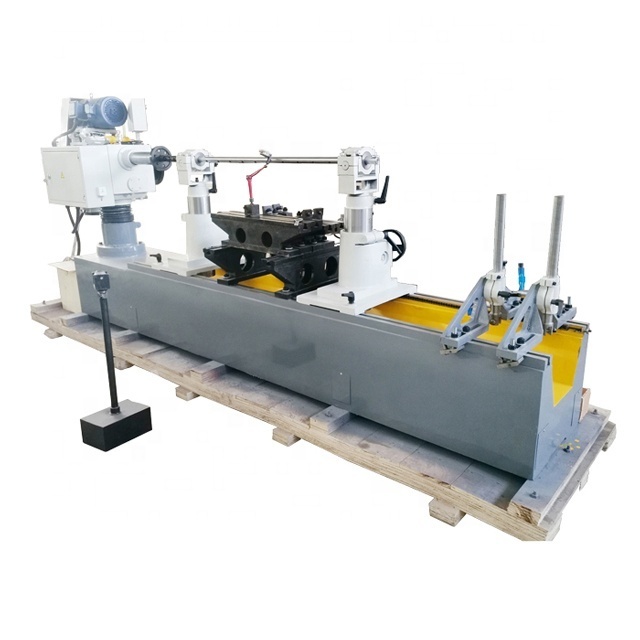

Engine rebuild boring machines cylinder blocks and head repair machine line boring machine
About the Product
Engine rebuild boring machines cylinder blocks and head repair machine line boring machine
Main Feature
Line boring machine for main and camshaft bearings
·Gearbox moves 450mm and the main spindle traverses 550mm. Provide a ahigh efficiency work and make the job congruously.
·The main spindle is inverter motor (stepless speed).4 grades feed speed, widely used for work with different kinds of materials.
·The maximum working length of cylinder block up to 2300mm.
Technical parameter:
|
Model
|
LB2300
|
T8115VF
|
T8120VF
|
|
Max. boring length of cylinder
|
2300mm
|
1600mm
|
2000mm
|
|
Range of boring diameter
|
Φ22~Φ250mm
|
Φ36~Φ250mm
|
Φ36~Φ250mm
|
|
Max. elongation of spindle
|
550mm
|
300mm
|
300mm
|
|
Boring spindle feed
|
0.044,0.078 ,0.121 ,0.176 mm
|
0.044,0.176 mm
|
0.044 ,0.176 mm
|
|
Main motor power
|
1.5kw
|
0.75kw/1.1kw
|
0.75kw/1.1kw
|
|
Overall dimension
|
3510X650X1410mm
|
3510X650X1410mm
|
3910X650X1410mm
|
|
Packing dimension:
|
4720×1000×1750mm
|
4720X1000X1750mm
|
4720X1000X1750mm
|
|
N.W./G.W.
|
2300/2500kgs
|
2300/2500kgs
|
2500/2700kgs
|
