Quick Details
-
Maximum Operating Pressure:
-
250kPa /36psi
-
testing pressure:
-
400kPa /58psi
-
Maximum Water Temperature: 40degree:
-
40degree
-
Filter Area:
-
2.25-16.82 sqm
-
Valve Connections:
-
1.5inch/2inch
-
Usage:
-
Swimming pool / spa
-
Air vent pipe:
-
stainless steel AISI 304
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Pooljoy
-
Model Number:
-
CF Series
-
Maximum Operating Pressure:
-
250kPa /36psi
-
testing pressure:
-
400kPa /58psi
-
Maximum Water Temperature: 40degree:
-
40degree
-
Filter Area:
-
2.25-16.82 sqm
-
Valve Connections:
-
1.5inch/2inch
-
Usage:
-
Swimming pool / spa
-
Air vent pipe:
-
stainless steel AISI 304

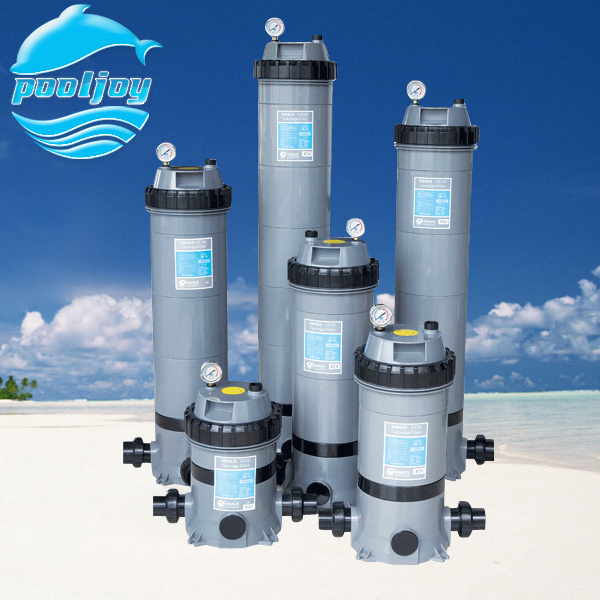

Emaux CF Series swimming pool cartridge filter
Product Description
1. Description & Specification:
| Emaux CF Series swimming pool cartridge filter | ||||||||
| Model No. | Filter Area (m³) | Connections | Max Flow Rate | A (mm) | B (mm) | C (mm) | ||
| CF25 | 2.25 | 1.5inch 50mm | 92lpm | 5.5m³/h | 445 | 387 | 225 | |
| CF50 | 4.63 | 1.5inch 50mm | 190lpm | 11.4m³/h | 625 | 567 | 225 | |
| CF75 | 7.00 | 1.5inch 50mm | 283lpm | 17.0m³/h | 805 | 747 | 225 | |
| CF100 | 9.40 | 2.0inch 63mm | 382lpm | 22.9m³/h | 985 | 927 | 225 | |
| CF150 | 13.72 | 2.0inch 63mm | 555lpm | 33.4m³/h | 1165 | 1107 | 225 | |
| CF200 | 16.82 | 2.0inch 63mm | 680lpm | 40.9m³/h | 1345 | 1287 | 225 | |
2.Features:
* Compact and light weight.
* UV-resistance tank.
* Heavy duty ring-lock lid allows easy cleaning and replacement of the cartiridge element.
* Screw type air bleeder for easy removal of trapped air inside the filter tank.
* High quality oil filled pressure gauge for easy inspection of the operation pressure.
* Application to domestic swimming pool & spa.
3.Standard carton box package :
