Quick Details
-
Engine Brand:
-
Yanmar
-
Travel Speed:
-
0-6KM/h
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Storike
-
Dimension(L*W*H):
-
2150*1050*2465mm
-
Drum diameter:
-
560MM
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
2 Ton Double Drum Asphalt Road Roller
-
Vibration frequency:
-
65HZ
-
Exciting force:
-
25KN
-
Fuel capacity:
-
36L
-
Fuel type:
-
Gasoline/diesel
-
Water tank capacity:
-
160L
-
Hydraulic tank capacity:
-
45L
-
Nominal amplitude:
-
0.5mm
-
Climbing ability:
-
30%
Quick Details
-
Type:
-
Vibratory Roller
-
Power:
-
14.7KW
-
Weight:
-
1800KG
-
Engine Brand:
-
Yanmar
-
Travel Speed:
-
0-6KM/h
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Storike
-
Dimension(L*W*H):
-
2150*1050*2465mm
-
Drum diameter:
-
560MM
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
2 Ton Double Drum Asphalt Road Roller
-
Vibration frequency:
-
65HZ
-
Exciting force:
-
25KN
-
Fuel capacity:
-
36L
-
Fuel type:
-
Gasoline/diesel
-
Water tank capacity:
-
160L
-
Hydraulic tank capacity:
-
45L
-
Nominal amplitude:
-
0.5mm
-
Climbing ability:
-
30%

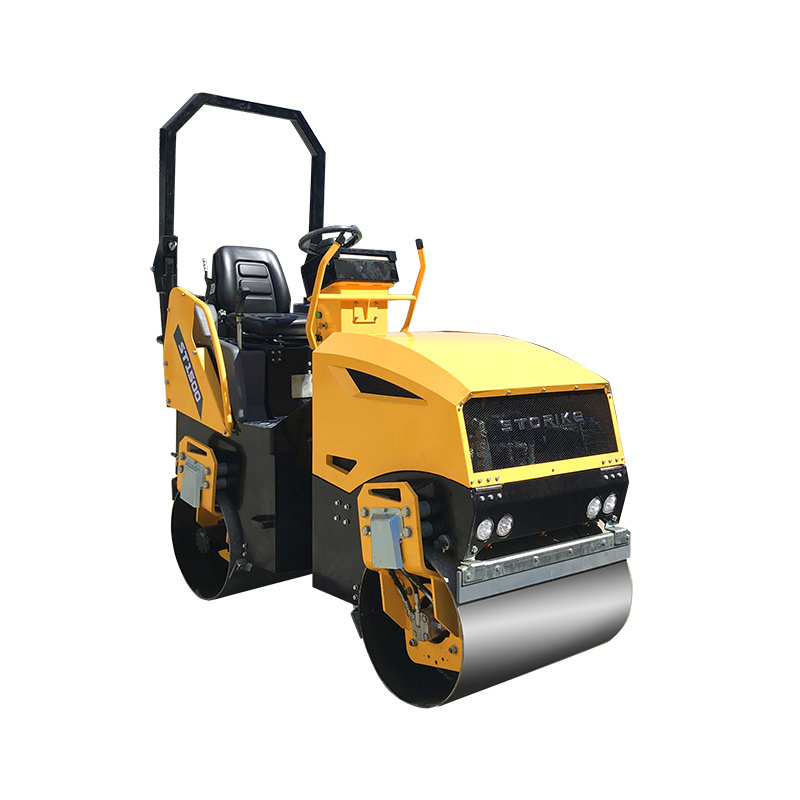

1.5 ton 1.8 Ton 2 Ton Diesel Gasoline Hydraulic Vibratory Asphalt Tandem Road Roller Compactor for sale
| ITEM NO/DETAILS | ST1800 | ST1800C |
| ENGINE | ||
| Engine | HONDA GX630 | YANMAR 3TNM68/KUBOTA D722 |
| Engine type | Doulbe cylinders, OHV, air-cooled, four-stroke, gasoline | Three cylinders, Inline V type,water-cooled, four-stroke, diesel |
| Number of cylinders | 2 | 3 |
| Output power (KW) | 15.3 | 14.7/14.7 |
| Rating speed(RPM) | 3600 | 3600 |
| DRIVING | ||
| Electrical equipment(V) | 12 | |
| Drive mode | Variable plunge pump, stepless speed change, double-wheel series, parallel motor | |
| Walking speed (KM/H) | 0--5 | |
| Theoretical climbing ability(%) | 30/35(vibration on/off) | |
| STEERING | ||
| Swing angle(°) | 28 | |
| Steering mode | Hydraulic cylinder, articulated steering | |
| Steering system | Swing articulated | |
| EXCITING SYSTEM | ||
| Vibration wheel | Front | |
| Drive form | Hydraulic Motors | |
| Vibration frequency (HZ) | 65 | |
| Vibration amplitude (MM) | 0.5 | |
| Exciting force(KN) | 25 | |
| SPRINKLING SYSTEM | ||
| Water spray form | Intermittent pressure water spray | |
| CAPACITY | ||
| Hydraulic oil capacity(L) | 30 | |
| Fuel capacity(L) | 30 | |
| Water tank capacity (L) | 200 | |
| SIZE | ||
| Working width(MM) | 1040 | |
| Overall length(MM) | 2225 | |
| Machine height(MM) | 1790 | |
| Turning radius(outer)(MM) | 2800 | |
| Ground clearance(MM) | 245 | |
| Wheel track(MM) | 1360 | |
| Drum size | 560*900mm*2 | |
| Drum thickness(MM) | 12 | |
| WEIGHT | ||
| Weight(KG) | 1800 | 1800 |
| Static load(N/CM) | 85/80 | |
2. Operating radius is small, can work in a small area, suitable for groove backfill. vibratory roller soil compactor
3. With international famous brand hydraulic drive unit, walking forward and backward, reversing convenient.
4. With international famous NSK bearing, Mitsuboshi v-belt, ensure the good performance of the machine. Infinitely variable speed, double drums driven, the gradeability stays the same when oil temperature is higher.
5. Hydraulic control system, ensure the walking and compaction degree of accuracy, the maintenance is more convenient, convenient use, safety.
