Quick Details
-
Max speed:
-
4000 rpm
-
Maximum centrifugal force:
-
3030 xg
-
Maximum capacity:
-
1000 ml
Quick Details
-
Brand Name:
-
jintaishi
-
Model Number:
-
TD5
-
Place of Origin:
-
Hunan, China
-
Max speed:
-
4000 rpm
-
Maximum centrifugal force:
-
3030 xg
-
Maximum capacity:
-
1000 ml
Product Overview
TD5 desktop low-speed centrifuge
The machine is made of steel, with surface spray treatment, novel shape, beautiful appearance, small size, low noise, complete functions, stable performance, adjustable speed, high efficiency and wide applicability.The machine adopts DC brushless motor drive, microcomputer control, door cover protection and imbalance protection, making your operation safer, simpler and more reliable.The centrifuge is mainly used to separate the solid particles in the suspended solids from the liquid, such as the separation and purification of blood products. It is a centrifugal separation instrument optimized for medical health, food, environmental protection, scientific research and teaching.
FEATURES AT A GLANCE
High precision
Easy to operate
Low noise
It has a wide range of uses
Right elevation
Left elevation

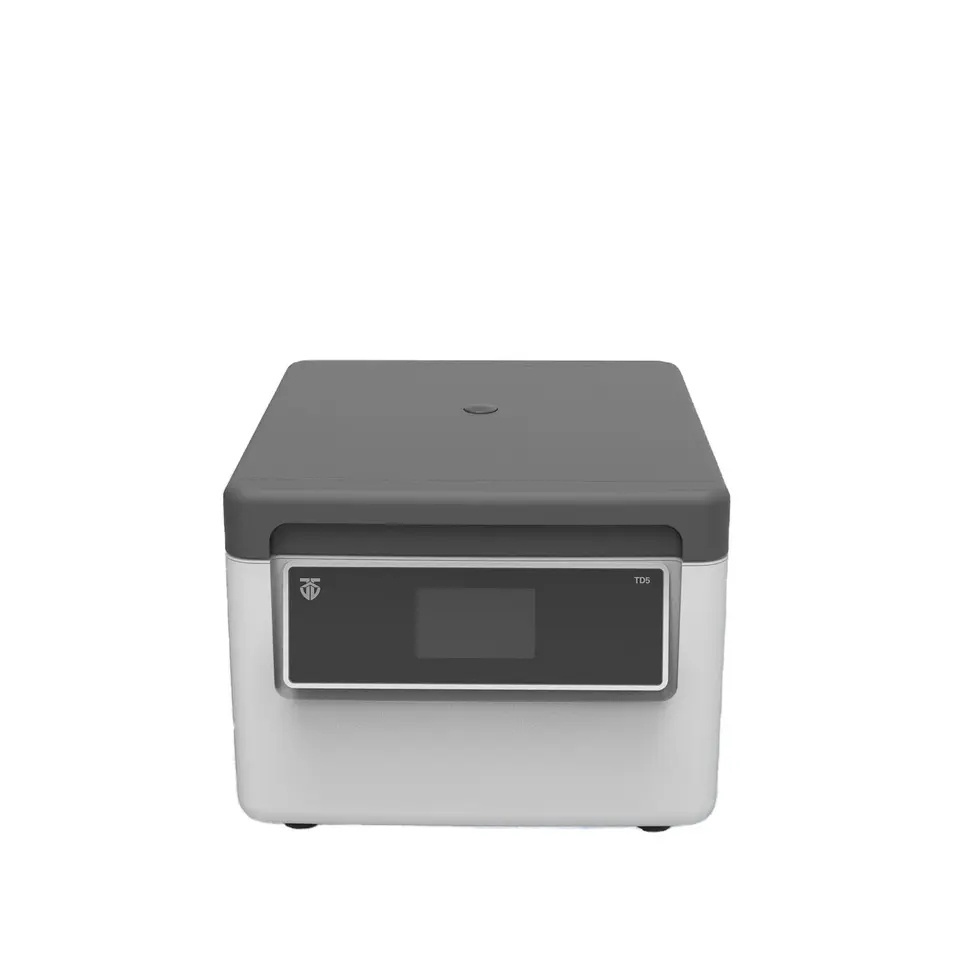

Front elevation
PRODUCT SPECIFICATIONS
|
NO
|
|
|
|
1
|
Maximum speed
|
4000 rpm
|
|
2
|
Maximum RCF
|
3030 xg
|
|
3
|
Maximum capacity
|
80支（F13 x 75/100mm）
|
|
4
|
Speed control range
|
50 to 5000rpm
|
|
5
|
Speed control accuracy
|
±10 rpm
|
|
6
|
timer
|
99min: 59S or 99h: 59min
|
|
7
|
Acceleration/deceleration control
|
Level 9 acceleration control, level 9 braking deceleration control
|
|
8
|
Programming function
|
It can store 99 programming programs
|
|
9
|
Display and operation functions
|
Display and set speed/RCF (xg) operation
|
|
10
|
Drive motor
|
DC brushless motor
|
|
11
|
Safety equipment
|
Door interlock and imbalance detection
|
|
12
|
Screen display
|
5-inch color LCD touch screen
|
|
13
|
size
|
460 W x 543 D x 364 H mm
|
|
14
|
Power requirements
|
Single phase AC220 V ± 10%, 50Hz, 5A
|
|
15
|
Noise level
|
≤ 65 dB (A) (measured 1m in front of the equipment)
|
|
16
|
ambient temperature
|
Applicable ambient temperature for operation: 2 ℃ to 40 ℃;Applicable ambient temperature for performance guarantee: 15 ℃ to 25 ℃
|
|
17
|
weight
|
35 kg
|
Main features
● The front and back plates are formed by one-time molds, with professional appearance design, smooth, clean and beautiful appearance
● It has centrifuge door cover interlock control device, imbalance detection and other safety protection functions
● Unique two-stage damping device is adopted to realize automatic balancing function of rotor operation
All stainless steel horizontal rotor is equipped with stainless steel pipe rack of various capacities, which is easy to replace
● Quiet operation ≤ 65 dB (A), high speed control accuracy up to ± 10 rpm
Rotor collocation
