Small Concrete Garden Edging Machine Kerb Machine For Sale

Small Concrete Garden Edging Machine Kerb Machine For Sale

FOB Reference Price: Get Latest Price

≥1 Sets

US $1500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Product name:: kerb machine

Radiating Way:: Water Cooling

Raw material:: cement, stone,

Start-up Mode:: Electric Start

Application:: road kerb making

road curb size:: Max height 200m, width 180mm

After Warranty Service:: Video technical support

Quick Details

Weight (KG):: 200

Marketing Type:: New Product 2022

Place of Origin:: China

Product name:: kerb machine

Radiating Way:: Water Cooling

Raw material:: cement, stone,

Start-up Mode:: Electric Start

Application:: road kerb making

road curb size:: Max height 200m, width 180mm

After Warranty Service:: Video technical support

Product Overview

Small Concrete Garden Edging Machine Kerb Machine For Sale

Description of road kerb machine:
This machine adopts spiral extrusion feeding method, used for curb concrete forming construction, compact machine, especially suitable for concrete forming construction of leisure green space, flower bed curb of living quarters, can produce highway curb stones, nursery pattern weir, expressway water barrier.

FEATURES AT A GLANCE

Features of road kerb machine:
1,With famous brand engine, reliable performance, easy-to start-up;
With spiral feeding hopper, the counter force drives the machine backward walking; With walking indicator to insure the correct
direction.
2,Slipform is easy to dismantle, and can be designed as per customer’s requirement
Plastic treated, anti-rust and beautiful.
3,Screw extruder feeder in the hopper, the curb machine can counteractive automatically work.
Matching with imported HONDA gasoline engine, GX160 gasoline engine,5.5Hp/3600rpm.

Right elevation

Left elevation

Front elevation

Maximum kerb size can be made is: height≤200mm, width≤180mm . We have mold list, the kerb size in it is popular with the clients. If you have your own mold drawing, we also can make kerb size by clients' requirement.

PRODUCT SPECIFICATIONS

Model	LYS-1
Working type	Walk-behind type
Working speed	1-2m/min
Mold size	height≤200mm, width≤180mm.
Engine Model	HONDA GX160
Engine Type	Gasoline engine, Air-cooled, 4stroke, Single cylinder
Engine Power	5.5hp/3600rpm
Fuel tank volume	3.6L
Fuel consumption	313g/kWh
Lubricant L	0.6L
Size	15007201100mm
Weight	150kg

Details Images

HONDA GX160 Screw extruder feeder in the hopper

Curb Pictures

SIMILAR PRODUCTS

Model	LYS-1	LYS-3	LYS-4	LYS-6	KB-20
Mold size	Width≤180mm height≤200mm	Width≤250mm height≤200mm	Width≤600mm height≤400mm	Width≤900mm height≤500mm	Width≤2000mm height≤600mm
Working speed	1-2m/min	1—3m/min	1-5m/min	1—6m/min	0.9m-16m/min

LYS-3 road curb machine

LYS-4 road curb machine

LYS-6 road curb machine

KB-20 road curb machine

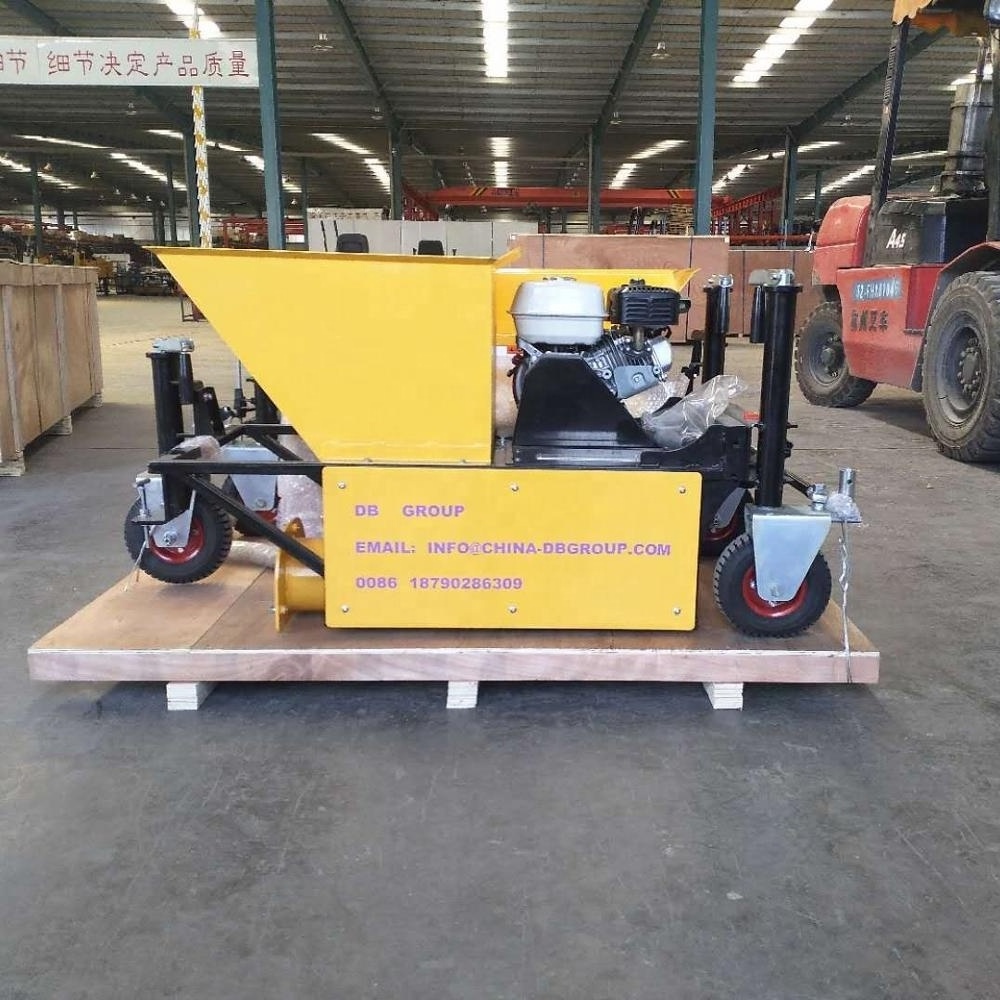

Delivery pictures to our customers

The machine has been exported to America, Australia, New Zealand, Iceland, Ukraine, Russia, Mexico, Chile, Thailand, South Africa, India and so on.

Delivery pictures to America

Delivery pictures to New Zealand

Delivery pictures to Turkey

Packaging & Shipping
Packaging:
1.Standard seaworthy packing suitable for long-distance transportation.
2.All of the productions are inspected carefully one by one by QC before delivery.
Min. Order:
1.We can provide customized service for a minimum order quantity of 1 set.
2.Larger quantity, price will be more favorable.

FAQ

1.What is a concrete curb machine?
Concrete Curb Machines are industrial scale pieces of equipment that are designed to pour concrete in special shapes to quickly create concrete objects such as curbs, gutters, barrier walls, sidewalks, ditches and more.
Power Curbers is the industry leader in slipform concrete curb and gutter machines. Our compact, nimble machines get your curbing jobs done faster and more efficiently – even in tight spots.
2. What are common uses for concrete curbing machines?
Concrete curb machines from Power Curbers are used to quickly complete a huge variety of paving jobs, such as:
Subdivisions
Parking lots
Highway barriers
Sidewalks
Irrigation ditches
And more
3.How to study to operate this machine?
You may View the operation video to study how to operate it.
4.What is the price?
We offer a price range on the website, If you want to know the exact price, please inform us of the port of destination.

Contact us:

If you would like to know more about this concrete cement road curb kerb machine, please contact me.
