Quick Details
-
Model Number:
-
SEM222C
-
Type:
-
Ceiling -Light-Intensity-Sensor
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
SENTEC
-
Output:
-
RS485(Modbus),4-20mA,0-5V, 0-10V, Analog SENSOR
-
Theory:
-
Resistance Sensor
-
Product Name:
-
Ceiling Infrared Alarm Detector
-
Range:
-
0~360°
-
Power supply:
-
12~30VDC,15~30VDC, 5VDC or 24VDC
-
working temperature:
-
-20~+85°C
-
Output signal:
-
4~20mA, 0~5V, 0~10V
-
Material:
-
ABS shell
-
keywords:
-
Ceiling Infrared Alarm Detector
-
Warranty:
-
1YEAR
Quick Details
-
Usage:
-
Ceiling Infrared Alarm Detector
-
Mounting Type:
-
Ceiling
-
Description:
-
Intensity Sensor, SEM222C-Ceiling -Light-Intensity-Sensor
-
Model Number:
-
SEM222C
-
Type:
-
Ceiling -Light-Intensity-Sensor
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
SENTEC
-
Output:
-
RS485(Modbus),4-20mA,0-5V, 0-10V, Analog SENSOR
-
Theory:
-
Resistance Sensor
-
Product Name:
-
Ceiling Infrared Alarm Detector
-
Range:
-
0~360°
-
Power supply:
-
12~30VDC,15~30VDC, 5VDC or 24VDC
-
working temperature:
-
-20~+85°C
-
Output signal:
-
4~20mA, 0~5V, 0~10V
-
Material:
-
ABS shell
-
keywords:
-
Ceiling Infrared Alarm Detector
-
Warranty:
-
1YEAR
OVERVIEW

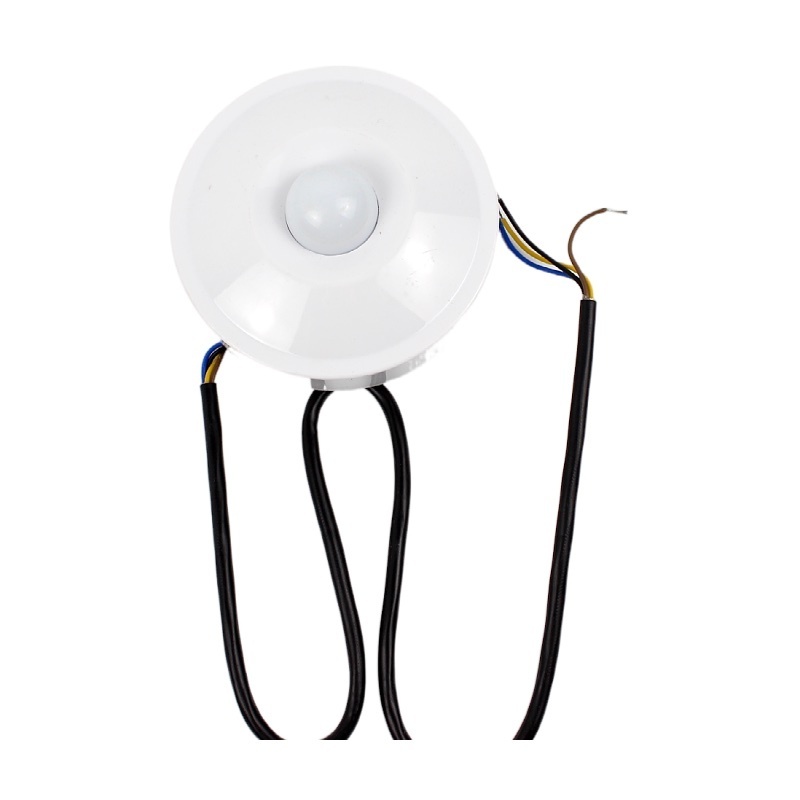

SEM222C ceiling type light transmitter is a high-precision photosensitive transmitter, which adopts the ceiling
mounting mode, and the measurement unit of data output is lux.
SEM222C ceiling type light transmitter is a high-precision photosensitive transmitter, which adopts the ceiling
mounting mode, and the measurement unit of data output is lux.
|
Light intensity range
|
0-65535Lux；0-200000Lux
|
|
|
||
|
Temperature and humidity range
|
-40℃~+60℃，0%RH~80%RH
|
|
|
||
|
Power supply
|
10-30VDC
|
|
|
||
|
Power consumption
|
0.4W
|
|
|
||
|
Output signal
|
RS485(Modbus),4-20mA,0-5V, 0-10V
|
|
|
||
|
|
Temperature
|
±3%RH(60%RH,25℃)
|
|
||
|
|
Humidity
|
±0.5℃（25℃）
|
|
||
|
|
Light intensity
|
±7%(25℃)
|
|
||
|
|
Temperature
|
≤0.1℃/y
|
|
||
|
|
Humidity
|
≤1%/y
|
|
||
|
|
Light intensity
|
≤5%/y
|
|
||
|
|
Temperature
|
≤18s(1m/s wind speed)
|
|
||
|
|
Humidity
|
≤6s(1m/s wind speed)
|
|
||
|
|
Light intensity
|
0.1s
|
|
||
• The illuminance measurement range is 0 ~ 65535 lux, 0 ~ 200000 lux and so on; • The built-in high-sensitivity photosensitive probe has the characteristics of stable signal, high reliability, high measurement accuracy and strong anti-interference performance;
• The shell adopts the beautiful ceiling shell, which is easy to use and install;
• It adopts 10 ~ 30V wide voltage power supply, which is suitable for laboratory, archives, electronic equipment production line and other indoor places that need to monitor the illuminance.
• The shell adopts the beautiful ceiling shell, which is easy to use and install;
• It adopts 10 ~ 30V wide voltage power supply, which is suitable for laboratory, archives, electronic equipment production line and other indoor places that need to monitor the illuminance.
Packing&Shipping
Q:What kind of products do you offer ?
A:SenTec supply pressure sensors, level sensors, temperature sensors , fiow sensors and environment sensors. Export more than 70+countries.
ceiling surface mounted microwave motion lights sensor for laboratory
Q:Could I get samples?
A:Yes,we have half-stock ready products for customized sample.
ceiling surface mounted microwave motion lights sensor for laboratory
Q:How about the quality of the magnets?
A:We have the certification of ISO, Europe standard ATEX, CE and ROSH ect.
ceiling surface mounted microwave motion lights sensor for laboratory
Q:What is the delivery time?
A:For standard specification,delivery time 5-7days; For customized specification 10-20days.
ceiling surface mounted microwave motion lights sensor for laboratory
Q: What is your terms of payment ?
A: We could accept T/T, Paypal, WU ,Trade Assurance.
ceiling surface mounted microwave motion lights sensor for laboratory
Q: What is the warranty for your product ?
A: Warranty: 12-24Month, Lifetime maintenance
ceiling surface mounted microwave motion lights sensor for laboratory
Q. How can l get the quotation or send my inquiry to?
A. Send your inquiry to us by the inquiry from on the right-side or the bottom of this page.
1. What is the Measuring medium? Water, oil or others.
2. How about Measuring range: 0-5m or..?
3.What would be the processing pressure and temperature？
4. Which signal output:4-20mA, RS485 or..?
5. Require quantity?
The specific price is subject to the parameters, please contact us for the quotation
