- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
220V 50/60Hz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SanPong
-
Dimension(L*W*H):
-
3000X900X1800mm
-
Weight:
-
650 KG
-
Product name:
-
automatic tin cans canning sealing machine
-
Sealing type:
-
seaming roller
-
Packing speed:
-
30-35 cans/min
-
Model:
-
SP-100E
-
Main Function:
-
Sealing the can
-
Machine material:
-
304# Stainless Steel Cover
-
Can diameter:
-
35-130mm
-
Can heigh:
-
50-200mma(adjustable)
Quick Details
-
Packaging Type:
-
CANS, Bottles
-
Packaging Material:
-
Plastic, Paper, Metal
-
Driven Type:
-
Electric
-
Voltage:
-
220V 50/60Hz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SanPong
-
Dimension(L*W*H):
-
3000X900X1800mm
-
Weight:
-
650 KG
-
Product name:
-
automatic tin cans canning sealing machine
-
Sealing type:
-
seaming roller
-
Packing speed:
-
30-35 cans/min
-
Model:
-
SP-100E
-
Main Function:
-
Sealing the can
-
Machine material:
-
304# Stainless Steel Cover
-
Can diameter:
-
35-130mm
-
Can heigh:
-
50-200mma(adjustable)
Product Overview

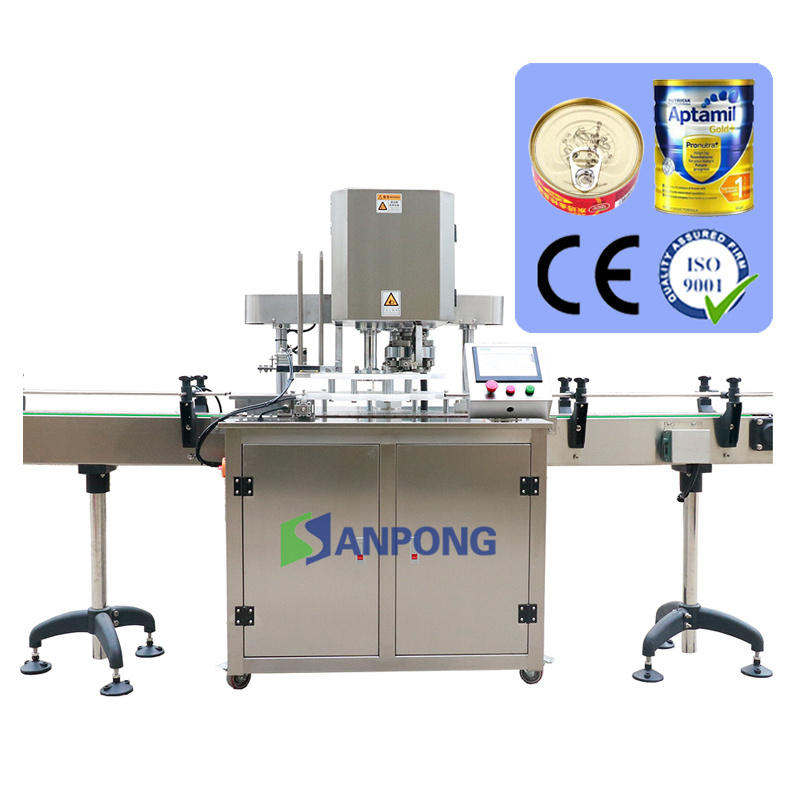

Can Sealing Canning Machine
It
is applicable for sealing of various tin cans, aluminum cans, paper cans , PET cans and all kinds of round cans. It
s our company's 7th generation products, there are more than 4,000 customers of the same product using the feedback experience, the sealing performance is very good and the failure rate is extremely low.
Product Parameters
|
NAME
|
Technical Parameters
|
|
Model
|
130E
|
|
Qty of Sealing Head
|
1
|
|
Sealing Speed
|
30-40cans/min
|
|
Can Diameter
|
40-130mm
|
|
6Sealing Height
|
50-220mm
|
|
Working Voltage
|
110V / 220V / 380V
|
|
Electricity Power
|
1300W
|
|
Weight
|
550KG
|
|
Dimension
|
2950(L)*950(W)*1700(H)mm(including 2m conveyer belt)
|
Structure and performance specification:
1.The
automatic can sealing machine
is controlled by PLC system and touch screen.
2. The overall appearance material is mainly made of stainless steel 304 with a thickness of 1.5mm.
2. The overall appearance material is mainly made of stainless steel 304 with a thickness of 1.5mm.
3.The production capacity and automation are very high.So the labor cost can be saved.It is applicable to be part of packaging system.
4.There are four seaming rollers around the chuck.The seaming rollers will never be rusty and very hard because of the chrome steel material.
4.There are four seaming rollers around the chuck.The seaming rollers will never be rusty and very hard because of the chrome steel material.
5.The roller is imported from Taiwan. The material of the roller is SKD Japanese special mold steel, with a life span of more than 5 million seals.
6.Irrotional design is adopted for cans during the seaming and the processing accuracy is high.The seaming quality is superior to other products.
7.It is simple in operation and it is an ideal packing equipment of food,beverage,chemical and the other industry.
6.Irrotional design is adopted for cans during the seaming and the processing accuracy is high.The seaming quality is superior to other products.
7.It is simple in operation and it is an ideal packing equipment of food,beverage,chemical and the other industry.
(
automatic tin cans canning sealing machine
)
PRODUCT CONFIGURATION
SKD Japanese special mold steel Rollers
Touch Screen
Korea AUTONICS Sensor
Projects Show
Why Choose Us
About Sanpong
FAQ
Q1: How to find a
packaging machine
suitable for my product? For example:
automatic tin cans canning sealing machine
.
Tell us about your product details and packing requirements.
1. What kind of product you would like to pack?
2. The bag/sachet/pouch size of you need for the product packing ( the length, width).
3. The weigh of each pack you need.
4. You requirement for the machines and the bag style.
Q2: Is engineer available to serve oversea?
Yes, but the travel fee is responsible by you.
In order to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q3. How can we make sure about the machine quality after placking the order?
Before delivery, we will send you the pictures and videos for you to check the machine quality.
And also you can arrange for quality checking by yourself or by your contacts in China.
Q4. We are afraid you won't send us the machine after we send you the money?
We have our business license and certificate. And it is available for us to use alibaba trade assurance service,guarantee your money, and guarantee your machine's on-time delivery and machine quality.
Q5. Can you explain me the whole transaction process ?
1.Sign the Contact
2.Arrange 30% deposit to our factory
3.Factory arrange production
4.Testing & detecting the machine before shipping
5.Inspected by customer or third agency through online or site test.
6.Arrange the balance payment before shipment.
Q6: Will you provides the delivery service?
A: Yes. Please inform us of your final destination, we will check with our shipping agent to quote the shipping cost for your
reference before delivery.
Tell us about your product details and packing requirements.
1. What kind of product you would like to pack?
2. The bag/sachet/pouch size of you need for the product packing ( the length, width).
3. The weigh of each pack you need.
4. You requirement for the machines and the bag style.
Q2: Is engineer available to serve oversea?
Yes, but the travel fee is responsible by you.
In order to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q3. How can we make sure about the machine quality after placking the order?
Before delivery, we will send you the pictures and videos for you to check the machine quality.
And also you can arrange for quality checking by yourself or by your contacts in China.
Q4. We are afraid you won't send us the machine after we send you the money?
We have our business license and certificate. And it is available for us to use alibaba trade assurance service,guarantee your money, and guarantee your machine's on-time delivery and machine quality.
Q5. Can you explain me the whole transaction process ?
1.Sign the Contact
2.Arrange 30% deposit to our factory
3.Factory arrange production
4.Testing & detecting the machine before shipping
5.Inspected by customer or third agency through online or site test.
6.Arrange the balance payment before shipment.
Q6: Will you provides the delivery service?
A: Yes. Please inform us of your final destination, we will check with our shipping agent to quote the shipping cost for your
reference before delivery.
