Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Hoystar
-
Dimensions(L*W*H):
-
1350*1300*1600mm
-
Weight:
-
220 KG
-
Certification:
-
CE Certification
-
Max. Print Area:
-
150*200mm
-
Printing area:
-
150*200mm
-
work station:
-
8PCS
-
Drying system:
-
3PCS
-
Gross weight:
-
220kg
-
Printing color:
-
two color
-
Printing type:
-
screen printer
-
Application:
-
T-shirt Printing
Quick Details
-
Condition:
-
New
-
Color & Page:
-
Two colors
-
Voltage:
-
220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Hoystar
-
Dimensions(L*W*H):
-
1350*1300*1600mm
-
Weight:
-
220 KG
-
Certification:
-
CE Certification
-
Max. Print Area:
-
150*200mm
-
Printing area:
-
150*200mm
-
work station:
-
8PCS
-
Drying system:
-
3PCS
-
Gross weight:
-
220kg
-
Printing color:
-
two color
-
Printing type:
-
screen printer
-
Application:
-
T-shirt Printing
Products Description

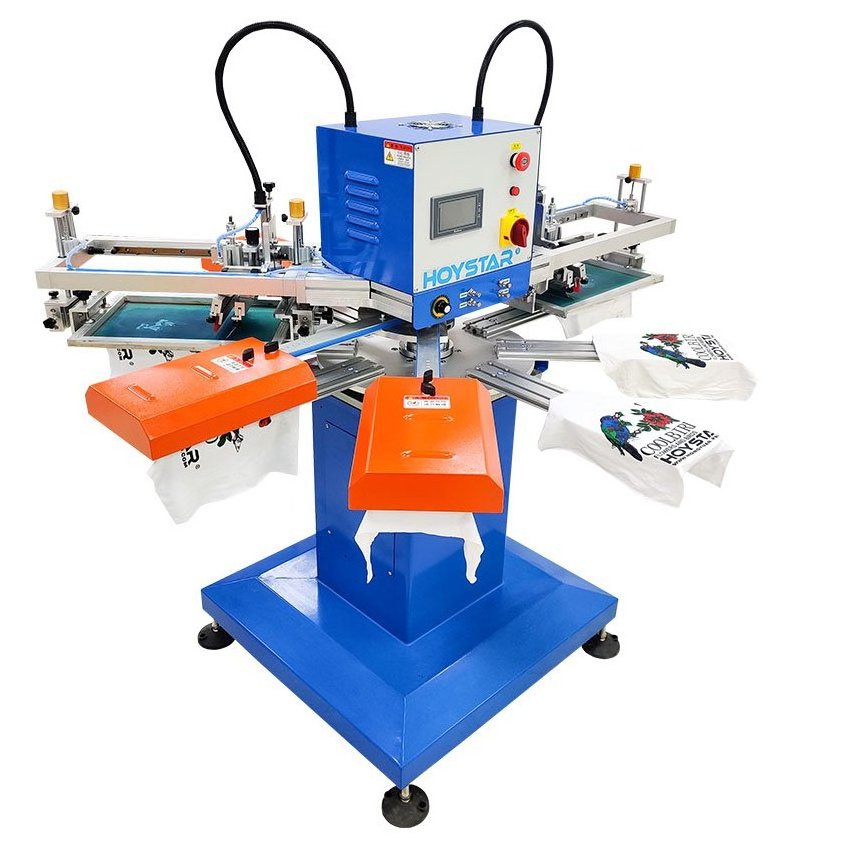

Q:What is the application of this machine?
A:high rapid scok screen printing machine in textile industry,the speed can be up to 1200PCS/Hr,it is suitable for printing garment tagless or label,rotary wortable,very convenient to load or unload products,lots of customers like it very much because of high quality and low price.
|
Q:What about technical parameter?
|
|
|
|
|
||||
|
A: It has the following technical parameter:
|
|
|
|
|
||||
|
Max.printing area
|
|
150*200mm
|
|
|
||||
|
Printing speed
|
|
1200PCS/Hr
|
|
|
||||
|
Power
|
|
220V/ 4.5KW
|
|
|
||||
|
Machine size
|
|
1350*1300*1600mm
|
|
|
||||
|
Weight
|
|
220kg
|
|
|
||||
|
Workstaion
|
|
8 PCS
|
|
|
||||
|
Drying system
|
|
3 PCS
|
|
|
||||
Q: What are the functions of this machine?
A: It has the following functions:
1. Machine control part adopts MITSUBISHI PLC controller,Touch screen control,easy to operate
2.Three printing model to choose,manual/semi-auto/full-auto,printing Interval time is numerical control
3. The rotate worktable adopts electric controll,CHINT AC contactor, Taiwan FOTEK photoswitch
4. Drying system lamp brightness can be adjusted,like this,it can meet different temperatures needing
5. High quality infrared lamps,it can be up to 1500-2000 hours
6. It has "No product,No print" function,you can open and stop machine freely during printing
7. Product sensors can be 360 degrees adjustable
8. Pneumatic components control adopts Taiwan brand,
9. Front and back printing precision linear Guide rails using Taiwan brand.
10. Machine surface is metallic paint ,beautiful and dignified
11. The 2 printing head can be controlled independently
12. It has total 8 pcs workstation,2 pcs of printing,3 pcs of drying systems and 3 pcs of load/discharging workstation
Details Images
screen frame with pattern
1) we can make it for you
2) we also can supply screen frame making equipment
2) we also can supply screen frame making equipment
rotary worktable,8 pcs of workstation
