Web-based management software was pre-installed into the Central Server before delivery, which helps you remotely and centrally manage multi parking lots anywhere and anytime.
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
12 Months
-
Loading Capacity:
-
Max. 50 entry & 50 exit
-
Communication:
-
TCP/IP
-
Software:
-
Web-based
-
Card type:
-
ID/IC / Long Range RFID
-
Card Capacity:
-
200 PCS.
-
Payment:
-
Central Payment
-
Charging Standard:
-
Customizable
-
Display:
-
LCD/LED
-
Voice Prompt:
-
Optional
-
Intercom:
-
Optional
-
Image Capture:
-
Optional
Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
DASHOU
-
Model Number:
-
V32-810C Central Pay
-
Warranty:
-
12 Months
-
Loading Capacity:
-
Max. 50 entry & 50 exit
-
Communication:
-
TCP/IP
-
Software:
-
Web-based
-
Card type:
-
ID/IC / Long Range RFID
-
Card Capacity:
-
200 PCS.
-
Payment:
-
Central Payment
-
Charging Standard:
-
Customizable
-
Display:
-
LCD/LED
-
Voice Prompt:
-
Optional
-
Intercom:
-
Optional
-
Image Capture:
-
Optional
Product Description

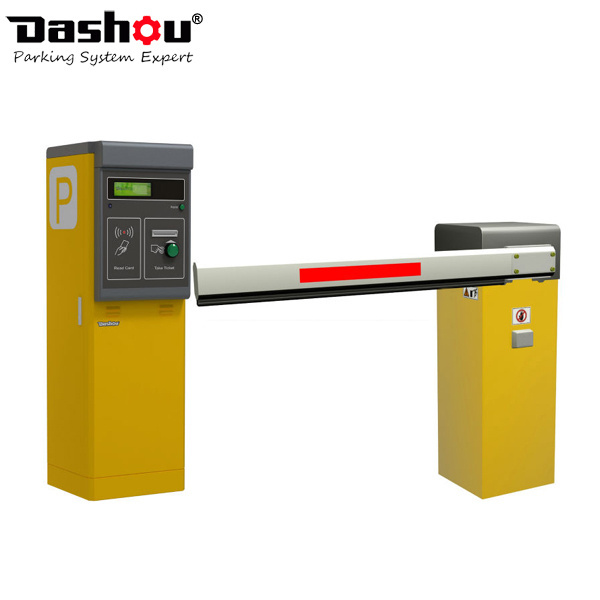

Top Quality Automatic Smart Car Parking Machine(System Recommended)
V32-810C Central Pay is a TCP/IP based card dispensing Parking Management System for managing pay-to-park facilities with high traffic flow, for both hourly parkers (visitors) and season parkers (members). It is ideal solution for parking lots of premises such as shopping mall, airports, hotel, exhibition center, hospital and apartment etc.
Web-based management software helps you remotely and centrally manage multi parking lots anywhere and anytime.
API provides easy integration of parking system with your own system.
System Components
① Entry Station
② Exit Station
③ Barrier Gate
⑥ Computer
⑧ Loop Detector & coil
Web-based Software
Charging Software
Central Server
Charging Card Reader
④ CCTV Cameras *
⑤ Parking Space Display *
⑦ Parking Fee Display *
Traffic Lights *
Voice Prompt *
Intercom *
Cash Box *
Receipt Printer *
Remark: items marked * are optional
How does Parking System works--- For Hourly Parkers (Visitors)
See video at https://youtu.be/nwV5ZLlOL8I
----- A vehicle approaches entry and triggers Loop Coil of Entry Station
----- The visitor presses ticket button of Entry Station to get a proximity card
----- Entry Barrier opens automatically, and it closes automatically after the vehicle passes loop coil of Entry Barrier
----- He walks to the charging point which is located in central place instead of the exit, and gives the card to the cashier
----- The cashier swipe it onto the reader connected to Charging PC, and payment information will be shown on the display
----- The visitor pays cash, then the cashier return back the card to him
----- Within given time he drives to the exit and inserts the card into unmanned Exit Station, and then Exit Barrier open
----- Exit Barrier closes automatically after the vehicle passes the loop coil of Exit Barrier.
----- Within given time he drives to the exit and inserts the card into unmanned Exit Station, and then Exit Barrier open
----- Exit Barrier closes automatically after the vehicle passes the loop coil of Exit Barrier.
How does Parking System works--- For Season Parkers (Members)
See video at
https://youtu.be/w8f44drYOJw
----- The visitor swipes proximity card onto the proximity card reader built-in Entry Station
Or long range RFID tag on window shield was read by long range RFID Reader
----- Entry Barrier opens automatically, and it closes automatically after the vehicle passes loop coil of Entry Barrier
----- Same will happen at exit
Web-based Management Software
With the open Dashou system and its flexible interfaces (API provided), you can easily and securely integrate Dashou
parking system with the third party system
such as APP on smartphone.
Customizable Charging Standards
The software provides several customized charging standards, each comprises of several sub items such as free time, charging rates during different periods, charging fee during the night etc. Customized charging standards matches all your charging requirements.
Dashou reporting solutions give you access to all datas such as turnover, number of parking customers, etc. - for single or multiple facilities. Reports helps you understand how to improve the operations quality and therefore increase your sales, as well as for your internal auditing, and to analyze customer behavior to steer the development of customized products.
Classical-design Heavy Duty IP54 Cabinet
The cabinet adopts 2mm precise machining cold-rolled plate and static electricity sprayed anti-UV surface which is non- scale and unfading, conformed to the IP54 dust-proof and water-proof. Classical design also decorates your premises.
Customizable LCD/LED & Voice Prompt
The entry & exit station can be equipped with LCD or LED screen on which detailed operation and system info. are simply and friendly shown. Voice Prompt gives a warm-hearted welcome and operation guide to parkers. Both LCD and voice prompt can be customized.
Unmanned entry & exit helps you reduce labor cost. Hourly parkers themselves take proximity cad from Entry Station, season parkers get access by self-service swiping their cards on Entry Station, or enter w/o stop if window shield tag is read by long range reader.
“Image Comparison” Make Parking Safe
When vehicle leaves at the exit, two photos respectively taken by CCTV cameras (installed at entry and exit) will be shown together side by side on PC for comparison, to ensure it is the same vehicle in and out.
Customizable Receipt (optional)
By connecting a printer to charging PC, you can print out receipt which can be customized on the charging software upon your unique requirements, even receipt required by your tax bureau.
Some shopping malls issue parking coupons to customers for long term relationship. Different types of coupon can be created on the parking management software and sold to shops or end users to deduct parking fee.
Entry/Exit Station and PC Work Separately
Entry Station and Exit Station separately work fine without connecting to a PC. The data stored in Central Server, Entry Station and Exit Station will be automatically uploaded to a computer if connected.
'
One-card-one-vehicle'
With this function, other season parkers can not use the same card to enter before the owner of this card leave parking lot. It ensures safety for season parkers` vehicle and avoids loss of parking fee for owner of parking lot.
