Quick Details
-
Model Number:
-
YG268
-
Certificate:
-
ISO
-
Measuring Range::
-
0~2000GU
-
Measurement Angle:
-
20° + 60° + 85°
-
Standard:
-
ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457
-
Application:
-
gloss meter
-
Product name:
-
Precise Gloss Meter
-
Division Value:
-
0.1GU
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
YG268
-
Certificate:
-
ISO
-
Measuring Range::
-
0~2000GU
-
Measurement Angle:
-
20° + 60° + 85°
-
Standard:
-
ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457
-
Application:
-
gloss meter
-
Product name:
-
Precise Gloss Meter
-
Division Value:
-
0.1GU

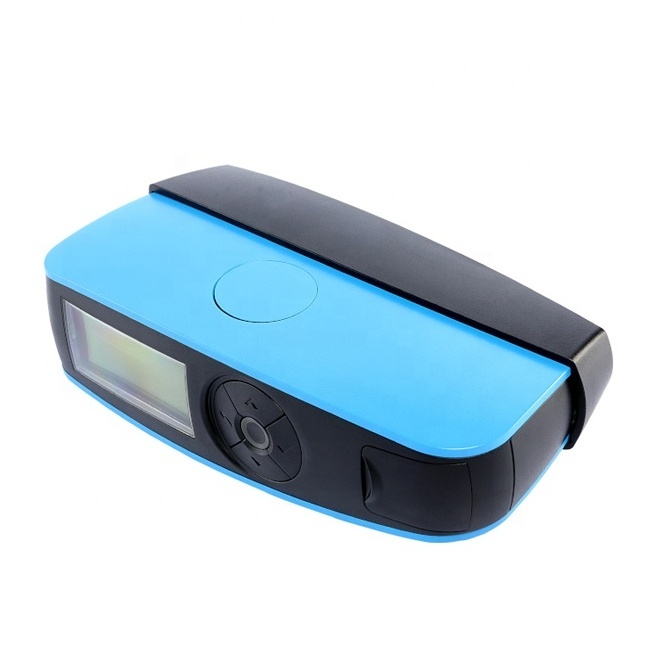

YG268 Gloss Meter 20 60 85 Degree Three Angle
YG268 gloss meter is a high-end precise tri-angle smart gloss meter for surface glossiness measurement and management, which can be widely applied in all kinds of industries, such as plastics, metals, paint and coating, furniture, wood, ink, printing and packaging, cosmetics, fabrics, textiles and garments, electronics, tiles and decoration industry.
Features:
|
YG Series Specification Parameter |
|||
|
Model |
YG60S 60°Economic Gloss Meter |
YG60 60°Accurate Gloss Meter |
YG268 Tri-angle Gloss Meter |
|
Measuring Angle |
60° |
60° |
20° 60°85° |
|
Measuring Area |
60°: 0-200GU |
60°: 0-1000GU |
20°: 0-2000GU |
|
60°: 0-1000GU |
|||
|
85°: 0-160GU |
|||
|
Division Value |
1GU |
0.1GU |
|
|
Measuring Modes |
Basic mode |
Basic mode; Statistic mode; Continuous mode; QC mode |
|
|
Measuring Time |
0.5S |
||
|
Repeatability |
0~100GU : ±0.5GU; 100~2000GU : ±0.5%GU |
0~100GU : ±0.2GU; 100~2000GU : ±0.2%GU |
0~100GU : ±0.2GU; 100~2000GU : ±0.2%GU |
|
Accurate |
Conform with JJG696 second grade requirements of gloss meter |
Conform with JJG696 first grade requirements of gloss meter |
|
|
Auto Power-off Time |
30s |
Within 30s-120s |
|
|
Long-time Calibration |
/ |
Automatically check and made the calibration |
|
|
Language |
Chinese & English |
||
|
Storage |
/ |
35000(Basic mode &Statistic mode : 1500; Continuous mode : 10000; QC mode: 10000) |
|
|
Display |
2.3 inch white and black screen |
||
|
Size |
160*52*84mm |
||
|
Weight |
About 300g |
||
|
Power Supply |
1pc dry-cell battery(can measure 10000 times) or use USB Charge |
||
|
Interface |
USB |
USB & Bluetooth 2.1 version |
|
|
PC Software |
/ |
GQC6 QC software can printing testing report and with more extended functions |
|
|
Operation Temperature Range |
0-40℃(32-104° F) |
||
|
Storage Temperature Range |
-20-50℃(-4-122° F) |
||
|
Humidity Range |
< 85% RH, without condensation |
||
|
Standard Accessories |
User manual, calibration plate |
USB cable, user manual, calibration plate, QC software |
|
|
Optional Accessories |
Miniature printer |
||
|
Notification: the technical parameter is only for reference |
|||
