Quick Details
-
Model Number:
-
W-9B
-
Dimension:
-
932*360*584mm
-
Storage:
-
Other
-
SNR:
-
Other
-
Output Power:
-
1000w
-
Format:
-
two-way line array system
-
Type:
-
line array system
-
Frequency Response:
-
60Hz-18KHz±3dB
-
Color:
-
Black
-
Coverage:
-
110°H*7°V
-
Finsh:
-
Textured high-density polyurethane coating
-
Enclosure:
-
Birch Plywood
-
Certification:
-
CE, RoHS
-
LF section nominal impedance:
-
8 ohm
-
HF section nominal impedance:
-
16 ohm
Quick Details
-
Warranty:
-
1year, Two Years Free Warranty
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CVR
-
Model Number:
-
W-9B
-
Dimension:
-
932*360*584mm
-
Storage:
-
Other
-
SNR:
-
Other
-
Output Power:
-
1000w
-
Format:
-
two-way line array system
-
Type:
-
line array system
-
Frequency Response:
-
60Hz-18KHz±3dB
-
Color:
-
Black
-
Coverage:
-
110°H*7°V
-
Finsh:
-
Textured high-density polyurethane coating
-
Enclosure:
-
Birch Plywood
-
Certification:
-
CE, RoHS
-
LF section nominal impedance:
-
8 ohm
-
HF section nominal impedance:
-
16 ohm

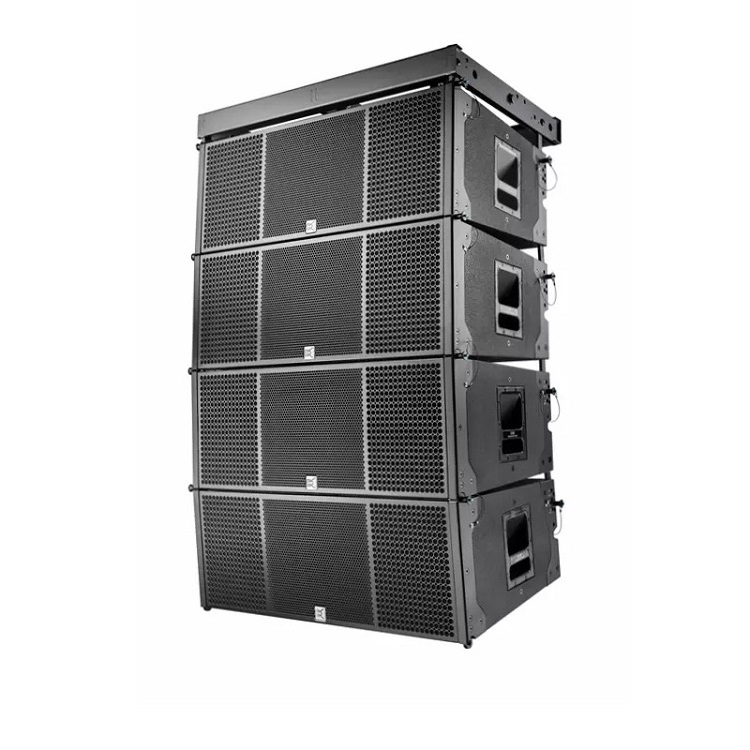

Product Description
|
Model
|
W-9B
|
|
Type
|
Two-way line array system
|
|
Frequency Response
|
60Hz-18KHz±3dB
|
|
Power handling
|
LF 1200W(RMS)4800W(PEAK)
MF 500W RMS 2000W peak
HF 200W(RMS)800W(PEAK)
|
|
Sensitivity
|
LF 106dB(1W@1M)
MF 107dB(1W@1M)
HF 109dB(1W@1M) |
|
Max SPL
|
LF 133dB(PEAK)
MF 133dB(PEAK)
HF 135dB(PEAK) |
|
Drivers
|
LF 2×12"(310mm) woofer 75mm(3in)coil
HF 2×3" neodymium compression driver with 75mm titanium diaphragm
|
|
Coverage
|
110°H×7°V
|
|
Finish
|
Textured high-density polyurethane coating
|
|
Connectors
|
2×NL4MP speakon
|
|
Enclosure
|
Birch Plywood
|
|
Dimensions
|
932×360×584mm(W×H×D)
|
|
Net weight
|
64kg
|
|
Gross weight
|
68kg
|
