Quick Details
-
Max. Turned Length (mm):
-
700 mm mm
-
Place of Origin:
-
China
-
CNC or Not:
-
Normal
-
Automatic Grade:
-
Manual
-
Color:
-
Customized Option
-
Logo printing:
-
OEM Service
-
Swing Over Bed:
-
280mm
-
Distance Between Centers:
-
700mm
-
Spindle Bore:
-
26mm
-
Spindle Taper:
-
MT4
-
Range Of Spindle Speeds:
-
50-2500r.p.m
-
Taper Of Tailstock Quill:
-
MT2
-
Metric Threads Can Be Cut:
-
0.2-3.5mm
-
Motor Power:
-
1100w
-
Max. Swing Diameter (mm):
-
280 mm
Quick Details
-
Max. Length of Workpiece (mm):
-
700 mm
-
Machining Capacity:
-
Light Duty
-
Range of Spindle Speed(r.p.m):
-
50 - 2500 r.p.m
-
Max. Turned Length (mm):
-
700 mm mm
-
Place of Origin:
-
China
-
CNC or Not:
-
Normal
-
Automatic Grade:
-
Manual
-
Color:
-
Customized Option
-
Logo printing:
-
OEM Service
-
Swing Over Bed:
-
280mm
-
Distance Between Centers:
-
700mm
-
Spindle Bore:
-
26mm
-
Spindle Taper:
-
MT4
-
Range Of Spindle Speeds:
-
50-2500r.p.m
-
Taper Of Tailstock Quill:
-
MT2
-
Metric Threads Can Be Cut:
-
0.2-3.5mm
-
Motor Power:
-
1100w
-
Max. Swing Diameter (mm):
-
280 mm
Features
Widely useful,operation very easy, processing scope widespread.
Precision-manufactured,taper roller bearings in P5 quality.
Guaranteed concentricity precision of the main spindle less than 0.009 mm.
Concentricity precision - lathe chuck smaller than 0.05 mm.
Easy operating gear box has various speeds and thread cutting function.
Powerful, maintenance-free motor.
Induction -hardened and ground prismatic bed made from cast iron.
High precision and hardened spindle.
Safety magnetic and lock key European-standard switch.
Cost-efficient, precise and of stable value.
|

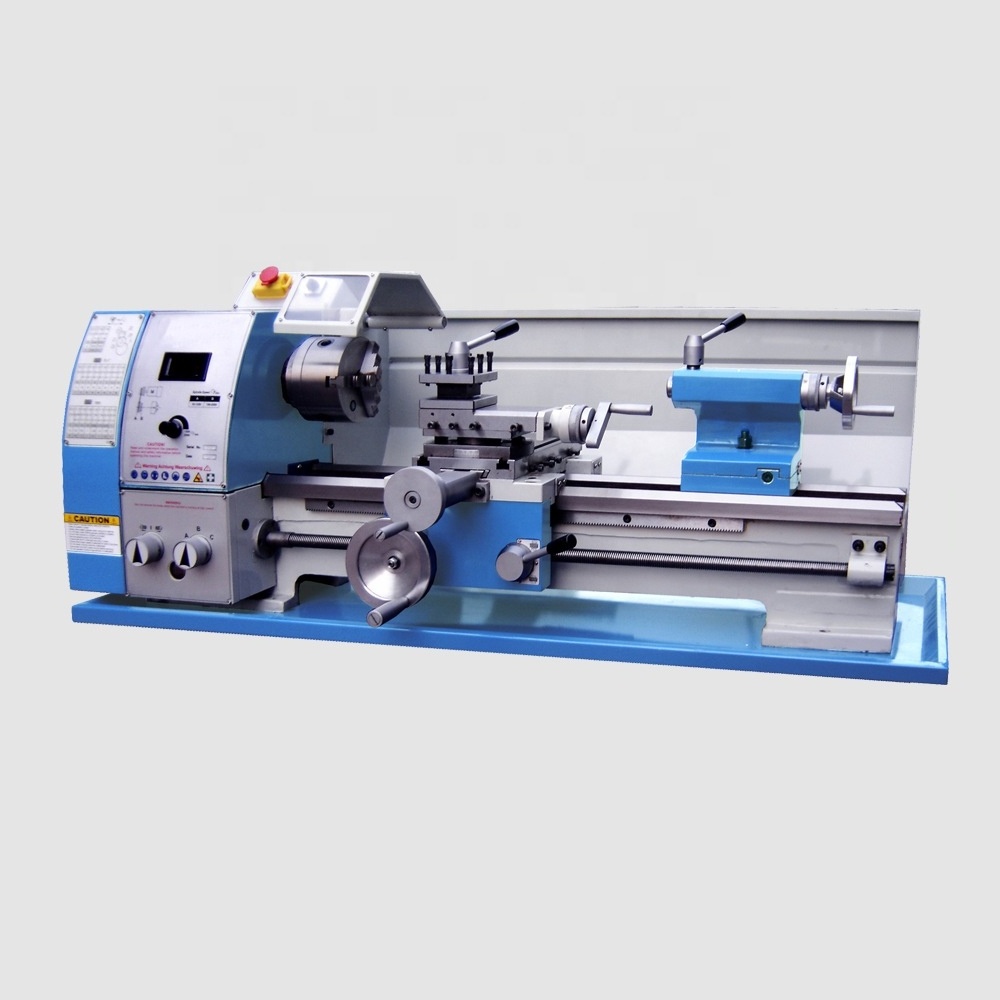

Specifications for TURN 280*700GV
|
|
|
|
Swing Over Bed
|
280mm
|
|
|
Distance Between Centers
|
700mm
|
|
|
Spindle Bore
|
26mm
|
|
|
Taper of Spindle Bore
|
MT4
|
|
|
Range Of Spindle Speeds
|
50-2500r.p.m
|
|
|
Taper Of Tailstock Quill
|
MT2
|
|
|
Metric Threads Can Be Cut
|
0.2-3.5mm
|
|
|
Inch Threads Can Be Cut
|
8-56T.P.I
|
|
|
Motor Power
|
1100W
|
|
|
Machine(NW/GW)
|
190/220kgs
|
|
|
Package Size(L*W*H)
|
1390*700*630mm
|
|
