Quick Details
-
Weight:
-
3650 KG
-
Max Mud Pump Flow:
-
75L/min
-
Max Mud Pump Pressure:
-
6MPa
-
Max Torque:
-
2235
-
Max Rotation Speed:
-
215r/min
-
Rig Weight:
-
3650kg
-
Drill rods box capacity:
-
44pcs
-
Engine Power:
-
43kW
-
Max Push & Pull speed:
-
61m/min
Quick Details
-
Place of Origin:
-
Jiangsu, China, Jiangsu, China
-
Brand Name:
-
Goodeng, Goodeng
-
Dimension(L*W*H):
-
3870*1300*1470(mm)
-
Weight:
-
3650 KG
-
Max Mud Pump Flow:
-
75L/min
-
Max Mud Pump Pressure:
-
6MPa
-
Max Torque:
-
2235
-
Max Rotation Speed:
-
215r/min
-
Rig Weight:
-
3650kg
-
Drill rods box capacity:
-
44pcs
-
Engine Power:
-
43kW
-
Max Push & Pull speed:
-
61m/min

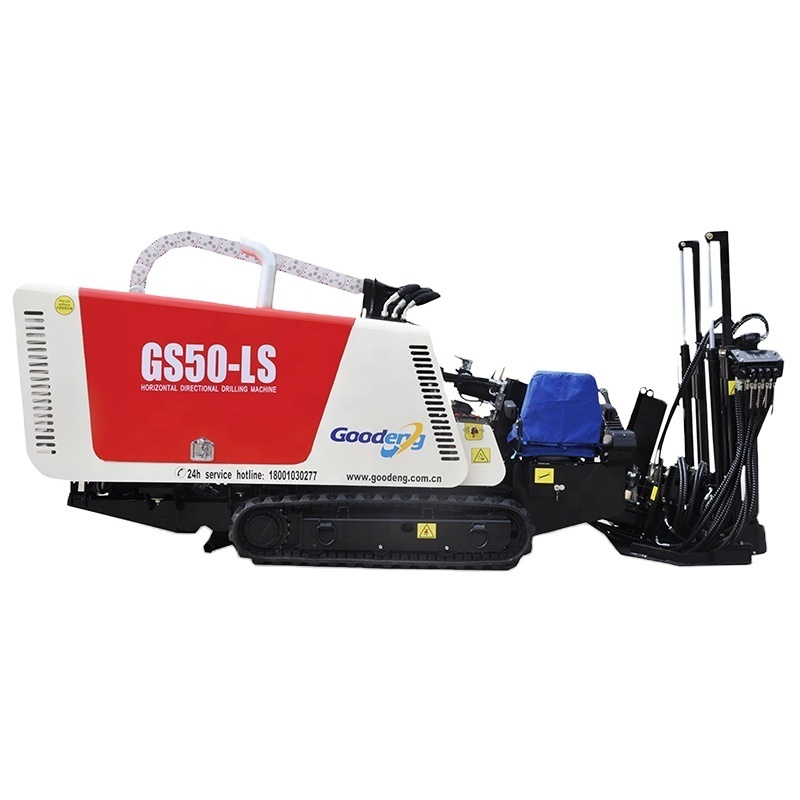

Product Overview
1.Japanese engine can support the low fuel consumption and noise .
2.The high-torque Eaton motor can provide infinitely variable speed and stable performance.
3.The drill pipe rod φ42*1800mm has 44pcs in box for smaller space.
4.Simply structure make low failure rate and easy maintenance.
5.High-efficiency load-sensitive control system and internationally advanced hydraulic components for the rotation and push & pull motors.
2.The high-torque Eaton motor can provide infinitely variable speed and stable performance.
3.The drill pipe rod φ42*1800mm has 44pcs in box for smaller space.
4.Simply structure make low failure rate and easy maintenance.
5.High-efficiency load-sensitive control system and internationally advanced hydraulic components for the rotation and push & pull motors.
Product Paramenters
|
Size(L*W*H)
|
3870*1300*1470(mm)
|
Max.Mud Pump Flow
|
75L/min
|
|
Rig Weight
|
3650kg
|
Max.Mud Pump Pressure
|
6MPa
|
|
Max.Push & Pull force
|
51kN
|
Max.Torque
|
2235N·m
|
|
Max.Push & Pull speed
|
61m/min
|
Max.Rotation Speed
|
215r/min
|
|
Engine Power
|
43kW
|
Entry Drill Angle
|
14º- 17º
|
|
Drill rod size
|
ø42*1800mm
|
Drill rods box capacity
|
44pcs
|
|
Max. Aperture Diameter
|
ø300mm
(Soil Depended) |
Max. Crossing length
|
100m
(Soil Depended) |
