Quick Details
-
Place of Origin:
-
China
-
Specification:
-
1.8 inch
-
HS Code:
-
85312000
-
Usage:
-
Indoor
-
Display Function:
-
Graphics
-
Tube Chip Color:
-
Red
-
Product name:
-
1.8 inch single digit 7 segment led display
-
display size:
-
38.0x56.0x11.0mm
-
digit height:
-
1.80 inch
-
segment color:
-
white diffused
-
surface color:
-
black or gray
-
emitting color:
-
red,yellow,blue,green,white,etc
-
OEM:
-
Yes
Quick Details
-
Application:
-
Indoor
-
Type:
-
LED
-
Panel Size:
-
38.0x56.0x11.0mm, 38.0x56.0x11.0mm
-
Place of Origin:
-
China
-
Specification:
-
1.8 inch
-
HS Code:
-
85312000
-
Usage:
-
Indoor
-
Display Function:
-
Graphics
-
Tube Chip Color:
-
Red
-
Product name:
-
1.8 inch single digit 7 segment led display
-
display size:
-
38.0x56.0x11.0mm
-
digit height:
-
1.80 inch
-
segment color:
-
white diffused
-
surface color:
-
black or gray
-
emitting color:
-
red,yellow,blue,green,white,etc
-
OEM:
-
Yes

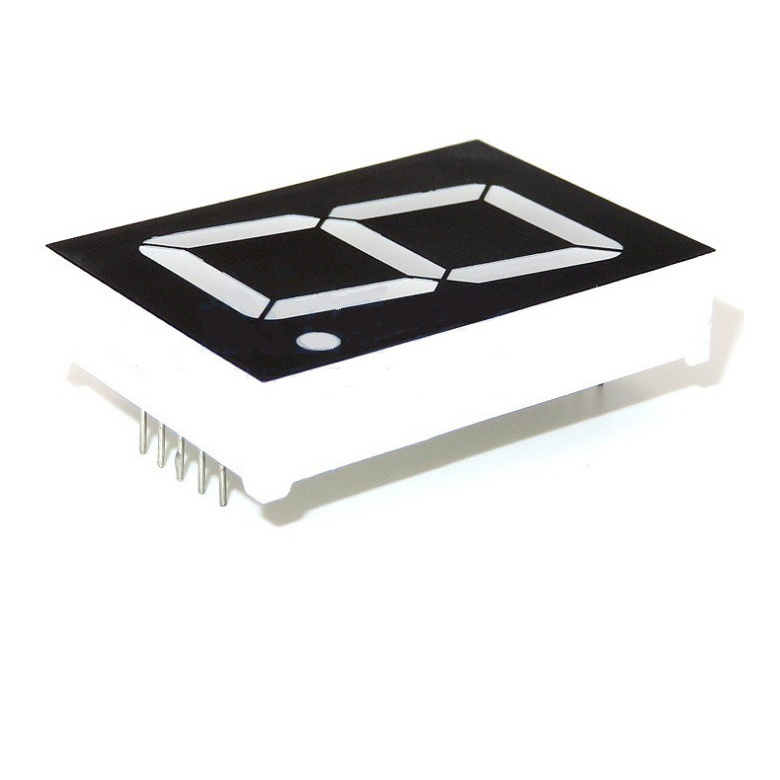

1.8 inch single digit 7 segment LED display one clock display
*Ultra segment intensity
*Wide viewing angle
*Range of colors
*Gray or black face White segment
*RoHS compliant
1.8 inch single digit display item list
Electro/Optical Characteristics If=20mA Ta=25 C
|
Part Number |
EMITTED COLOR |
Peak Wavelength (mn) |
Vf(V) |
Iv( mcd ) |
|||
|
Common Cathode |
Common Anode |
Type |
Max |
Min |
Typ |
||
|
JSD-18011AUR |
JSD-18011BUR |
AlGaInP/GaAs Super red |
630 |
2.0 |
2.5 |
30 |
60 |
|
JSD-18011AUE |
JSD-18011BUE |
AlGaInP/GaAs Ultra red |
625 |
2.0 |
2.5 |
120 |
240 |
|
JSD-18011AUA |
JSD-18011BUA |
AlGaInP/GaAs Ultra Amber |
605 |
2.0 |
2.5 |
120 |
180 |
|
JSD-18011AUY |
JSD-18011BUY |
AlGaInP/GaAs Ultra Yellow |
590 |
2.0 |
2.5 |
120 |
180 |
|
JSD-18011AUG |
JSD-18011BUG |
AlGaInP/GaAs Yellow Green |
574 |
2.0 |
2.5 |
30 |
45 |
|
JSD-18011APG |
JSD-18011BPG |
InGaN/Sic Pure Green |
525 |
3.2 |
3.8 |
450 |
600 |
|
JSD-18011AUB |
JSD-18011BUB |
InGaN/Sic Ultra Blue |
470 |
3.2 |
3.8 |
120 |
150 |
|
JSD-18011AUW |
JSD-18011BUW |
InGaN/Sic Ultra White |
x-0.31/y-0.31 |
3.2 |
3.8 |
600 |
1200 |
1.8 inch single digit display
Absolute Maximum Ratings at Ta=25 ℃
Characteristic |
Symbol |
UR |
UE |
UA |
UY |
UG |
PG |
UB |
UW |
Unit |
||
|
Pulse Forward Current Per Seg. |
I FP |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
mA |
||
|
DC Forward Current Per Seg |
I F |
30 |
30 |
30 |
30 |
30 |
30 |
30 |
30 |
mA |
||
|
Reverse Current Per Seg. |
I R |
10 |
10 |
10 |
10 |
10 |
10 |
10 |
10 |
uA |
||
|
Power Dissipation |
P D |
36 |
40 |
42 |
42 |
44 |
66 |
66 |
66 |
mA |
||
|
Operation Temperature |
T OPR |
-40 to +80 |
℃ |
|||||||||
|
Storage Temperature |
T STG |
-40 to +85 |
℃ |
|||||||||
|
Lead Soldering Temperature |
|
260 |
℃ |
|||||||||
