Quick Details
-
Finish:
-
Zinc Plated
-
Dia:
-
75/100/125/160/200mm
-
Tread width:
-
32/35/37/43/49
-
Load Capacity:
-
50-300kg
-
plate size:
-
102x84/94x62
-
hole distance:
-
80x60/74x45mm
-
screw size:
-
M12X30mm
-
bearing:
-
roller bearing
Quick Details
-
Material:
-
blue elastic rubber, elastic rubber
-
Type:
-
Stem Casters, Plate Casters, Bolt-Hole Casters
-
Place of Origin:
-
Guangdong, China
-
Finish:
-
Zinc Plated
-
Dia:
-
75/100/125/160/200mm
-
Tread width:
-
32/35/37/43/49
-
Load Capacity:
-
50-300kg
-
plate size:
-
102x84/94x62
-
hole distance:
-
80x60/74x45mm
-
screw size:
-
M12X30mm
-
bearing:
-
roller bearing

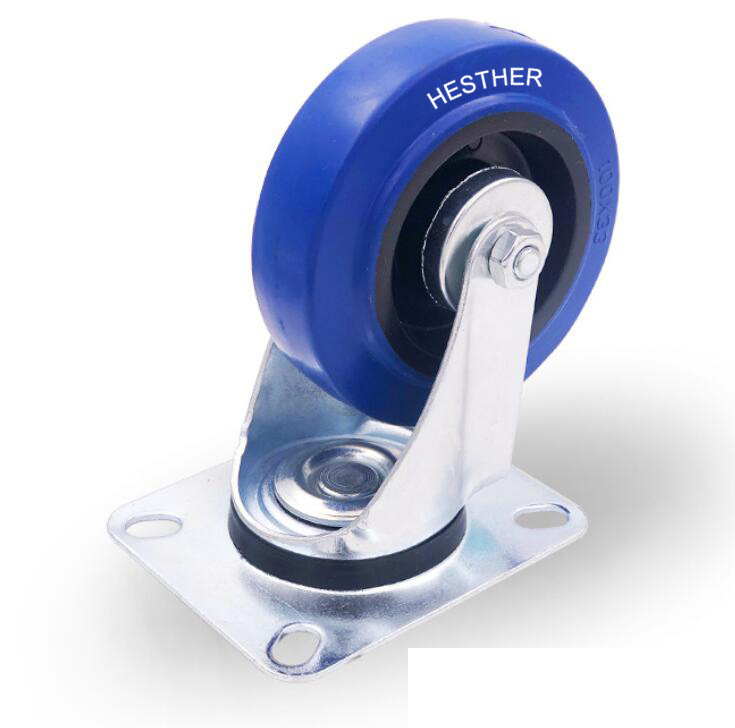

factory price elastic rubber caster blue swivel wheels for trailers
This caster has both industrial type and European type . European type caster plate is bigger and tread is wider .
Advantages:
1. 100% new material Elastic blue rubber wheel, less noise and shock absorbing
2. Durable roller bearing or ball bearings for smooth moving
3. Zinc plating fork passing 24 hours salt and spray test, anti rust for a longer period
4. European plate design with plastic ring (color can be red, black or grey)
5. OEM logo and packing
6. Quick shipping time
Technical data of European Type :
|
description |
width of tread |
overall height |
Plate size |
hole center of plate |
load capacity |
|
80mm=3'' |
35mm |
108mm |
105x85mm |
80*60mm |
100kg |
|
100mm=4'' |
36mm |
128mm |
105x85mm |
80*60mm |
150kg |
|
125mm=5'' |
36mm |
155mm |
105x85mm |
80*60mm |
200kg |
|
160mm=6'' |
48mm |
195mm |
135*110mm |
105*80mm |
350kg |
|
200mm=8'' |
48mm |
240mm |
135*110mm |
105*80mm |
400kg |
Technical data of industrial type :
|
description |
width of tread |
overall height |
Plate size |
hole center of plate |
load capacity |
|
75mm=3'' |
26mm |
97mm |
84x72mm |
60*50mm |
50kg |
|
100mm=4'' |
33mm |
130mm |
102*84mm |
80*60mm |
100kg |
|
125mm=5'' |
34mm |
155mm |
102*84mm |
80*60mm |
120kg |
|
160mm=6'' |
48mm |
195mm |
135*105mm |
105*80mm |
250kg |
|
200mm=8'' |
48mm |
235mm |
135*105mm |
105*80mm |
300kg |
