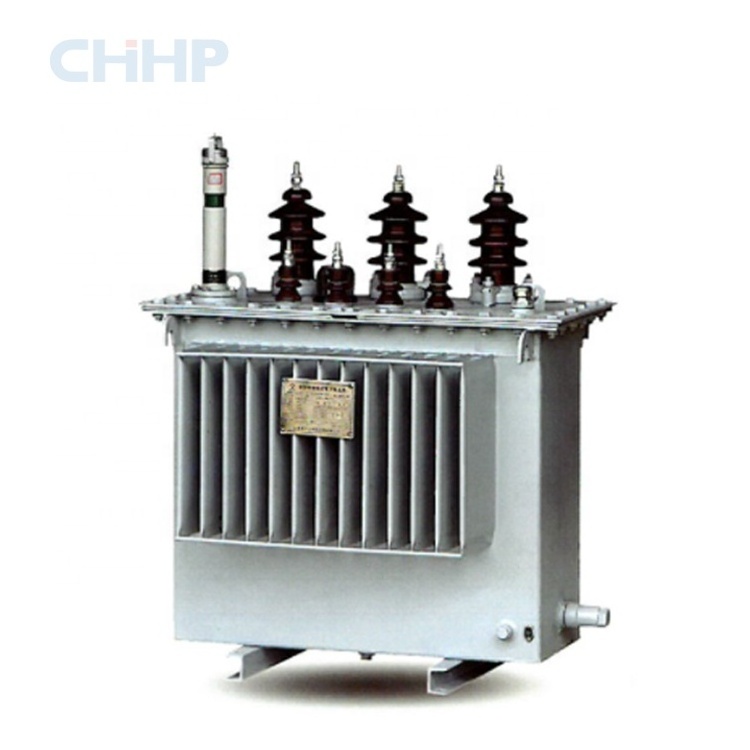

Power Transformer 100 Kva S9 10kv HV 3 Phase Transformer Oil-immersed 100kva Transformer Price 10 Hospital - 0.4 CN;ZHE CHHP

S9-M-30~2500/10 Three phase oil immersed non excitation voltage regulating fully sealed Distribution Transformer

PRODUCT DESCRIPTION

S9-M-30~2500/10

Three phase oil immersed non excitation voltage regulating fully sealed Distribution Transformer

. Kind: Outdoor Type

. Normal use Environment: Elevation less than 1000m; Temperature Range :-25 ℃ ~+40 ℃

. Especial Environment: Elevation more than 1000m; Temperature Range :-45 ℃ ~+40 ℃

. Installation Site: Nothing corrodent air, noting obvious dirty mark

Executive Standard

· GB1094.1~2-1996 Power transformer

· GB1094.3.5-2003 Power transformer

· GB1094.4-2005 Power transformer

· GB/T6451-2008 Power transformer

· GB311.1-1997 High voltage power transmission and transformation equipment insulation coordination

· GB/T6451-2008  Three-phase oil-immersed power transformer technical parameters and requirements

· The international standard IEC76

Type and Signification

Performance Characteristic

· Comparison of the series transformer and s9 transformer. no-Load Loss is reduced by an average of about 30%.

· we adopt structure of canister type or helix type at capacity rang 630kv to 2000kv for Low voltage coil ; they are high machine intensity, balance distribution, good capacity of anti-short circuit.

· we add a orientation structure, which make it don' t occur to move in the transport; accordingly add a nut in the product which makes sure the part don' t fall down in function

· The ripple gasoline rank instead of oil cabinet, sealing the cabinet cover with cabinet edge, which extends the oil service life.

· Spurting the varnish on the product after getting rig of the rust and oil mark, which make the product can used in special environment

· Using whole-seal gasoline tank, fixing release valve, signal thermometer and gas relay which make sure the product run safely. The series of product have feature of nice appearance, small size which are the idea product free fro m maintenance.

Technical Parameters

1. Load loss in the table below the diagonal values for Dyn11 connection group of products.

2. Technical parameters of 10kV distribution transformer for large capacity, size and weight data, please contact us.

3. Can provide various voltage transformer short circuit impedance, coupling mode according to the user demand.

4. Table weight and size data for reference only, are subject to change without notice.

ENTERPISE BRIEF INTRODUCTION

Haibian Power Equipment Co.,Ltd. is founded in 2009 , specialized in the development, manufacturing, and sales of high voltage power distribution equipment and transformers.With outstanding advantages, the leading SF6 load switches, high voltage ring main units, high voltage switchgears, ring main unit breaker cabinets, cable branch cabinets, and centrally installed switchgears are accredited as domestic leading products by the Zhejiang Science and Technology Department. The company owns independent import and export license and also takes part in the overseas EPC projects, with a subsidiary US-Sino joint-ventured Shanghai Haibian Electric Power Equipment Co., Ltd.

Transformer workshop

1.    HV and LV winding

2. Silico steel cutting & assembly (core)

3. Winding & core combined together

4. Wing & core wite, cable, conductor assembly

5. Heating winding & core (12Hours)

6. At the same time, make transformer shell (iron cutting welding and corrugated refrigeration panels)

7. Phosphorization transformer shell

8. Antirust paint (color is deep red)

9. Put winding & core into transformer shell

10. All parts assembly with transformer shell

11. High voltage test

12. Shell surface paint

CERTIFICATE

SHIPMENT  &  PAYMENT

FAQ

Q: Can we get a sample for reference?

A: Yes, as long as the goods are conventional type, and you will be charged sample cost plus related shipping cost. Once you place an order to us, we can return or deduct the sample cost to you.

Q: How to solve the quality problems after sales?

A: Take photos of the quality problems and send to us for our checking and confirming, we will make a satisfied solution for you within 3 days.

Q: What is the lead time?

A: The lead time depends on the quantities ordered, generally within 25-35days upon the receipt of advance payment.

Q: What is your terms of payment?

A: We accept West Union, T/T, irrevocable L/C at sight. Prefer T/T 30% deposit before production, the balance against copy of B/L.

Q: Can you print our brand on the product?

A: Yes, of course, we also do OEM to print client’s brand on the product

CONTACT US

Performance Guarantee

Once u buy the product manufactured by Haibian Power Equipment (CHHP) can get 24 months performance guranantee after delivery date, or if there is any special reques, pls do not hesitate to contact us...
