Quick Details
-
Model Number:
-
DSE-2416-CAP31-01R
-
Max. Current:
-
16A, 8A, 10A
-
Mechanical Life:
-
UL1504: 6,000 Cycles; ENEC: 10,000 Cycles
-
Protection Level:
-
IP00
-
Environmental Temperature:
-
UL1504: 0~65°C ENEC: 0~85°C
-
Conductive Material:
-
Silver alloy
-
Size:
-
37.0mmx14.0mmx11.0mm
-
Operating Force (range):
-
650 +/- 250 gf
-
Pre-travel (range):
-
7.0~7.6mm
-
Insulation Resistance:
-
50M ohm Min.
-
Contact Resistance:
-
50m Ohm Max.
-
Pole:
-
2
-
Throw:
-
4
Quick Details
-
Max. Voltage:
-
125Vac, 250Vac
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Defond
-
Model Number:
-
DSE-2416-CAP31-01R
-
Max. Current:
-
16A, 8A, 10A
-
Mechanical Life:
-
UL1504: 6,000 Cycles; ENEC: 10,000 Cycles
-
Protection Level:
-
IP00
-
Environmental Temperature:
-
UL1504: 0~65°C ENEC: 0~85°C
-
Conductive Material:
-
Silver alloy
-
Size:
-
37.0mmx14.0mmx11.0mm
-
Operating Force (range):
-
650 +/- 250 gf
-
Pre-travel (range):
-
7.0~7.6mm
-
Insulation Resistance:
-
50M ohm Min.
-
Contact Resistance:
-
50m Ohm Max.
-
Pole:
-
2
-
Throw:
-
4
Product Description

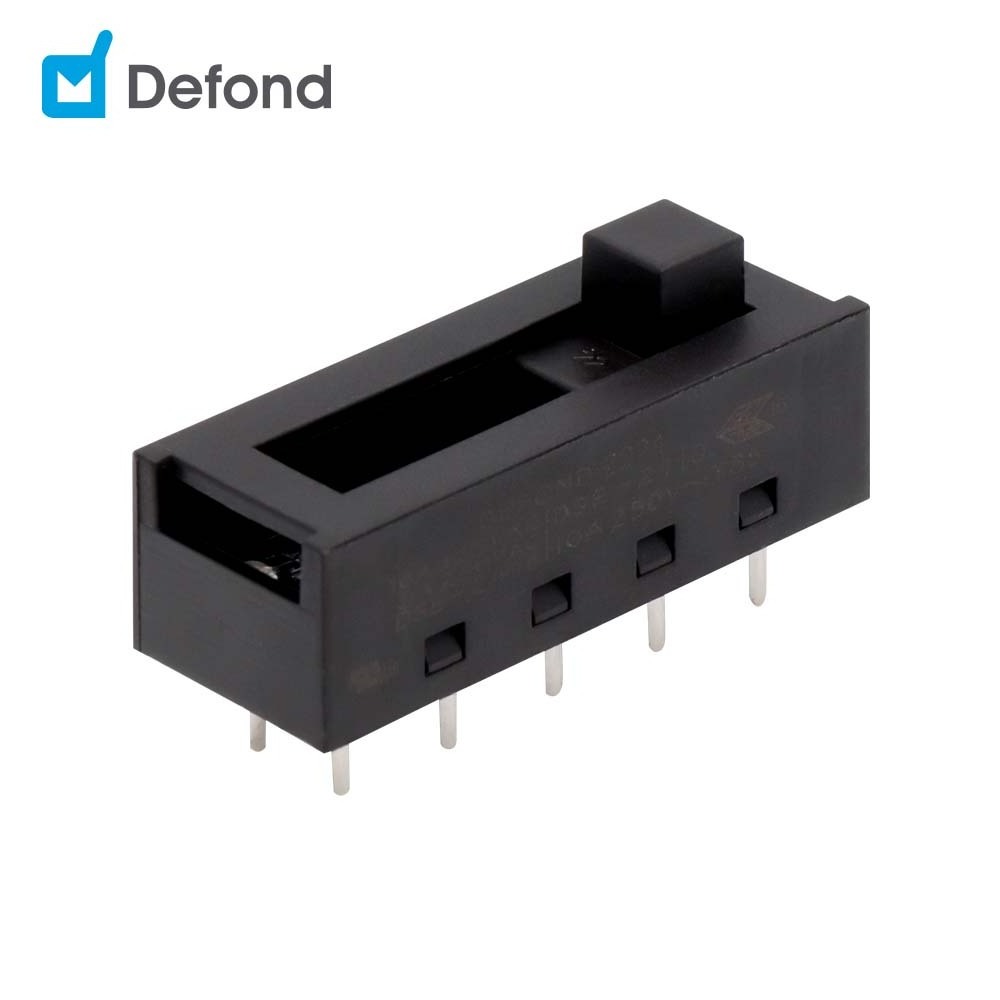

Hotselling 2P4T 10Pins 4 Way Double Row DIP Type Slide Switch For Power Tools Defond DSE-2416-CAP31-01R
Slide switches switch on/ off by moving the slider from one position to another or some in multi positions. Defond slide switches have three major contact types and come in plastic and metal case options, with all configurations of single pole single throw (SPST), single pole double throw(SPDT), double pole single throw (DPST) and double pole double throw (DPDT).
Features
-Huge endurance
-Variety of terminals and knob shapes
- Multi-Circuits options
-Variety of terminals and knob shapes
- Multi-Circuits options
Application
-Kitchenware appliances: Blender
-Beautycare appliances: Hair dryer
-Household appliances: Electric heat blanket
-Others: Lighting products
-Beautycare appliances: Hair dryer
-Household appliances: Electric heat blanket
-Others: Lighting products
