LA38 Series Button Switch
can be used for remote control in electromagnetic starters, contactors, relays and other electrical circuits with the voltage of 380V and below and the DC voltage of 230V and below, AC 50Hz (or 60Hz); The button with lamp is also suitable for the occasions where light signal indication is needed. It has passed the national CCC certification, CE certification and type approval of China Classification Society.
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
changjiang
-
Model Number:
-
LA38-**CX2/203
-
Product name:
-
10a selector push button switch
-
Mounting Hole Size:
-
22mm
-
Material:
-
flame-retardant plastic
-
Operation type:
-
manual rotation
-
Head shape:
-
handle head
-
Contact configuration:
-
1NO/1NC/2NO/2NC/1NO1NC...
-
Function:
-
Control
-
Button color:
-
black
-
Mechanical Life:
-
200,000 times
-
Electrical Life:
-
100,000 times
-
Certification:
-
CE
Quick Details
-
Protection Level:
-
IP65
-
Max. Current:
-
10A
-
Max. Voltage:
-
500V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
changjiang
-
Model Number:
-
LA38-**CX2/203
-
Product name:
-
10a selector push button switch
-
Mounting Hole Size:
-
22mm
-
Material:
-
flame-retardant plastic
-
Operation type:
-
manual rotation
-
Head shape:
-
handle head
-
Contact configuration:
-
1NO/1NC/2NO/2NC/1NO1NC...
-
Function:
-
Control
-
Button color:
-
black
-
Mechanical Life:
-
200,000 times
-
Electrical Life:
-
100,000 times
-
Certification:
-
CE
Products Description

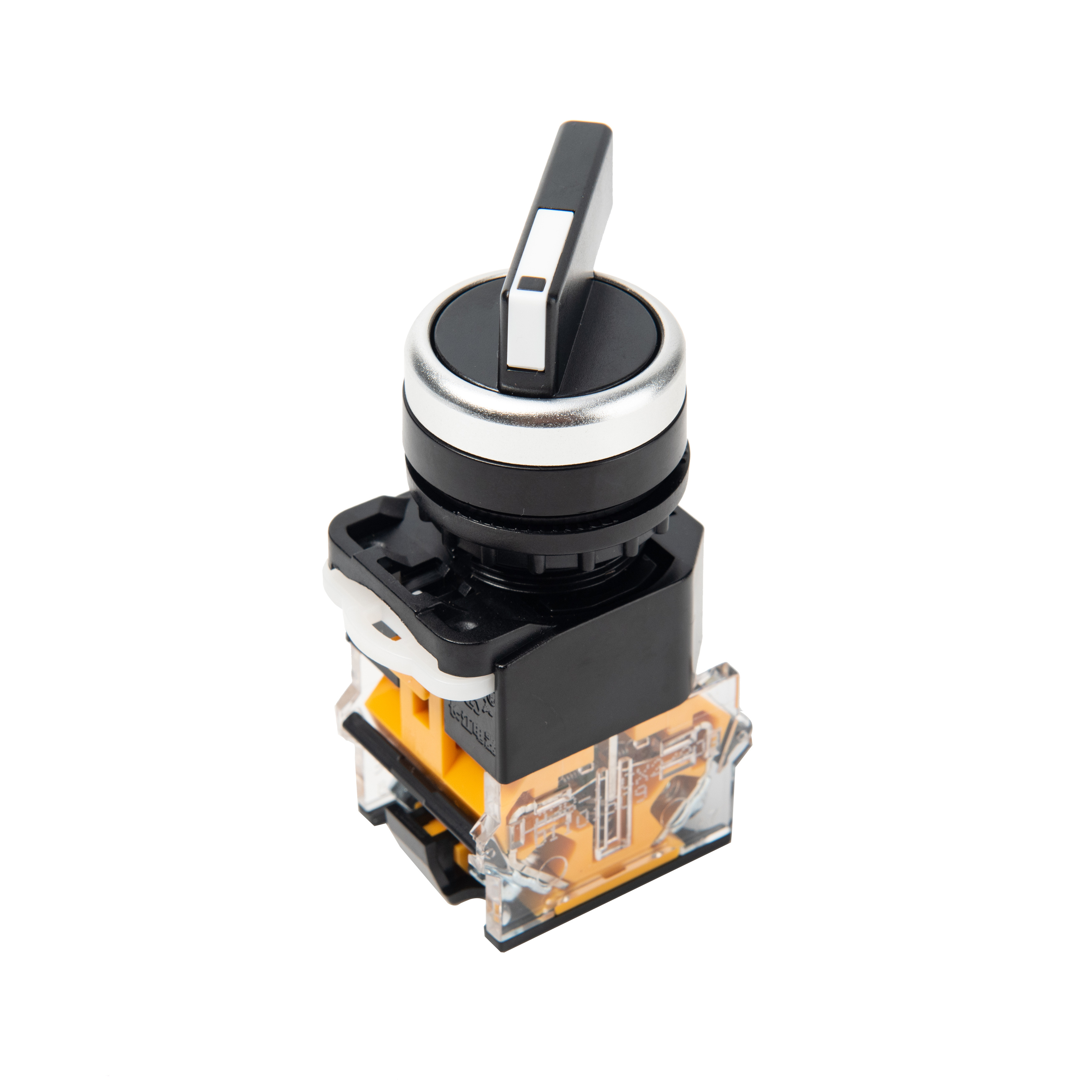

LA38 series 22mm plastic selector rotary push button switch
Details Images
Product Parameter
|
Type specification
|
LA38-**CX2/203
|
|
|
|
|
|
|||||
|
Product Name
|
2 position rotary switch
|
|
|
|
|
|
|||||
|
Products Standard
|
GB/T 14048.5
|
|
|
|
|
|
|||||
|
Operation Condition
|
Altitude height
|
Environment temperature
|
Storage
temperature
|
Relative humidity
|
Pollution class
|
Install type
|
|||||
|
|
≤2000m
|
-25℃~+55℃
|
-40℃~+70℃
|
45-85%RH
|
3
|
Ⅲ
|
|||||
|
Main technical index
|
common parameter
|
Rated insulated Voltage
|
500V
|
|
|
|
|||||
|
|
|
Front panel protection degree
|
IP54, customizable IP65
|
|
|
|
|||||
|
|
|
Withstand Voltage
|
1.89KV/5S
|
|
|
|
|||||
|
|
|
working frequency
|
50Hz
|
|
|
|
|||||
|
|
Basic parameters
|
Stipulated hot current Ith
|
10A
|
|
|
|
|||||
|
|
|
Rated working Voltage /Current
|
AC-15
|
|
DC-13
|
|
|||||
|
|
|
|
220V/5.5A
|
380V/4A
|
220V/0.45A
|
110V/1A
|
|||||
|
|
|
Electrical life
|
100000 times
|
|
|
|
|||||
|
|
|
Mechanical life
|
200000 times
|
|
|
|
|||||
