Main functions and features
● The machine employs hydraulically-driven swing beam, the steel plate welded structure, and
accumulator -based pullback cylinder with steady and reliable operation.
● Indicator-based adjustment of gap of blade is convenient and fast.
● The machine is equipped with lighting alignment device, and uses stepless control for the stroke of up
tool carrier.
● The machine uses protection fence for safe operation.
● Digital display device for size of back gauge and shearing times available.
- Product Details
- {{item.text}}
Quick Details
-
After-sales Service Provided:
-
Online Support
-
Product name:
-
used sheet metal cutting machines
-
Application:
-
Steel
-
Name:
-
1000t Aluminum Profile Extrusion Machine
-
Usage:
-
Automatic Control Operation
-
Function:
-
Stable
-
Keyword:
-
metal sheet cutting machines cnc
-
Type:
-
Semi Automatic
-
Raw material:
-
Iron Wire
-
Local Service Location:
-
United States
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
KING BALL
-
Weight (KG):
-
11000
-
After-sales Service Provided:
-
Online Support
-
Product name:
-
used sheet metal cutting machines
-
Application:
-
Steel
-
Name:
-
1000t Aluminum Profile Extrusion Machine
-
Usage:
-
Automatic Control Operation
-
Function:
-
Stable
-
Keyword:
-
metal sheet cutting machines cnc
-
Type:
-
Semi Automatic
-
Raw material:
-
Iron Wire
-
Local Service Location:
-
United States
Products Description
Products Description
CNC CONTROL SYSTEM
|

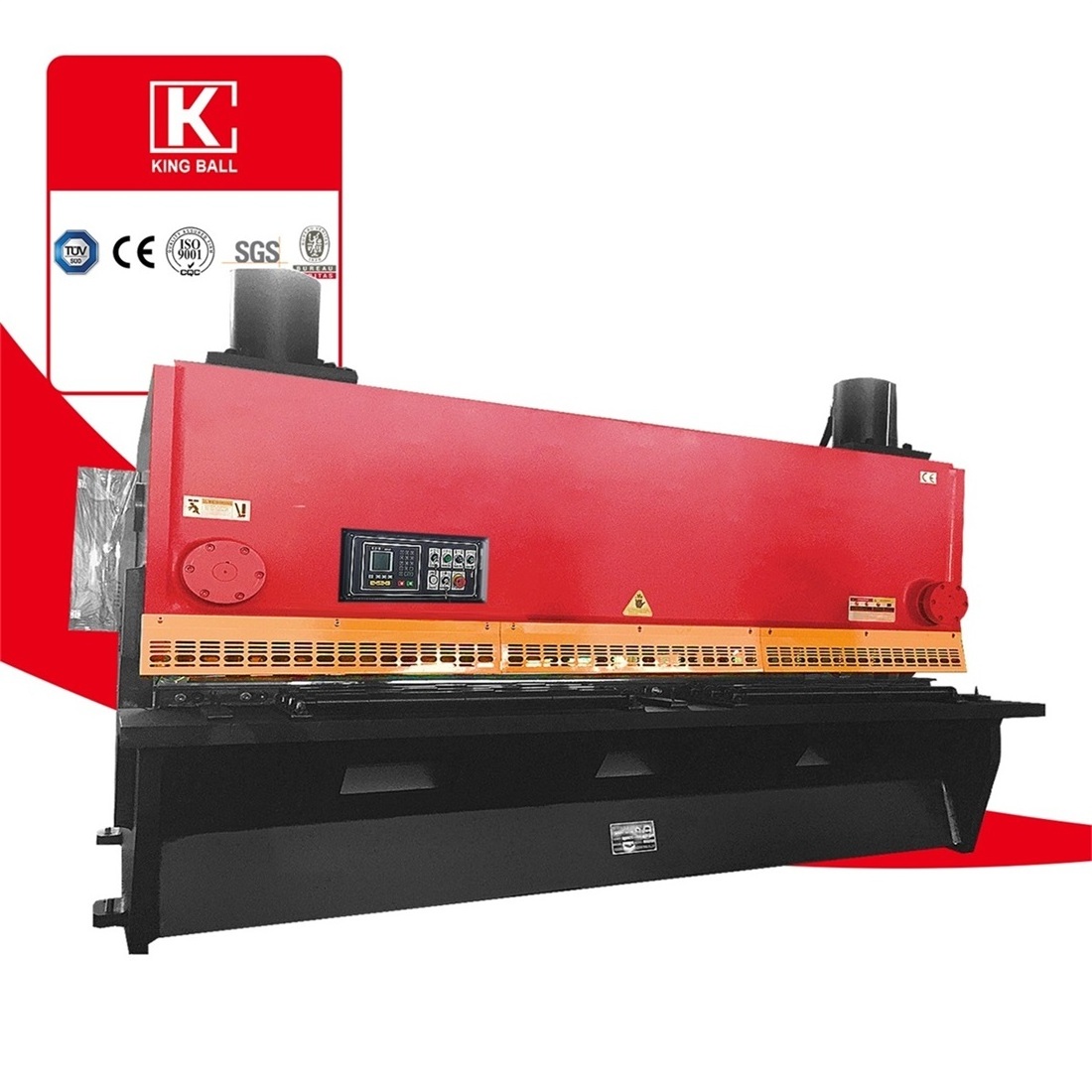

Hydraulic Swing Beam Shearing Machine
|
QC12Y-8X2500
|
QC12Y-8X3200
|
QC12Y-8X4000
|
QC12Y-8X6000
|
|
Cutting Thickness (mm)
|
8
|
8
|
8
|
8
|
|
Cutting Width (mm)
|
2500
|
3200
|
4000
|
6000
|
|
Cutting Angle (
o
)
|
1°30′
|
1°30′
|
1°30′
|
1°30′
|
|
Backgauge Range (mm)
|
20-600
|
20-600
|
20-600
|
20-800
|
|
Stroke Number (times/min)
|
≥11
|
≥8
|
≥7
|
≥5
|
|
Main Motor (kw)
|
11
|
11
|
11
|
18.5
|
|
Weight (kg)
|
5500
|
7200
|
8800
|
18000
|
|
Overall Dimensions
(LxWxH in mm) |
3180X1700X1700
|
3880X1830X1720
|
4680X1900X1750
|
6880X2260X2350
|
Details Images
QC12Y(K) Series CNC
Hydraulic Swing Beam Shearing Machine
Pneumatic Sheet Support System
Monobloc Panel Type support system:
Avoids hanging down the wide and thin sheets via pneumatic table support and provides more precise cuts.
Avoids hanging down the wide and thin sheets via pneumatic table support and provides more precise cuts.
Anti-twist System
Anti-twist system contrasts the piece warping by pushing it against the upper blade.
The unique Anti-Twist system of kingball guillotine shears consists of a series of hydraulic cylinders placed below the lower
blade, which support the sheet metal against the upper blade.
The cylinders exert a counter-pressure in proportion to the thickness, thus compensating the twist effect of the sheet.
The unique Anti-Twist system of kingball guillotine shears consists of a series of hydraulic cylinders placed below the lower
blade, which support the sheet metal against the upper blade.
The cylinders exert a counter-pressure in proportion to the thickness, thus compensating the twist effect of the sheet.
Front Feeding Table
Feeding the metal sheet automatically controlled by PLC ,the precision of the feeder is more accurate
The clamp adopts pneumatic clamp, which has reliable supporting power, wide processing range and convenient operation.
The clamp adopts pneumatic clamp, which has reliable supporting power, wide processing range and convenient operation.
Front safety fence
EMB tubing connector
Automatic blade clearance adjustment(CNC Machine)
Manual blade clearance adjustment(NC machine)
Backgauge with ball screw linear guide
Pedal switch with emergency stop, safe operation, the base with rollers easy to move.
