Quick Details
-
Model Number:
-
pt100
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Promesstec
-
Theory:
-
platinum thermal resistance
-
Output:
-
4-20ma
-
Product Name:
-
pt100 temperature sensor
-
Wire diameter:
-
0.5mm,0.4mm,0.3mm or customized
-
Ceramic length:
-
30mm-1500mm or customized
-
Wire material:
-
Platinum Rhodium
-
Tube diameter:
-
8/10/16/22/25mm or customized
-
Tube length:
-
300mm-1500mm
-
Measuring range:
-
0~1800C
-
Accuracy:
-
1.5C
Quick Details
-
Use:
-
temperature measuring
-
Mounting Type:
-
Insertion thread external attachment
-
Description:
-
cables type, pt100 rtd
-
Model Number:
-
pt100
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Promesstec
-
Theory:
-
platinum thermal resistance
-
Output:
-
4-20ma
-
Product Name:
-
pt100 temperature sensor
-
Wire diameter:
-
0.5mm,0.4mm,0.3mm or customized
-
Ceramic length:
-
30mm-1500mm or customized
-
Wire material:
-
Platinum Rhodium
-
Tube diameter:
-
8/10/16/22/25mm or customized
-
Tube length:
-
300mm-1500mm
-
Measuring range:
-
0~1800C
-
Accuracy:
-
1.5C

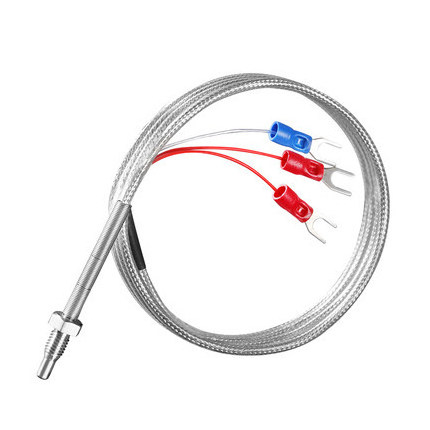

RTD temperature sensor is the use of metal platinum (pt) resistance and temperature with a certain functional relation of temperature sensor,Due to its high accuracy, large measuring range, good reproducibility and stability, etc. That are widely used in medium temperature (-50℃ ~ 250 ℃) in the range of temperature measurement.
Feature s
1.High precision, good stability;
2.High sensitivity, good linear;
3.Response time short,good compatibility;
4.Compact structure, easy installation, waterproof good
|
|
Graduation |
Tolerance class |
|||
|
I |
II |
||||
|
Tolerance value |
Measuring range°C |
Tolerance value |
Measuring range°C |
||
|
WRNK |
K |
±1.5°C |
-40~+375 |
±2.5°C |
-40~+333 |
|
±0.004|t| |
375~1000 |
±0.0075|t| |
333~1200 |
||
|
WRMK |
N |
±1.5°C |
-40~+375 |
±2.5°C |
-40~+333 |
|
±0.004|t| |
375~1000 |
±0.0075|t| |
333~1200 |
||
|
WREK |
E |
±1.5°C |
-40~+375 |
±1.5°C |
-40~+333 |
|
±0.004|t| |
375~800 |
±0.004|t| |
333~900 |
||
|
WRFK |
J |
±1.5°C |
-40~+375 |
±1.5°C |
-40~+333 |
|
±0.004|t| |
375~750 |
±0.004|t| |
333~750 |
||
|
WRCK |
T |
±1.5°C |
-40~+125 |
±1°C |
-40~+133 |
|
±0.004|t| |
125~350 |
±0.0075|t| |
133~1000 |
||
|
WRPK |
S |
±1°C |
0~+1100 |
±2.5°C |
0~600 |
|
±[0.003(t-1100)] |
1100~1600 |
±0.0025|t| |
600~1600 |
||
