BWX None Sparking Type
Explosion-Proof Plug Socket

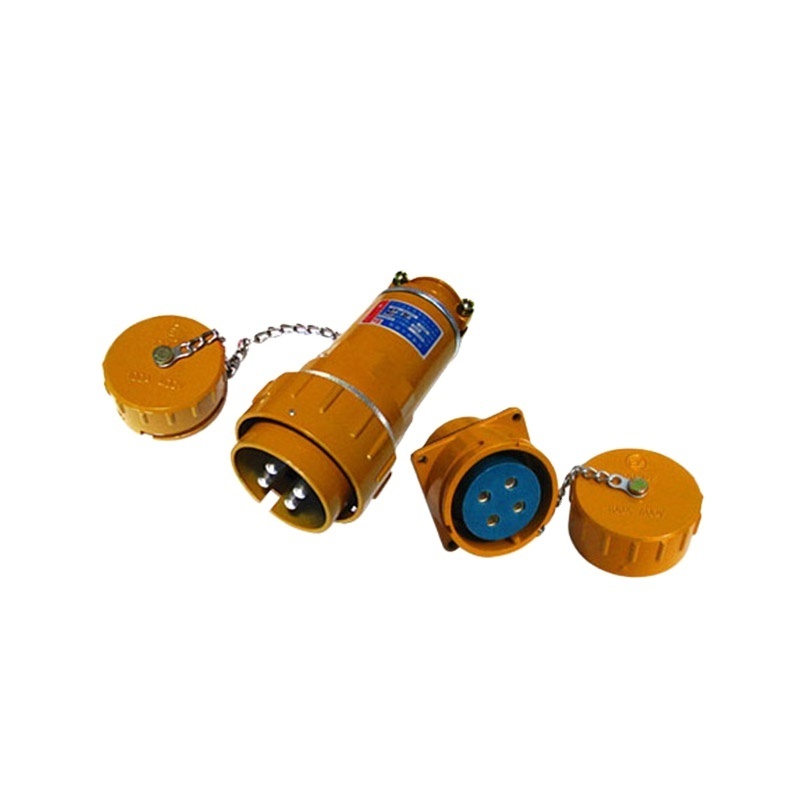

BWX series explosion-proof plug sockets are widely used in the field of mobile power plant and electrical connection between the cable and the load; widely used in petroleum, chemical industry, research, defense, electricity, transportation and other fields. The plug and socket shell using aluminum alloy, the contract body surface sliver plating with the mode of pressure contact connection. It has the characteristics of plug fast, easy wiring, electrical access to reliable, good sealing and insulation, impact shock waterproof and dustproof.
1
,Product Type Specifications Classification
- plug and socket plug divided into mobile, fixed socket, portable socket three types.
- The rated voltage of plug and socket are 250V or 400V
- The rated electric current of plug and socket are 15A,32A,60A,100A,150A,200A,250A,300A.
2
.Shape and installation dimensions
1.
Explosion plug Mounting dimensions
(mm)
|
Rated electric current
|
15A |
30A |
60A |
100A |
150A |
200A |
300A |
|
L |
132 |
140 |
150 |
170 |
195 |
195 |
220 |
|
D |
44 |
57 |
64 |
80 |
85 |
85 |
90 |
2.Explosion plug Mounting dimensions
(mm):
1
.
Fixed base type socket installation dimension
|
Rated electric current
|
15A |
30A |
60A |
100A |
150A |
200A |
300A |
|
L |
55 |
55 |
68 |
83 |
92 |
102 |
102 |
|
D |
42 |
57 |
64 |
80 |
85 |
85 |
90 |
|
P |
42 |
51 |
58 |
72 |
74 |
74 |
80 |
|
Q |
32 |
42 |
47.5 |
60 |
64 |
64 |
70 |
|
d |
32 |
43 |
48 |
60 |
64.5 |
64.5 |
70 |
|
K |
4.5 |
4.5 |
4.5 |
5.5 |
5.5 |
5.5 |
5.5 |
3.Mobile hanging socket installation dimension (mm)
|
Rated electric current
|
15A |
30A |
60A |
100A |
150A |
200A |
300A |
|
L |
130 |
147 |
163 |
180 |
205 |
205 |
|
|
D |
64 |
83 |
92 |
106 |
112 |
112 |
|
|
Q |
52 |
55 |
62 |
76 |
79 |
79 |
|
|
K |
5.5 |
6.5 |
8.5 |
8.5 |
8.5 |
8.5 |
|
4.Mobile cut though socket installation dimension (mm)
|
Rated electric current
|
15A |
30A |
60A |
100A |
150A |
200A |
300A |
|
L |
132 |
145 |
160 |
180 |
205 |
205 |
220 |
|
D |
44 |
57 |
64 |
80 |
85 |
85 |
90 |
3 .Connection method
- Connect the cable from the pressure line screw penetration,Strip the insulation layer according to pin (hole) installed length,can be soldered or crimped.
- Verify that the cable welding or pressure followed correctly. The pin (holes) into the insulator.
- Verify that the zero line (N) must be inserted in the corresponding insulator (N) Hole.
4 .Normal operating conditions
1.Altitude does not exceed 5000m
2.The ambient temperature is low -40 ° C.
5 .Caution
This series of three-phase four-pole, also for two-phase or single-phase power plugs, sockets use .
- The explosion-proof plugs and sockets (present standard), can be used in different spatial positions as needed.
When using the plug into the socket, tighten the lock only after power, should not live insertion; but after emergency lock releasable connection under full load, quickly pull the plug so quickly cut off the power.
