- Product Details
- {{item.text}}
Quick Details
-
Panel:
-
42inch TFT lcd screen&LED light
-
CPU:
-
Allwinner A20/Intel I3,5,7
-
Memory:
-
DDR3 1GB
-
Aspect Ratio:
-
16:09
-
Bulit in Storage:
-
4GB
-
Operating System:
-
Android 4.2/Windows
-
Material:
-
fram/base aluminum alloy steel,rear side cold roll steel sheet
-
working temperature:
-
0-50°C
-
Update:
-
USB/TF/MMC/lav
-
Certificate:
-
CE, FCC, RoHS
-
Viewing Angle:
-
89/89/89/89
-
Pixel Pitch:
-
0.4845(H)*0.4845 (V)
-
Contrast Ratio:
-
3000:1
-
Brightness:
-
500cd/m2
-
Response Time:
-
6ms
-
Input Voltage:
-
AC100~240V 50 /60 HZ
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Zhongxin
-
Model Number:
-
ZX-N242
-
Panel:
-
42inch TFT lcd screen&LED light
-
CPU:
-
Allwinner A20/Intel I3,5,7
-
Memory:
-
DDR3 1GB
-
Aspect Ratio:
-
16:09
-
Bulit in Storage:
-
4GB
-
Operating System:
-
Android 4.2/Windows
-
Material:
-
fram/base aluminum alloy steel,rear side cold roll steel sheet
-
working temperature:
-
0-50°C
-
Update:
-
USB/TF/MMC/lav
-
Certificate:
-
CE, FCC, RoHS
-
Viewing Angle:
-
89/89/89/89
-
Pixel Pitch:
-
0.4845(H)*0.4845 (V)
-
Contrast Ratio:
-
3000:1
-
Brightness:
-
500cd/m2
-
Response Time:
-
6ms
-
Input Voltage:
-
AC100~240V 50 /60 HZ

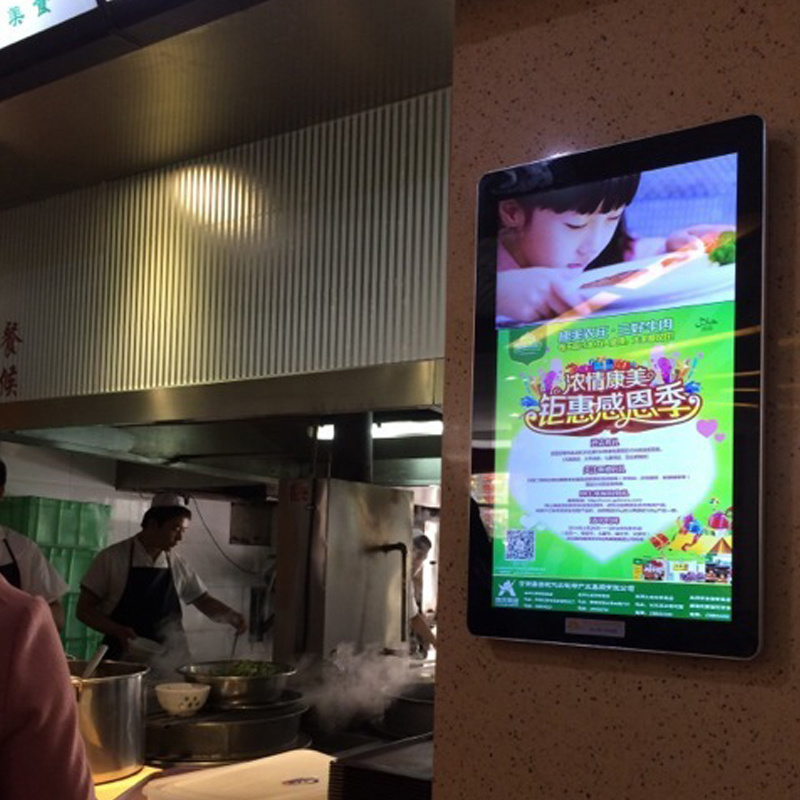

Advertising Digital Signage Player used for restaurant menu boards
| Panel Parameter | |
| Panel Size | 42" |
| Model No | ZX-N342 |
| Panel Brand | LG/Samsung/AUO/BOE etc |
| Installation | Floor stand, indoor |
| Panel Type | LCD screen & LED backlight |
| Standard Color | Black |
| Max Resolution (pixel) | 1920(RGB)*1080(FHD) |
| Aspect Ratio | 16:09 |
| Dot Pitch(mm) | 0.165*0.4845(W×H) |
| Display Color | 16.7M(8bit) |
| Brightness | 500cd/m2 |
| Contrast Ratio | 3000:1(Typical) |
| View Angle | 89°/89°89°/89°(Typical) |
| Response Time | 6ms(Typical) |
| Technical Specification | |
| Frame material | Metal case, aluminum alloy frame,rear side cold roll steel sheet |
| Remote Controller | IR Remote Controller |
| Colored System | PAL/NTSC/Auto-detecting |
| Menu Language | Multiple language,English(Default) |
| Speakers | 2×5W |
| Noise Reduction | Yes |
| Voltage Frequency | 100V-240V AC |
| Horizon Frequency | 50/60Hz |
| Power Consume (Max) | ≤255W |
| Working Temperature | 0°C~50°C |
| Working Humidity | 10% - 90% no condensation |
| Storage Temperature | -20°C - 80°C |
| Storage Humidity | 85% no condensation |
| Operating System(Android for example) | |
| Android CPU(Standard) | Dual Core Allwinner A201.5GHz |
| Optional CPU | Rockship RK3188 quad-core 1.6GHz |
| Memory | DDR3 1GB |
| Built-in Storage | 4GB FLASH for A20,8G for RK3188, Support TF card expansion |
| Update | USB/SD/WIFI/LAN/3G/4G |
| Touch Funcion | Optional |
| Touch sensor | capacitive/infrared |
| Touch surface | 9H Anti-glare Tempered Glass |
| Difference between network and Basic version | |
| Network Version | Basic Version |
| Android OS 4.2/Windows all in one Optional | Mstar solution |
| TF/SD/USB | SD/USB |
| WIFI/RJ45 (3G/4G option) | No network service |
| HDMI output | No HDMI output |
| HDMI/LVDS output (VGA option) | LVDS output |
| HDMI input (option) | |
| Update contents by USB/SD/WIFI/RJ232/PC/3G/4G | Update contents by USB/SD |
| Infrared or capacitive touch(Option) | Touch is not supported |
| Support software installing application | Application is not supported |
Features Highlight:
1. The 42" Advertising Player has wall mount, stand floor, indoor outdoor touch no touch android windows versions,
2.We have two network version, the Android Operate System and the Windows Operate System
3.The CPU of the Android Operate System has two configuration, Allwinner A20, and RK3188
4.The CPU of the Windows Operate System has several configurations, Intel 1037U and Intel I3/I5/I7
5. USB/SD/TF/MMC card is available to update and store the content of the player,
6. PC is available to updated the content of all the ternminals,
7.Material support: video(1080P),music,picture,txt,ppt,excel,word,pdf and webpage,etc
8.WIFI/ 3G/4G is available to receive the newest update everyday at any time;
9.The front of the player screen is covered with 9H tempered glass, the frame is aluminum alloy, base is metal, rear panel is cold roll steel sheet,
10. Touch screen is optional, touch sensor can be capacity and infrared, normally default capacitive,touch surface is 9H tempered glass
11. Automatic startup and shutdown , if there is no single input, it will automatically enter the standby mode;
12. Vedio/Audio output: support CVBS Vedio output and the right and left sound channel output;
13.Support a variety of vedio and image format;
14. The user can real-timely monitor the working condition of all terminals through server (Real-timely grab any broadcast vedio, pictures, captions of terminals,
15. Support split screen, such as video, logo, date, week, news, weather, subtitles area, etc, and all of them can be displayed on the terminal at the same time
