Quick Details
-
Model Number:
-
M2-7-86 Inch no camera
-
Weight:
-
83kg
-
Aspect Ratio:
-
2000:1
-
Packing Dimension:
-
2092*215*1319mm
-
Product Dimension:
-
1952*1152.5*89.1 mm
-
Product name:
-

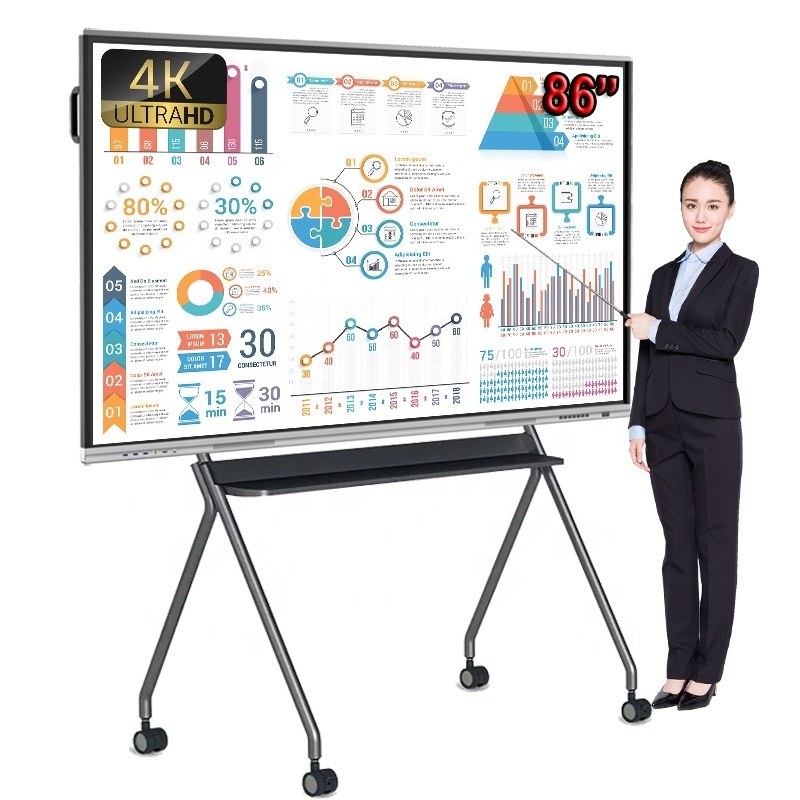

86 Inch Touch Screen Interactive Flat Panel Smart White board
-
Surface:
-
Wiredrawing Aluminum+Tempered glass
-
Touch screen:
-
20 Point IR Touch panel
-
Brightness:
-
450cd/m2 (Brightness can be customized)
-
Installation Way:
-
Wall mounted (Floor stand Optional)
-
Panel brand:
-
Brand New BOE / CSOT / LG Optional
-
Operating system:
-
Android 8.0 and above+Win7/10/11 Optional
-
Certificate:
-
CE/FCC/ROHS
-
Warranty:
-
Standard 1 Year
-
Application:
-
Classroom, Training Room, Meeting Room, Home etc..
Quick Details
-
Panel Size:
-
1870.2*1051.2 mm
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GeeKing / OEM ODM
-
Model Number:
-
M2-7-86 Inch no camera
-
Weight:
-
83kg
-
Aspect Ratio:
-
2000:1
-
Packing Dimension:
-
2092*215*1319mm
-
Product Dimension:
-
1952*1152.5*89.1 mm
-
Product name:
-
86 Inch Touch Screen Interactive Flat Panel Smart White board
-
Surface:
-
Wiredrawing Aluminum+Tempered glass
-
Touch screen:
-
20 Point IR Touch panel
-
Brightness:
-
450cd/m2 (Brightness can be customized)
-
Installation Way:
-
Wall mounted (Floor stand Optional)
-
Panel brand:
-
Brand New BOE / CSOT / LG Optional
-
Operating system:
-
Android 8.0 and above+Win7/10/11 Optional
-
Certificate:
-
CE/FCC/ROHS
-
Warranty:
-
Standard 1 Year
-
Application:
-
Classroom, Training Room, Meeting Room, Home etc..
Why Choose Us
- Our Advantages -
1.
Strong OEM/ODM manufacturing capability:
8 Years Focus On Commercial Display One-stop Solutions,
14,000㎡ Factory Floorspace;
Production
capacity
of 500 products per day;
2
.
Customized
MOQ=1
pcs:
From simple logo and packaging customization to complex product hardware and software solution design;
3.
Top 1
in large size shipments in China:
For products with the size of 100 inches and above, we have great advantages, and the shipment volume is
among the top three in China;
4.
Two times
aging test:
During the production process, aging at 40 ℃ for 2 hour, and aging at room temperature for 4-8 hours after
offline.
We don't make brand, we make your brand better.
Product Description
Customized All In One 65 75 86 98 Inch Electronic Whiteboard Interactive Board Smart Digital Board For Office Meeting /
New Design Ultra Thin 86 Inch 4K Android OPS Interactive Flat Panel Multi Touch Screen Digital Smart Whiteboard For Meeting
Interactive board:
Ultra high 4K resolution，Sensitive 20 points IR touch，Built in professional whiteboard software，Professional Anti-Glare glass.
Custom All In One Learning Interactiva Pizarra 86” Smartboard Teaching Mobile Portable Smart White Board Interactive Whiteboard
Wireless Share:
Smart board supports phone pc tablet up to 4 users to screen cast simultaneously via Airplay and E-share, or by connecting in via H-DMI. With your screen cast, you can annotate as needed, share via video conferencing, or screenshots.Supports multi-person and multi-device editing and sharing on the 4K UHD interactive board in real-time.
Dual System:
Open ecosystem allows you to choose whichever apps are best for you and your organization. Interactive board have dual systems, Android 11 and windows 10, you can use existing Zoom, Google Meet, Microsoft Teams, Webex and other popular 3rd party video conferencing meetings .
|
Size (inch)
|
Area (
㎡
)
|
Persons
|
L*W*H (mm)
|
|
65
|
20-30
|
20
|
1486.08*901.26*88.9
|
|
75
|
30-40
|
35
|
1708*1026*89.1
|
|
86
|
50-80
|
50
|
1954.44*1165.21*89.1
|
|
98
|
60-120
|
100
|
22.18.24*1318.1*100.81
|
Specification
|
Product Name
|
86 Inch All In One Interactive Smart Whiteboard For Conference & Education
|
|
|
Dual System
|
|
|
|
Windows 10 OS
|
Intel core i3 (i5/i7 optional)
|
|
|
|
Memory 4G (8G/16G optional)
|
|
|
|
Hard Disk: 128G (256G/512G/1T optional)
|
|
|
Android OS
|
Quad core, 3G RAM(1G/2G/4G/8G Optional); 32G ROM(8G/16G/32G/64G Optional)
|
|
|
|
Android 7.0/8.0/9.0 version (Android 10 11 Optional)
|
|
|
LCD Panel
|
|
|
|
Size
|
86 inch (65 inch / 75 inch / 85 inch / 98 inch 110 inch Available)
|
|
|
Panel Brand
|
Brand New Gage-A screen BOE ( LG、BOE、CSOT、AUO optional )
|
|
|
type
|
TFT-LCD S-PVA
|
|
|
Resolution
|
3840 × 2160 (UHD) @60hz, 4K UHD screen
|
|
|
Brightness
|
450 cd/m²
|
|
|
Ratio contrast
|
2000:1
|
|
|
Visual Angle (horizontal/vertical)
|
178°/178°
|
|
|
Response time
|
8ms
|
|
|
Visual area(mm)
|
1870.2(W)×1051.2 (H) mm
|
|
|
Color gamut (NTSC)
|
72%
|
|
|
Backlight
|
WLED
|
|
|
display scale
|
16:9
|
|
|
Response time
|
＜8ms
|
|
|
Life
|
>60000H
|
|
|
Infrared touch characteristic
|
|
|
|
Touch the specifications
|
Infrared touch frame
|
|
|
glass
|
4mm tempered glass
|
|
|
Glass transmittance
|
> 88% (higher transmittance depends on glass surface treatment technology such as AR/AG)
|
|
|
Object induction number (IR)
|
Touch at 20
|
|
|
Number of infrared induction lines (W D)
|
32767 × 32767
|
|
|
Positional accuracy
|
More than 90% of the touch area is 2mm
|
|
|
The interface definition
|
USB 2.0(Full speed)
|
|
|
Touch the strength
|
Zero pressure touch
|
|
|
The light resistance
|
It has light resistance
|
|
|
Induction life
|
6 million times
|
|
|
The response time
|
＜8ms
|
|
|
The power supply mode
|
Full duplex usb-powered DC +5V up to 500mA
|
|
|
Switching power supply
|
|
|
|
Power consumption (typical value)
|
AC100-240V~(+/-10%),50/60Hz
|
|
|
Standby power consumption
|
≤ 0.5W
|
|
|
The Power
|
≤ 330W
|
|
|
Switching power supply
|
European standard 220V two - phase three - wire system
|
|
|
Mechanical specification parameters
|
|
|
|
The net weight
|
68.5kg
|
|
|
Gross weight
|
85kg
|
|
|
Bare machine outline size (W x D x H)
|
1952*1152.5*89.1 mm
|
|
|
Package size (W x D x H)
|
2092*215*1319 mm
|
|
|
Shell material (face frame/back shell)
|
Plastic/Sheet metal
|
|
|
Shell color (face frame/back shell)
|
black
|
|
|
To protect the glass
|
4mm toughened glass/level 7 earthquake resistant
|
|
|
Type of installation
|
Supports/wall hangers
|
|
|
The cooling way
|
Temperature-controlled fan dissipates heat
|
|
|
The environment
|
|
|
|
Working temperature
|
0℃~50℃
|
|
|
Working humidity
|
20%~80%(No condensation)
|
|
|
Storage temperature
|
-20℃~60℃
|
|
|
Store humidity
|
10%~90%(No condensation)
|
|
|
Display mode
|
S-ips, often black display, transmission
|
|
|
Maximum service time (hours/day)
|
24 hours
|
|
|
Features
|
|
|
|
The speaker
|
2×8Ω/5W(built in)
|
|
|
Support for input mode
|
Stylus writes keyboard
|
|
|
The attachment
|
|
|
|
The user manual
|
Manual, warranty card, certificate of conformity
|
|
|
cable
|
The power cord
|
|
|
Others (optional accessories)
|
Remote control, base/bracket, WiFi
|
|
2023 OEM Customized 4K HD Smart White Board Interactive Flat Panel Board Digital Smartboard Smart Whiteboard 65 75 85 86 98 Inch
/
OEM Low Factory Price 86 inch Interactive Flat Panel Multi Touch Screen Interactive Smart Board Whiteboard for School Classroom
Packing & Delivery
We are working with reliable shipping companies,you order will be delivered to your address on time! We can also ship out the goods to your shipping forwarder if requested,we are more flexible!
Global Transportation: We will find out the BEST logistics solutions for you!
1. DHL / UPS / FedEx / TNT, Door-to-Door;
2. By Air or by Sea, for FCL; Airport / Port receiving;
3. Customers Specifying Freight Forwarders or Negotiable Shipping Methods;
We choose the best and safe packaging material to make sure your orders won’t be damaged during delivery.
Global Transportation: We will find out the BEST logistics solutions for you!
1. DHL / UPS / FedEx / TNT, Door-to-Door;
2. By Air or by Sea, for FCL; Airport / Port receiving;
3. Customers Specifying Freight Forwarders or Negotiable Shipping Methods;
We choose the best and safe packaging material to make sure your orders won’t be damaged during delivery.
