Quick Details
-
Dimension(L*W*H):
-
5700*2130*2200mm
-
Weight:
-
3830 KG
-
Marketing Type:
-
New Product 2022
-
Mobility:
-
crawler
-
Name:
-
dth underground drill rigs
-
Engine:
-
Yuchai
-
Drill Pipe:
-
60 X 3,000 mm
-
Rotation Torque (Max.):
-
1950 N.m
-
Working Pressure:
-
0.7 - 2.5 Mpa
-
F.A.D:
-
8 - 20 m3/min
-
Feed Force:
-
15KN
-
Pull Up Force:
-
25KN
-
Tramming Speed (Max.):
-
2.5 km/h
-
Gradeability:
-
25°
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Hengwang
-
Voltage:
-
380V/220V/110V
-
Dimension(L*W*H):
-
5700*2130*2200mm
-
Weight:
-
3830 KG
-
Marketing Type:
-
New Product 2022
-
Mobility:
-
crawler
-
Name:
-
dth underground drill rigs
-
Engine:
-
Yuchai
-
Drill Pipe:
-
60 X 3,000 mm
-
Rotation Torque (Max.):
-
1950 N.m
-
Working Pressure:
-
0.7 - 2.5 Mpa
-
F.A.D:
-
8 - 20 m3/min
-
Feed Force:
-
15KN
-
Pull Up Force:
-
25KN
-
Tramming Speed (Max.):
-
2.5 km/h
-
Gradeability:
-
25°
Hengwang hard rock drilling rig 2024 new product gold mining drilling rig rock drilling machine with compressor
Product Description

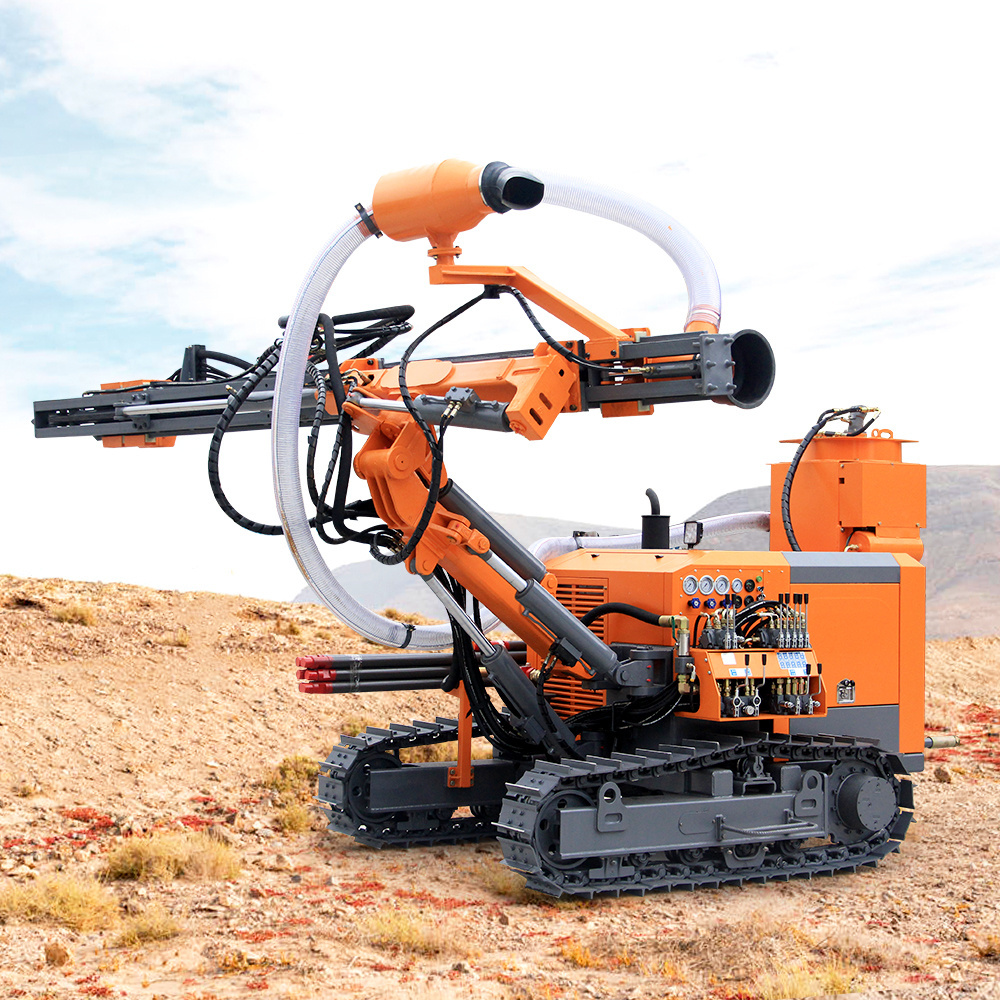

HW916/916-1 Separated DTH Surface Drill Rig is equipped with dual motor rotary head and rotary speed adjustable mull, way valve.The rotary torque can reach 1950N m, which meets the requirements of 76 drill pipe and 130 hole diameter. The rotation speedcan be up to 150 rpm, which meets the needs of some customers for high-speed drilling in soft rock formations. At the same time,HW416 series models are equipped with engineering crawler and plunger motor as standard. which makes the climbing ability strongerand the quality more stable and reliable This model is the highest configuration product of its kind.
Features:
* 1. With larger displacement single motor,compact size and large rotation torque,the rotary head adjustable according to different work conditions and requirement,greatly increasing drilling efficiency.Hole range up to 127mm now.
* 2. All controls integrated on the control panel for convenient operation,higher work efficiency,safer and more comfortable operation.
* 3. Piston tramming motor,special processes casted track shoe for stronger tramming traction force and more stable quality.
Features:
* 1. With larger displacement single motor,compact size and large rotation torque,the rotary head adjustable according to different work conditions and requirement,greatly increasing drilling efficiency.Hole range up to 127mm now.
* 2. All controls integrated on the control panel for convenient operation,higher work efficiency,safer and more comfortable operation.
* 3. Piston tramming motor,special processes casted track shoe for stronger tramming traction force and more stable quality.
Technical Parameter
|
HW916/916-1Separated DTH Surface Drill Rig
|
|
|
||
|
Rig Model
|
Power
|
Rated Power
|
||
|
|
Yuchai |
50kW |
||
|
|
Yuchai YC4DK80 |
58kW ( Dust collection system as standard equipment) |
||
|
General Specifications
|
|
|
||
|
Drill Pipe Sizes
|
|
60*3000 mm
|
||
|
Hole range
|
|
90-127 mm
|
||
|
Rotation torque (Max.)
|
|
1,950 N.m
|
||
|
Rotation Speed
|
|
0-150 rpm
|
||
|
Feed Force
|
|
15 kN
|
||
|
Pull Up Force
|
|
25 kN
|
||
|
Feed Type
|
|
cylinder-chain
|
||
|
Tramming Speed (Max.)
|
|
2.5 km/h
|
||
|
Gradeability
|
|
25°
|
||
|
Total Weight
|
|
3,830Kg/ 4,270 kg
|
||
|
Transportation Dimensions
|
|
5,700X2,130X2,200 mm
|
||
