Quick Details
-
Description:
-
Geophysical equipment fluxgate magnetometer
-
Model Number:
-
HS-PC-MM3LN
-
Type:
-
Fluxgate magnetometer
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
Smagall
-
Theory:
-
fluxgate
-
Output:
-
3-axis magnetic field value
-
Measuring Range:
-
±100000nT
-
Linearity:
-
0.01% FS
-
Precision:
-
0.01%+Reading
-
Measuring Precision:
-
0.1nT
-
Power supply:
-
12V/24V
-
Brand:
-
Smagall
-
Sampling Frequency:
-
200Hz
-
Applicable Operation Temperature:
-
-25C~80C(- 13℉~176℉)
Quick Details
-
Usage:
-
geophysical survey
-
Features:
-
Fluxgate magnetometer
-
Mounting Type:
-
Fluxgate Magnetometer
-
Description:
-
Geophysical equipment fluxgate magnetometer
-
Model Number:
-
HS-PC-MM3LN
-
Type:
-
Fluxgate magnetometer
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
Smagall
-
Theory:
-
fluxgate
-
Output:
-
3-axis magnetic field value
-
Measuring Range:
-
±100000nT
-
Linearity:
-
0.01% FS
-
Precision:
-
0.01%+Reading
-
Measuring Precision:
-
0.1nT
-
Power supply:
-
12V/24V
-
Brand:
-
Smagall
-
Sampling Frequency:
-
200Hz
-
Applicable Operation Temperature:
-
-25C~80C(- 13℉~176℉)

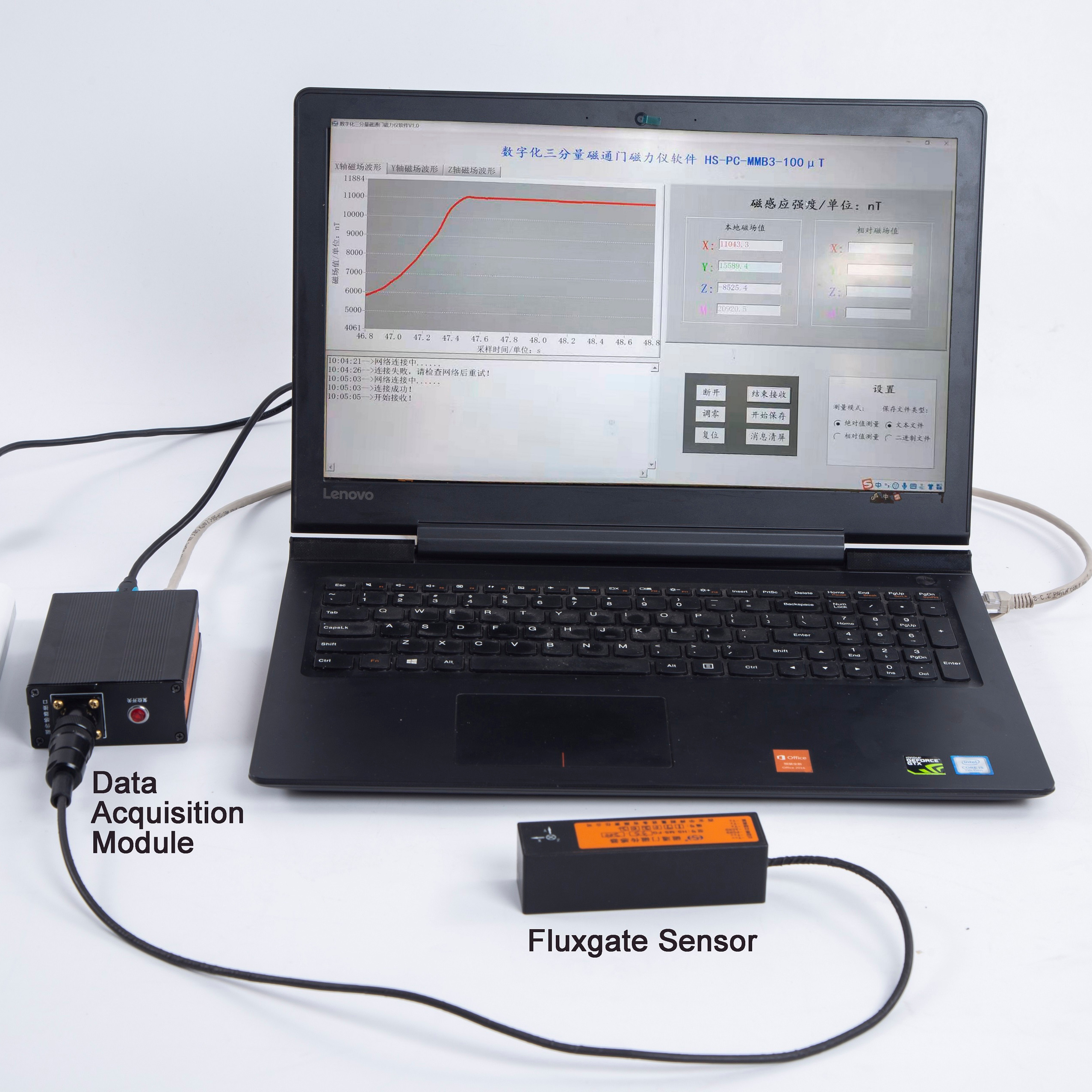

Geophysical equipment fluxgate magnetometer for geomagnetic field survey
The Three-component Fluxgate Magnetometer (hereinafter referred to as magnetometer)with large measuring range belongs to the weak magnetic field measuring product series.
Function:
· high accuracy measurement
· data acquisition processing
· real time display of test result
Advantages:
· high measuring accuracy
· simple application
· easy carrying
|
|
It is very applicable to vector measurement of weak magnetic field and high resolution
measurement of magnetic field, such as:
- geomagnetic measurement
- material nondestructive inspection
- space magnetic measurement
- time domain electromagnetic measurement
- magnetic telluric measurement
- High sensitivity
- Low frequency domain noise
- Wide band
- Good linearity
- High resolution
- Small size
- Light weight
- High IP Grade
Perform ance
|
Mo del |
HS - PC - MM3LN |
|
Measuring Range |
± 100 000nT |
|
Lineari ty |
0.01% FS |
|
Prec ision |
0 .01%+ Reading |
|
Measuring Precision |
0 .1 nT |
|
Sampling Frequency |
2 00 Hz |
Mechanical Parameter
|
Siz e |
S ensor |
3 0*30*1 2 0 mm |
|
Data Acquisition Module |
3 3 * 9 6*1 56 mm |
|
|
C omputer |
1 4" |
|
|
W eight |
S ensor |
220 g |
|
Data Acquisition Module |
350 g |
|
magnetic detection under water |
oil and mineral exploration |
|
magnetic detection in air |
geological detection |
It can be applided in:
- magetic material detection
- static magnetic field measurement
- dynamic magnetic field measurement
- shielding effectiveness detection
- shieding effectiveness detection in magnetically shielded room
- geomagnetic and background magnetic field measurement
- monitor of effectiveness of passive shielding equipment
- orientation sensing
- detection of magnetic beacon
- space magnetic field measurement
- alternating-current magnetic field measurement
- environmental magnetic field monitoring
- magnetic field characteristics identification
- multidimensional magnetic field description
- magnetic detection underwater
- target detection and location
- aviation magnetic field detection
- attitude measurement
R&D and Plant
The key members of our R&D have rich overseas learning and working experiences. Besides, our company often cooperates with some universities and scientific institutions. Therefore we have strong ability in researching and developing new technology in this field.
Main Customers
Since 2001, Smagall have been specializing in sensors and providing solutions for various customers with various requirement.
We have strong R&D team which can provide advanced products as well as customize sensors customers. Since establishment of the company, our products are well accepted by our customers in different part of world.
Some of our products have been awarded Patents for Innovation.
We sincerely welcome overseas buyers and suppliers to cooperate with us for mutral benefit.
Within business time, we will quote you AT ONCE.
Within non business time, We will quote you WITHIN 8 HOURS.
