Quick Details
-
Power:
-
1.1kw
-
Min. Lifting Height:
-
10m
-
Table Size:
-
900x700mm
-
Overall Dimensions:
-
5200mm*1700mm*2100mm
-
Weight:
-
1900 kg
-
Lifting height:
-
10m-20m
-
Load capacity:
-
200kg
-
Working height:
-
12m-22m
-
Platform size:
-
0.9x0.7m
-
Working radius:
-
5.5m-13.5m
-
Name:
-
Towble boom lift
-
Driven mode:
-
Hydraulic
-
Overall Size( L*W*H):
-
5.2*1.7*2.1M-5.8*1.9*2.3M
-
Wind Resistance Level:
-
5
-
Supporting Legs Stride Distance:
-
4.5-4.9
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Blift
-
Power:
-
1.1kw
-
Min. Lifting Height:
-
10m
-
Table Size:
-
900x700mm
-
Overall Dimensions:
-
5200mm*1700mm*2100mm
-
Weight:
-
1900 kg
-
Lifting height:
-
10m-20m
-
Load capacity:
-
200kg
-
Working height:
-
12m-22m
-
Platform size:
-
0.9x0.7m
-
Working radius:
-
5.5m-13.5m
-
Name:
-
Towble boom lift
-
Driven mode:
-
Hydraulic
-
Overall Size( L*W*H):
-
5.2*1.7*2.1M-5.8*1.9*2.3M
-
Wind Resistance Level:
-
5
-
Supporting Legs Stride Distance:
-
4.5-4.9

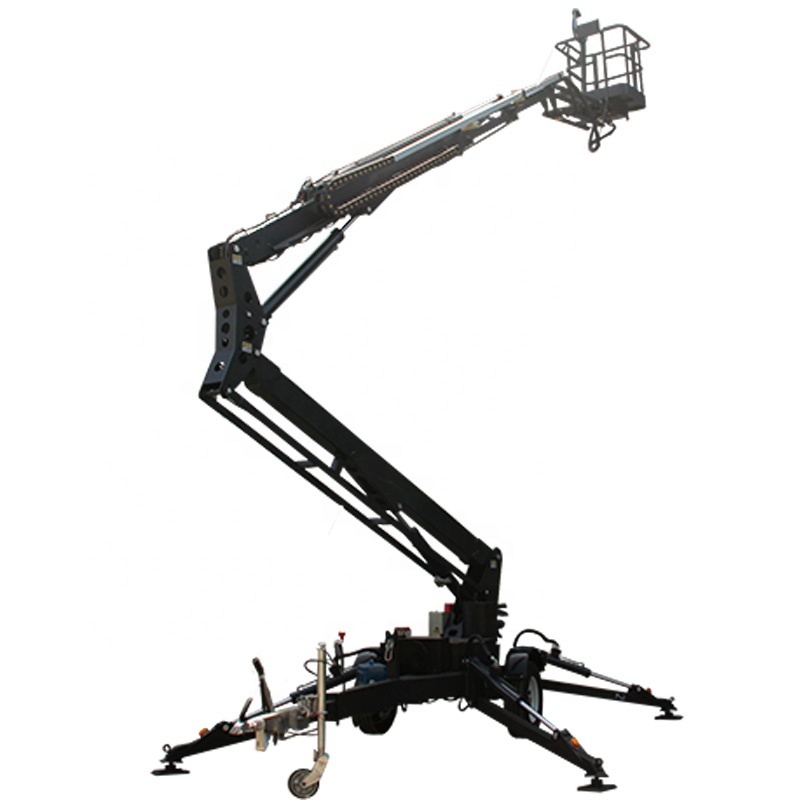

16m Hydraulic construction lift electirc towable spider boom lift
Blift Brand towable boom lift
is one type of aerial work man lift platform used by construction companies, shipyars, cleaning and installation service companies and so on.
Towable boom lift
is mainly featured by its compact size, stable lifting,360 degree rotating and multi powers with the max platform height from 10m to 20m.Now it is one of the best sellers among Blift Brand products
.
|
Model Type |
SBL12 |
SBL14 |
SBL16 |
SBL18 |
SBL20 |
SBL22 |
SBL24 |
|
Max platform heihgt |
10M |
12M |
14M |
16M |
18M |
20M |
22M |
|
Max Working height |
12M |
14M |
16M |
18M |
20M |
22M |
24M |
|
Load capacity |
200KG |
||||||
|
Platform size |
0.9*0.7M |
||||||
|
Working radius |
5.5M |
6.5M |
8.5M |
10.5M |
12M |
13.5M |
15M |
|
Net Weight |
1855KG |
2050KG |
2500KG |
2800KG |
3000KG |
3350KG |
3600JG |
