Quick Details
-
Application:
-
converter
-
Cross Reference:
-
no applicable
-
current:
-
200~5000
-
voltage:
-
600~2500
-
outline:
-

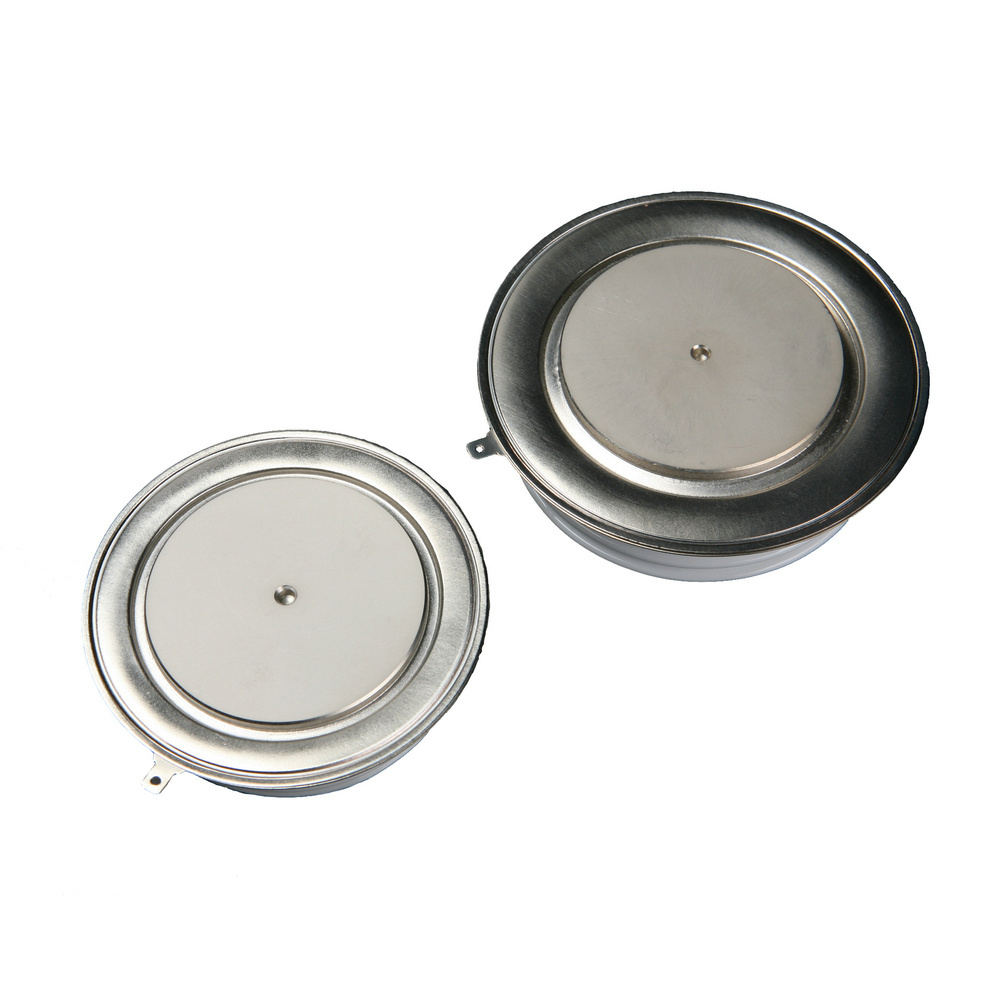

Capsule Version
-
Shipping:
-
FeDex
-
Payment:
-
T/T
-
Condition:
-
100% Original
-
Package:
-
Standard Package
-
MOQ:
-
10 Pcs
-
Leadtime:
-
10-15days
-
Type:
-
Silicon Controlled Rectifier
Quick Details
-
Model Number:
-
KP
-
Brand Name:
-
Cenexe
-
Place of Origin:
-
Tianjin, China
-
Application:
-
converter
-
Cross Reference:
-
no applicable
-
current:
-
200~5000
-
voltage:
-
600~2500
-
outline:
-
Capsule Version
-
Shipping:
-
FeDex
-
Payment:
-
T/T
-
Condition:
-
100% Original
-
Package:
-
Standard Package
-
MOQ:
-
10 Pcs
-
Leadtime:
-
10-15days
-
Type:
-
Silicon Controlled Rectifier
Datasheet of KP series
|
Model |
IT(AV) @TC=75℃ A |
VDRM VRRM V |
IDRM IRRM mA |
ITSM @50HZ kA |
VTM
V |
|
VGT
V |
IGT
mA |
dv/dt
V/μs |
Rthjc
℃/W |
Tvj
℃ |
Outline |
|
@ITM A |
||||||||||||
|
KP200/35 |
200 |
3500 |
40 |
3.0 |
2.8 |
600 |
3.0 |
150 |
1000 |
0.080 |
125 |
T6 |
|
KP300/18 |
300 |
1800 |
30 |
4.5 |
2.0 |
900 |
500 |
|||||
|
KP500/06 |
500 |
600 |
20 |
6.0 |
1.4 |
1500 |
||||||
|
KP300/35 |
300 |
3500 |
40 |
4.5 |
2.8 |
900 |
3.0 |
200 |
1000 |
0.045 |
125 |
T7 |
|
KP400/26 |
400 |
2600 |
6.0 |
2.4 |
1200 |
|||||||
|
KP500/18 |
500 |
1800 |
30 |
7.5 |
2.0 |
1500 |
500 |
|||||
|
KP800/06 |
800 |
600 |
20 |
12.5 |
1.5 |
2000 |
||||||
|
KP200/60 |
200 |
6000 |
120 |
3.0 |
3.8 |
600 |
3.0 |
200 |
1000 |
0.035 |
125 |
T9 |
|
KP300/46 |
300 |
4600 |
100 |
4.5 |
3.2 |
900 |
||||||
|
KP400/35 |
400 |
3500 |
80 |
6.0 |
2.6 |
1200 |
||||||
|
KP500/26 |
500 |
2600 |
60 |
7.5 |
2.2 |
1500 |
||||||
|
KP800/18 |
800 |
1800 |
50 |
12.0 |
1.8 |
2000 |
500 |
|||||
|
KP1000/06 |
1000 |
600 |
40 |
21.0 |
1.5 |
3000 |
||||||
|
KP800/35 |
800 |
3500 |
120 |
12.0 |
2.8 |
2000 |
3.0 |
200 |
1000 |
0.031 |
125 |
T10 |
|
KP1000/18 |
1000 |
1800 |
100 |
18.0 |
2.0 |
3000 |
500 |
|||||
|
KP1200/06 |
1200 |
600 |
80 |
24.0 |
1.5 |
|||||||
|
KP500/60 |
500 |
6000 |
200 |
8.0 |
4.0 |
1500 |
3.0 |
200 |
1000 |
0.022 |
125 |
T11 |
|
KP800/46 |
800 |
4600 |
150 |
10.0 |
3.2 |
2000 |
||||||
|
KP1000/35 |
1000 |
3500 |
120 |
18.0 |
2.6 |
3000 |
||||||
|
KP1200/18 |
1200 |
1800 |
100 |
28.0 |
2.2 |
500 |
||||||
|
KP1500/06 |
1500 |
600 |
80 |
36.0 |
1.5 |
6000 |
||||||
|
KP1200/35 |
1200 |
3500 |
200 |
20.0 |
2.8 |
3000 |
3.5 |
250 |
1000 |
0.018 |
125 |
T12 |
|
KP1500/26 |
1500 |
2600 |
150 |
27.0 |
2.4 |
|||||||
|
KP1800/18 |
1800 |
1800 |
120 |
33.0 |
2.0 |
500 |
||||||
|
KP2000/06 |
2000 |
600 |
100 |
40.0 |
1.4 |
6000 |
||||||
|
KP1000/60 |
1000 |
6000 |
250 |
15.0 |
4.2 |
3000 |
3.5 |
250 |
1000 |
0.015 |
125 |
T13 |
|
KP1200/46 |
1200 |
4600 |
200 |
20.0 |
3.0 |
|||||||
|
KP1500/35 |
1500 |
3500 |
180 |
25.0 |
2.4 |
|||||||
|
KP1800/26 |
1800 |
2600 |
150 |
30.0 |
2.2 |
6000 |
||||||
|
KP2000/18 |
2000 |
1800 |
120 |
36.0 |
1.8 |
500 |
||||||
|
KP2500/06 |
2500 |
600 |
100 |
50.0 |
1.4 |
|||||||
|
KP1500/60 |
1500 |
6000 |
300 |
25.0 |
3.6 |
3000 |
4.0 |
300 |
1000 |
0.011 |
125 |
T14 |
|
KP1800/46 |
1800 |
4600 |
280 |
30.0 |
3.0 |
6000 |
||||||
|
KP2000/35 |
2000 |
3500 |
250 |
36.0 |
2.4 |
|||||||
|
KP2500/26 |
2500 |
2600 |
200 |
45.0 |
2.0 |
|||||||
|
KP3000/18 |
3000 |
1800 |
180 |
54 |
2.0 |
9000 |
4.0 |
300 |
500 |
|||
|
KP3500/06 |
3500 |
600 |
150 |
65 |
1.4 |
|||||||
|
KP2000/60 |
2000 |
6000 |
350 |
30 |
3.8 |
6000 |
4.0 |
400 |
1000 |
0.008 |
125 |
T15 |
|
KP3000/32 |
3000 |
3200 |
300 |
45 |
2.4 |
9000 |
||||||
|
KP4000/20 |
4000 |
2000 |
250 |
60 |
2.0 |
|||||||
|
KP5000/06 |
5000 |
600 |
200 |
90 |
1.5 |
500 |
||||||
|
KP2500/60 |
2500 |
6000 |
400 |
35 |
4.0 |
9000 |
4.0 |
400 |
1000 |
0.006 |
125 |
T16 |
|
KP4000/32 |
4000 |
3200 |
350 |
60 |
2.2 |
|||||||
|
KP5000/20 |
5000 |
2000 |
300 |
80 |
1.8 |
|||||||
|
KP6000/06 |
6000 |
600 |
250 |
100 |
1.4 |
500 |
Features
Distributed gate design
Chip diameter 4inch/5inch
Vrrm/Vdrm up to 4.5KV, ITav up to 4KA, tq from 70 us to 300 us
Short turn-off time and low switching losses
Low on-state voltage
Applications
Induction heating
Power supply
High frequency inveter, converter
Traction
UPS
Outline
