DISK MILL FFC-15 electric grinder spice grinders wholesale peanut grinding machine

Brief introduction of peanut grinding machine:

The FFC peanut grinding machine produced by our plant, has multiple purpose. At present, four types are available, ie. Models FFC- 45A, FFC-37. FFC-23 and FFC-15. The sizes or specifications of the products turned out by these mills are different from each other, but them mechanical structures are nearly the same.

This peanut grinding machine is designed compactly with a wonderful appearance: the peanut grinding machine is small in size and light in weight, reliable in operation and easy in maintenance has a large range of service and proves to be of high quality in crushing. In one word, this mill will provide the best service to the users.

Application of peanut grinding machine:

1. With this peanut grinding machine, it is most desirable to crush various coarse grains and fodder, such as corn, soybean, sorghum, dried sweet potato slices and soybean cake. Each of these articles can be crushed into "Powder"  by one stroke without any residue.
2. Also this peanut grinding machine is also popular in chemical industry, paper - making and medical industry, because it can be used to crush various kinds of chemical raw materials, exercise beating in paper making and process Chinese herbal medicine.
3. Apart from the above mentioned functions, the peanut grinding machine can also be used to crush fresh fruit, fresh sweet potato and soaked soybeans, which contain a great deal of moisture content, The crushing result is very good and praised by the users.

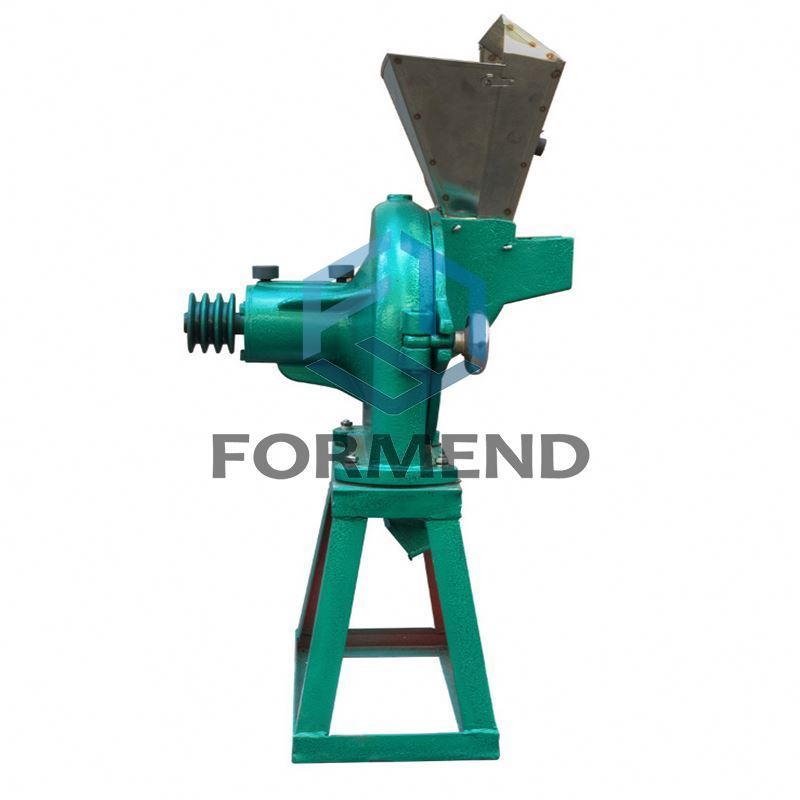

Disk mill front view                            disk mill back view                          disk mill front right view

disk mill inner side view                                          disk mill top view                                             disk mill lateral view

peanut grinding machine screen sieve

This is the FFC disk mill screen sieve; from the picture you can see, it have various hole size: 0.4mm, 0.5mm, 0.8mm, 1.0mm, 1.2mm
1.6mm, and so on. Use different size screen sieve, it can satisfy customers different fineness requirements, it can get coarse flour, grits and fine flour; but at the same time,
if you use different mesh size screen, the output will become different so.

Rotator of peanut grinding machine

This part is complete rotator. It is the key part of the disk mill machine. It is to crushing the grain by friction between the rotator and tooth disks. It has many hole there; some hole is used to fix flat teeth, some is sued to fix round teeth.
The rotator and flat teeth and round teeth are all made of high quality steel. It has the features of high wearing resistance.

Tooth disks of peanut grinding machine

This is disk mill tooth plate. It is used to crush grains or materials by the friction between the rotator and tooth disk.
It has small tooth disk and big tooth disk.
This part is made of high quality manganese steel, it also with the features of high wearing resistance.

Steel ring of peanut grinding machine

This is the disk mill steel ring. It is used to fixed the screen sieve by using some screws and nuts. One machine (one screen sieve) need 2 pcs steel ring to fix it.
The steel ring is made of high quality steel. It has the features of high wearing resistance.

peanut grinding machine drive by electric motor

Left picture is disk mill drive by electric motor;
Using electric motor, it can protect environment.
Different countries may have different voltage, HZ and phase, but we provide customized services. We will adjust the electric motor according to customers local voltage request.

peanut grinding machine drive by diesel engine

Left picture is disk mill machine drive by diesel engine.
Some Africa countries lack of electricity, so we suggest them use diesel engine, it is convenient to use at any time.
Customers should better tell us their local condition, so we can allocate them suitable machine frame.

Minimum order quantity best price

We provide one set quantity order for all kinds of disk mills.
If customers want us delivery to their country directly, we will check both sea shipping cost and air transportation cost.
And, customers and place order on Alibaba by Trade Assurance directly, which will protect customers rights.

Production and after sales services

1. We accept customized services; if customers order more than 50 sets quantity for the disk mill, we can print customers LOGO on the machine;
2. As for the screen sieve, we have many various hole size. We provide technical suggestions for customers according to their real needs;
3. We provided technical guidance; when you replace the spare parts, any questions, we will help customers solve all problems. Cooperated with us, be assured!!!
