Quick Details
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
ShiBo
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
4.5*0.8*1.4m
-
Weight:
-
1.5 kg
-
Marketing Type:
-
New Product 2023
-
After-sales Service Provided:
-
Online support
-
type of the machine:
-
custom-made
-
Suitable for the rolling plate:
-
PPGI ,galvanized steel ,lead plate,Stainless steel
-
cutting device:
-
hydraulic shearing 1 set
-
material thickness:
-
0.3-0.8mm(or depend on your need)
-
drawing:
-
can be design depend on your requirement
-
Language:
-
Chinese ,English ,Russian
-
cutting mould:
-
can be changed
-
Color:
-
Client's Request
-
Roller material:
-
Gcr12
Quick Details
-
Type:
-
Tile Forming Machine
-
Tile Type:
-
Steel
-
Production Capacity:
-
8-10m/min
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
ShiBo
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
4.5*0.8*1.4m
-
Weight:
-
1.5 kg
-
Marketing Type:
-
New Product 2023
-
After-sales Service Provided:
-
Online support
-
type of the machine:
-
custom-made
-
Suitable for the rolling plate:
-
PPGI ,galvanized steel ,lead plate,Stainless steel
-
cutting device:
-
hydraulic shearing 1 set
-
material thickness:
-
0.3-0.8mm(or depend on your need)
-
drawing:
-
can be design depend on your requirement
-
Language:
-
Chinese ,English ,Russian
-
cutting mould:
-
can be changed
-
Color:
-
Client's Request
-
Roller material:
-
Gcr12

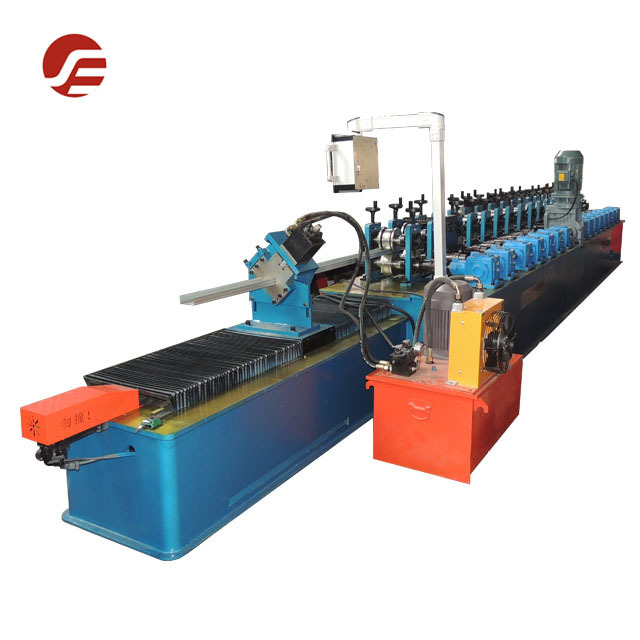

Light gauge steel framing machine metal stud track making machine
|
Low Price Light Steel Keel Machine Track Light Steel Roll Forming Machine Metal Stud Machine |
|
|
Feeding material |
Galvanized sheet |
|
Thickness of the plate |
0 .3-0 . 35 mm |
|
Feeding width |
Depend on profile drawing |
|
Dimensions |
45 00mm x 8 00mm x 1 0 00mm |
|
Diameter of the axle |
Φ 40 mm |
|
Rollers |
1 2 rows |
|
Roller material |
45# steel |
|
Productivity |
About 25-30 m/min |
|
Total power |
5 .5 +4 kw |
|
Voltage |
220 v or 380v 6 0hz 3phase |
|
Weight |
About 2.5-3 t |
|
Frame |
Square steel box |
|
Side board thickness |
25 mm |
|
Cutting way |
Automatic tracking cutting system with servo motor |
|
Drive |
By gear |
