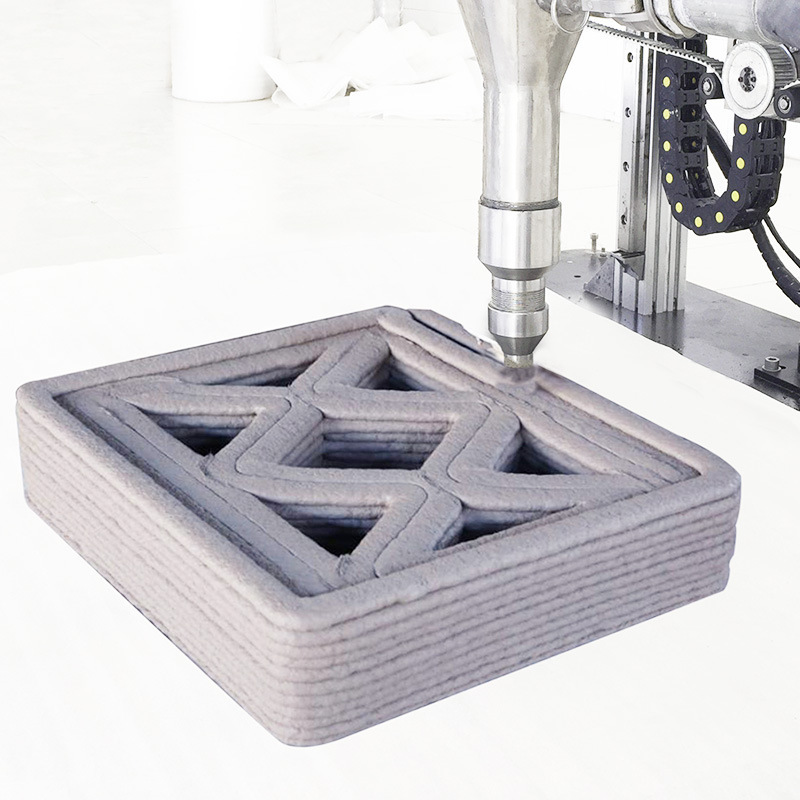

Concrete mortar desktop 3D printer is widely used in research units for modelling and printing three-dimensional effect. This product have multiple features like rapid printing , material-saving, time and spacing saving, compact structure, swiftness and convenience.

Technical parameters about Concrete mortar 3D printers

1.Print size:500×400×300(mm)

2.Exterior dimensions:1080×750×700(mm)

3.Drive motor:stepper motor

4.XY speed of motion:1~60mm/s

5.Z-axis speed of motion:5~20mm/s

6.Positioning accuracy:0.08mm

7.Print head dimension:10mm(customization available)

8.Control cabinet:touch screen integrates with the control cabinet

9.Operating interface:15-inch touch screen computer

10.Print path display:software online display of print path

11.Interface language:Chinese and english

12.Upgrade method:internet transfer, free updates

13.Material feeding method:manual or electric (Stepless variable speed)

14. Input voltage:AC220V±10%,50Hz

15. Maximum power:0.6kW

16. Printer weight:200kg

17.Dedicated feeding system(optional)Stepless variable speed control

Standard configurations about Concrete mortar 3D printers

1.printer Three-dimensional motion frame (1)

2.3D printing smart console (1)

3. printing software pre-installation
