Quick Details
-
Model Number:
-
JH-RS-1457
-
Max. Current:
-
10A\20A
-
Mechanical Life:
-
50000cycles
-
Name:
-
DC 12v carling illuminated waterproof rocker switch
-
Fit for:
-
Car\boat\Jeep\ATV
-
Light:
-
Non light \one light\two lights
-
Material:
-
ABS+PBT+PC+POM
-
Color:
-
Black\red\white
-
LED color:
-
Amber\red\blue\green\white
-
Rating:
-
20A 12VDC 10A 24VDC
-
Certificate:
-
CE,ROHS
-
Function:
-
DPST\DPDT\SPST\SPDT
-
Product type:
-
12v Illuminated Rocker Switch
-
Certification:
-
CE.ROHS
Quick Details
-
Max. Voltage:
-
12V\24V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
JH
-
Model Number:
-
JH-RS-1457
-
Max. Current:
-
10A\20A
-
Mechanical Life:
-
50000cycles
-
Name:
-
DC 12v carling illuminated waterproof rocker switch
-
Fit for:
-
Car\boat\Jeep\ATV
-
Light:
-
Non light \one light\two lights
-
Material:
-
ABS+PBT+PC+POM
-
Color:
-
Black\red\white
-
LED color:
-
Amber\red\blue\green\white
-
Rating:
-
20A 12VDC 10A 24VDC
-
Certificate:
-
CE,ROHS
-
Function:
-
DPST\DPDT\SPST\SPDT
-
Product type:
-
12v Illuminated Rocker Switch
-
Certification:
-
CE.ROHS

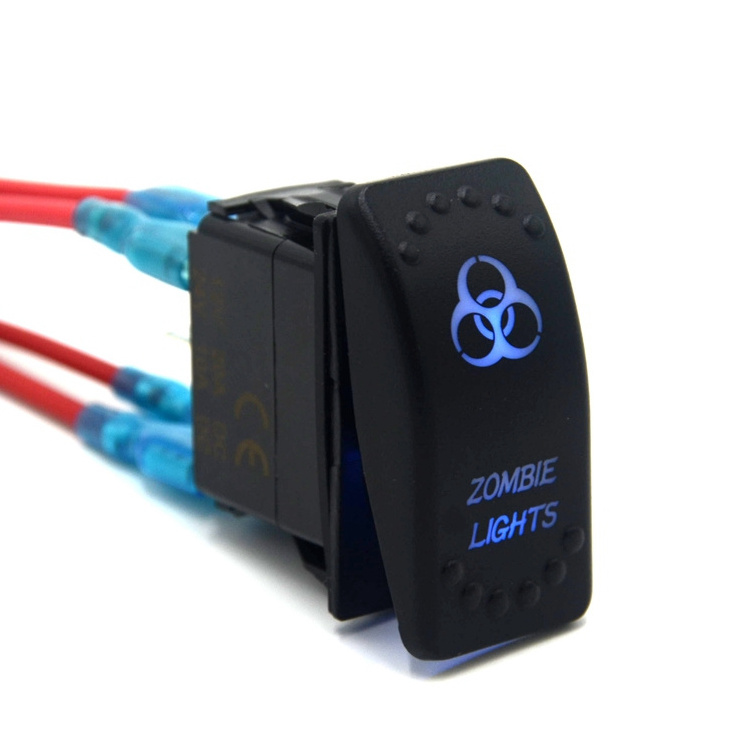

DC 12v carling illuminated waterproof rocker switch with laser engraving cover
1). Description: (DC 12v carling illuminated waterproof rocker switch Quick Details)
Max. Current: 20A DC
Max. Voltage: 24V DC
Avaliable power: 20A/12V 10A/24V DC
Dielectric intensity 1500V AC/5S
Insulation resistance: 100MΩ MIN
Contact resistance: 50MΩ MAX
Rocker switches color:Black,Red,White.
Waterproof rocker switch LED lights:Blue,green,red,white,orange.
Switch electrical functions : ON-OFF (ON)-OFF ON-ON (ON)-ON ON-OFF-ON (ON)-OFF-ON (ON)-OFF-(ON) ON-ON-ON ON-ON-OFF , (NO): MOM ON , Automatic reset ON.
Waterproof - IP68 .Material:ABS plastic panel .Waterproof and Anti-corrosion .
Carling Style ,Installation dimensions is : 21.2*37.2mm (the same as Carling style).
Approvals: CE,UL,patent.
2). Production Specification
1.100% test before shipment
2.more than 50000cycles life
3.High current rating to 20 amps
4.New style with rounded corners
5.Lighted and non-lighted
6.Maintain-action and momentary
7.Output circuit protection,overload protection,reverse polarity protection,multiple protection,safety to use.
8.Factory price,high-quality circuit board and never use recycle plastic
3). Advantages
All symbols are printed or laser etched directly onto the switch face using modern high tech inks and printers to ensure long image life. we do not use stickers which will wear off in a very short time.
The switch is rated at 20amp's however in ALL case we recommend that you wire the accessory through a fused relay.
1. More models for your choice
2. Laser etch symbols for reference
3. high-quality circuit board.
4. support custom combination
5. good blister packing and carton packing for protection(Individual Packing optional)
6. factory price and never use recycle plastic
1. Blister packing to protect switch well after long time shipment
2. Delivery time: within 5-15 days after confirming payment
3.2 Years warranty.
4.100% test the goods before packing.
5.OEM welcome.
6.100% manufacturing factory
7.CE RoHs UL approved
8.Waterproof IP68
