Quick Details
-
Model Number:
-
NX-PA20 p28-2
Quick Details
-
Set Type:
-
AMPLIFIER, TRUMPET SPEAKER AND DYNAMIC MICROPHONE
-
Place of Origin:
-
Japan
-
Brand Name:
-
FIRSTCOM
-
Model Number:
-
NX-PA20 p28-2
Products Description
HIGH QUALITY RELIABLE JAPANESE PRODUCTS.
12V LOUD SPEAKER SYSTEM FOR VEHICLE SALES AND PUBLIC ANNOUNCEMENT.
MAXIMUM OUTPUT POWER 20W EASY INSTALLATION AND OPERATION
PROVIDED WITH INPUT TERMINAL, POSSIBLE TO PLAY CD OR TAPE RECORDER
4 TRUMPET SPEAKER IS POSSIBLE TO CONNECT

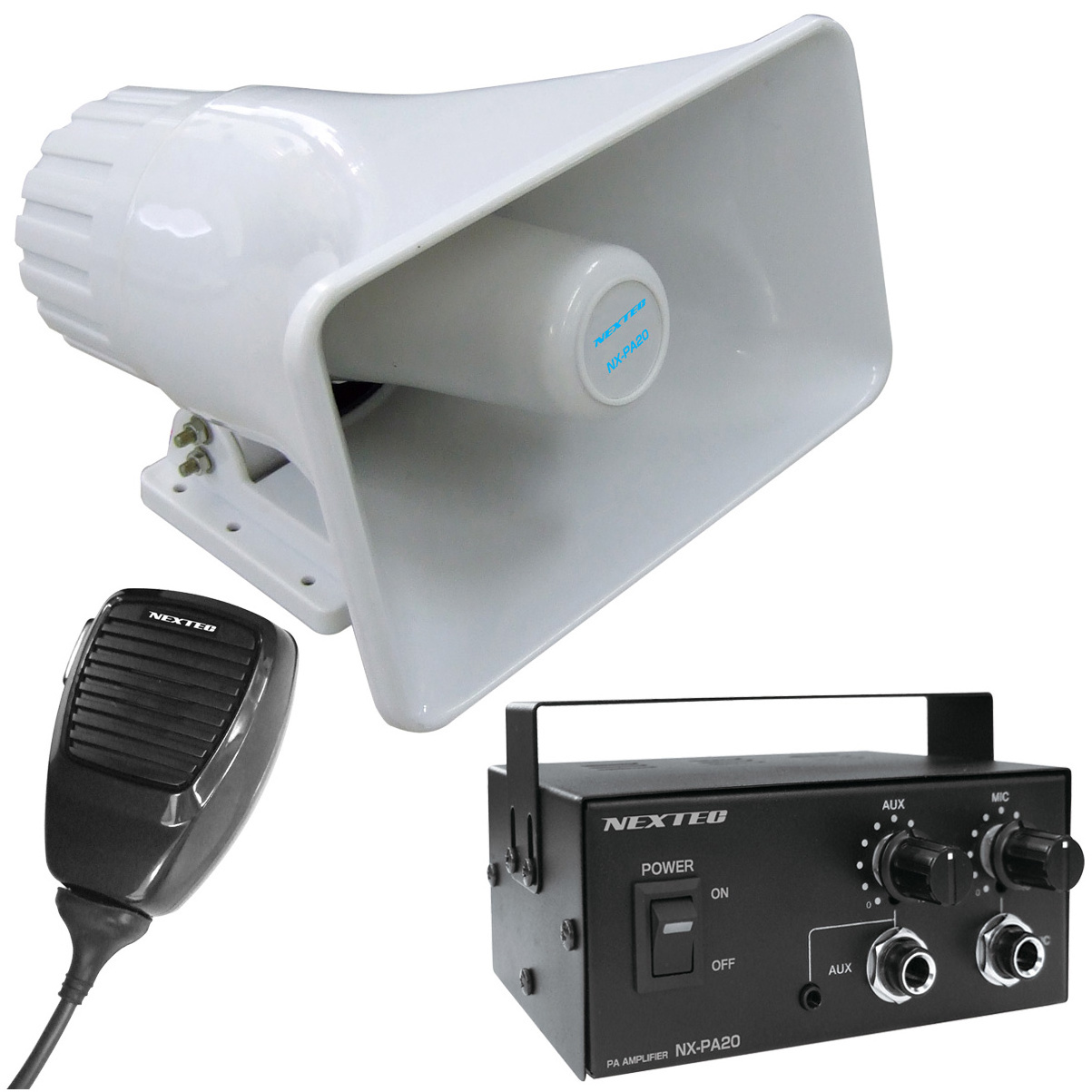

ONE SET CONSISTS OF AMPLIFIER, TRUMPET SPEAKER AND DYNAMIC MICROPHONE.
|
POWER SOURCE
|
DC12~13.8V
|
|
OUTPUT POWER
|
Rated 15W, Maximum 20W
|
|
FREQUENCY
|
100Hz~10kHz
|
|
SENSITIVITY
|
Microphone:5mV, AUX:3.5φ・・・30mV 100Ω, AUX:6.5φ・・・250mV 20kΩ
|
|
IMPEDANCE FOR SPEAKER (ENCLOSED)
|
8ohm
|
|
IMPEDANCE FOR SPEAKER (CONNECTABLE)
|
2~8ohm
|
|
POWER CONSUMPTION
|
3.5A(MAX)
|
|
SIZE (MAIN BODY)
|
Approx. 125(W)×55(H)×75mm(D)
|
|
SIZE (SPEAKER)
|
Approx. 200(W)×118(H)×230mm(D)
|
|
WEIGHT(MAIN BODY)
|
Approx. 430g
|
|
WEIGHT(SPEAKER)
|
Approx. 1kg
|
