Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MobicomIOT
-
Model Number:
-
G108P
-
GPS Frequency:
-
1575.42 MHz
-
Power Supply:
-
DC 9V -- 80V
-
Working current:
-
<30 mA(DC 12V)
-
Operating temperature:
-
-25℃ -- 75℃
-
Operating humidity:
-
5% -- 95%
-
4G Chipset:
-
Fibocom L610-CN/EU/LA
-
Frequency:
-
B1/B3/B7/B8/B20/B28/B34/B38/B40/B41
-
Positioning accuracy:
-
< 5m (95%)
-
Cold start time:
-
< 29s(in average)
-
Warm start time:
-
< 1 s (in average)
Quick Details
-
Positioning Mode:
-
GSM, GPS, GPRS, LBS, AGPS, Beidou, GLONASS, Real-Time Positioning, Emergency Positioning, Power Saving Mode
-
Function:
-
Waterproof, Voice recorder, ANTI-SHOCK, Loop recording, Fast Charging, Voice Monitor, street view, ACC Detection, Over-Speed Warning, Geofence, SDK
-
Data Storage:
-
Other, SD Card, Cloud Storage, Other
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MobicomIOT
-
Model Number:
-
G108P
-
GPS Frequency:
-
1575.42 MHz
-
Power Supply:
-
DC 9V -- 80V
-
Working current:
-
<30 mA(DC 12V)
-
Operating temperature:
-
-25℃ -- 75℃
-
Operating humidity:
-
5% -- 95%
-
4G Chipset:
-
Fibocom L610-CN/EU/LA
-
Frequency:
-
B1/B3/B7/B8/B20/B28/B34/B38/B40/B41
-
Positioning accuracy:
-
< 5m (95%)
-
Cold start time:
-
< 29s(in average)
-
Warm start time:
-
< 1 s (in average)

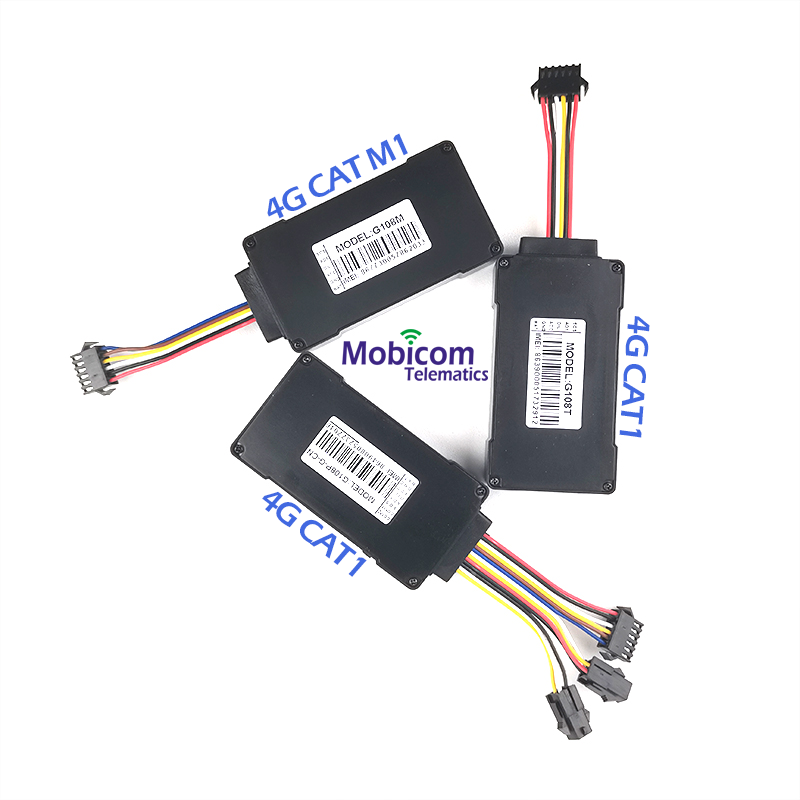

Mini 4G gps tracking device G108 motorcycle gps tracker
Product Description
The G108P LTE Cat1 version is a waterproof IP65 Mini 4G GPS tracker designed for a wide range of vehicle tracking application. It has basic I/O interfaces that can be used for GPS vehicle tracking. It’s internal GPS antenna has superior sensitivity and fast time to be located. It’s LTE Cat1 module supports FDD-LTE Cat1 allowing the G108P’s location to be monitored in real time or periodically tracked by a backend server and mobile devices.
The G08P has multiple I/O and 2 RS232 interfaces. Built-in Mobicom and JT808 dual protocols. Support multiple sensors.
Product Functions & Specifications
|
Items |
Specifications |
|||
|
Gift Box Dimension |
132*100*42mm |
|||
|
Tracker Dimension |
86*46*17 mm |
|||
|
Tracker Color |
Black |
|||
|
Weight |
Tracker weight |
0.13kg |
Total package |
0.15kg |
|
Power Supply |
DC 9V -- 55V |
|||
|
Working current |
46 mA ( 12V DC ) |
|||
|
Back-up battery |
Built-in 120mAh, support 2 hour working. |
|||
|
Operating temperature |
-25 ℃ -- 75 ℃ |
|||
|
Operating humidity |
5% -- 95% |
|||
|
LED indicator |
Green led and Red led light indicates GPS and Cellular network status respectively |
|||
|
Power Switch |
SIM Card control |
|||
|
I/O Port |
2 digital inputs |
Ignition detecting –positive trigger |
||
|
SOS detecting-negative trigger (Or iButton or Temperature Sensor) |
||||
|
1 digital output |
Fuel pump/engine circuit cut- Output GND (connect to a normal close relay) |
|||
|
1 Analog Input |
Voltage input 0 to 10V, connect fuel stick, load sensor… You can customize the upper and lower voltage limits to become Positive Trigger digital input |
|||
|
RS232 COM1 |
4PIN have +5V Power Supply Support DriverRFID,FuelSensor, DumpTruckSensor,Camera,Temperature&Humidity |
|||
|
RS232 COM2 |
3PIN don’t have Power Supply Support DriverRFID,FuelSensor, DumpTruckSensor,Camera,Temperature&Humidity |
|||
|
G108 Series 4G Cellular Module |
G108 : 4G LTE CAT1 Fibocom L610 Series G108P: 4G LTE CAT1 Fibocom L610 Series G108M: 4G LTE CAT M1 Quectel BG95 Series |
|||
|
GPS Module |
Positioning accuracy |
< 5m CEP without SA |
||
|
Cold start time |
< 29s(in average ) |
|||
|
Warm start time |
< 28 s (in average ) |
|||
|
Acquisition Sensitivity |
-165dbm |
|||
|
Acquisition channel |
66-channel |
|||
|
GPS Frequency |
1575.42 MHz |
|||
Application
Certifications
Our Team
Packing & Delivery
Good Reviews
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral blank brown-paper boxes.
Q2. What is your terms of payment?
A: 1. For order quantity less than 200pcs,100% TT accepted;
2. For order quantity more than 200pcs, T/T 30% as deposit, and 70% before delivery;
3. For sample and order less than 100pcs, Trade Assurance accepted.
Q3. What is your terms of delivery?
A: EXW, CNF Shenzhen or FOB Shenzhen.
Q4. How about your delivery time?
A: Generally, it will take 2-3 days after receiving your advance payment. The mass production delivery time depends on the items and the quantity of your order, maximum 10-20 days.
Q5. Can you produce according to the samples?
A: Yes, we can produce your samples or technical drawings. We can build the moulds and working samples.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
