Quick Details
-
Brand Name:
-
ZR
-
Use:
-
FTTH
-
Warranty Time:
-
1year
-
Product name:
-
fiber ftth catv passive optical receiver with filter
-
Application:
-
CATV System
-
Wavelength:
-
1100~1600nm&1550nm
-
Ports:
-
1 Port
-
Connector Type:
-
FC/APC&SC/APC FC/PC&SC/PC
-
Return Loss:
-
>45dB
-
Model:
-
OR1 Passive optical receiver
-
Keywords:
-
agc dbc ftth catv optical receive
-
Function:
-
Fiber Signal Transmission
-
Name:
-
catv mini optical receiver
Quick Details
-
Type:
-
Optical Receiver
-
Model Number:
-
Passive optical receiver
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
ZR
-
Use:
-
FTTH
-
Warranty Time:
-
1year
-
Product name:
-
fiber ftth catv passive optical receiver with filter
-
Application:
-
CATV System
-
Wavelength:
-
1100~1600nm&1550nm
-
Ports:
-
1 Port
-
Connector Type:
-
FC/APC&SC/APC FC/PC&SC/PC
-
Return Loss:
-
>45dB
-
Model:
-
OR1 Passive optical receiver
-
Keywords:
-
agc dbc ftth catv optical receive
-
Function:
-
Fiber Signal Transmission
-
Name:
-
catv mini optical receiver
Products Description
|
Item
|
Passive optical receiver
|
|
Wavelength
|
1100~1600mm&1550mm
|
|
Input optical power
|
OdBm~-7dBm(Analogy Signal)&0dBm~-10dBm(Digital Signal)
|
|
Return loss
|
>45dB
|
|
Optical connector
|
FC/APC&SC/APC
FC/PC&SC/PC |
|
Bandwidth
|
40-862 MHz
|
|
Flatness
|
±0.75dB@40-862MHz&1006MHz
|
|
RF output loss
|
≥16dB@40~550MHz ≥ 14dB@550-862&1006MHz
|
|
Output port level
|
>68dBuV(OdBmtest)
|
|
CNR (note1)
|
≥51dB
|
|
CTB (note1)
|
≥65dB
|
|
CSO (note1）
|
≥62dB
|
|
Working temperature
|
-25℃~+45℃
|
|
Output port
|
1
|
|
RF output impedance
|
75Ω
|
|
Size
|
65*22*10 mm
|

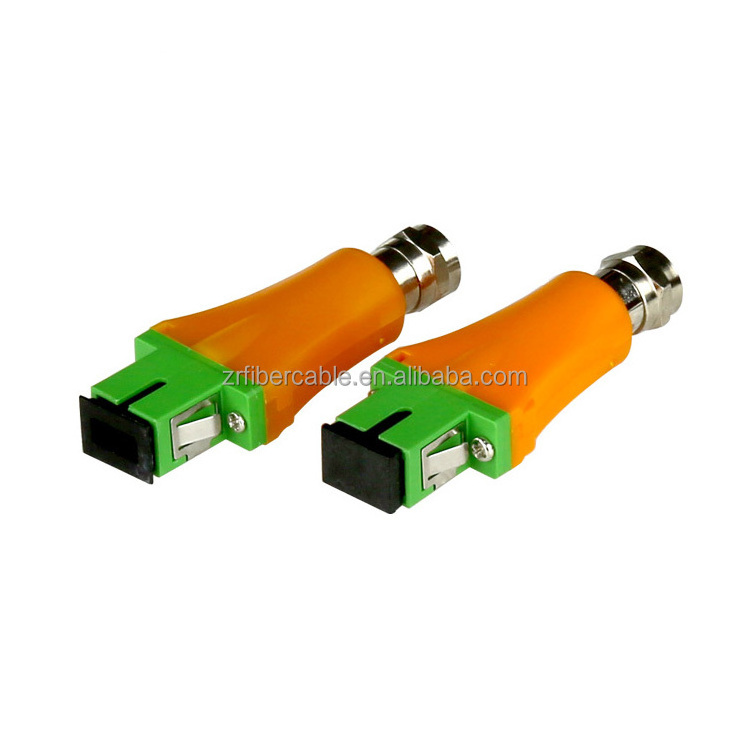

Product Display
