Quick Details
-
Feed Mechanism:
-
Automatic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Sokiei
-
Power:
-
2100W, AC 220V ± 10%, 50/60Hz, single phase
-
Overall Dimensions:
-
223x115x161cm
-
Weight (KG):
-
750 KG
-
Commodity:
-
360 degree head rotation template machine
-
Max. speed:
-
3200 RPM
-
Sewing area:
-
130 x 90 cm
-
OEM:
-
Yes
-
Certification:
-
CE, RoHS
-
Volume:
-
4CBM
-
Language:
-
English,Burmese,Korean,Turkish,Vietnamese,Italiano,Portuguese,Espanol.
-
Application:
-
Garments, clothes, leather, bag, etc.
-
HS code:
-
8452219000
Quick Details
-
Type:
-
Industrial Sewing Machine
-
Max. Sewing Thickness:
-
25mm
-
Stitch Length:
-
0.1-12.7mm
-
Feed Mechanism:
-
Automatic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Sokiei
-
Power:
-
2100W, AC 220V ± 10%, 50/60Hz, single phase
-
Overall Dimensions:
-
223x115x161cm
-
Weight (KG):
-
750 KG
-
Commodity:
-
360 degree head rotation template machine
-
Max. speed:
-
3200 RPM
-
Sewing area:
-
130 x 90 cm
-
OEM:
-
Yes
-
Certification:
-
CE, RoHS
-
Volume:
-
4CBM
-
Language:
-
English,Burmese,Korean,Turkish,Vietnamese,Italiano,Portuguese,Espanol.
-
Application:
-
Garments, clothes, leather, bag, etc.
-
HS code:
-
8452219000
Specification
|
1.
|
Commodity
|

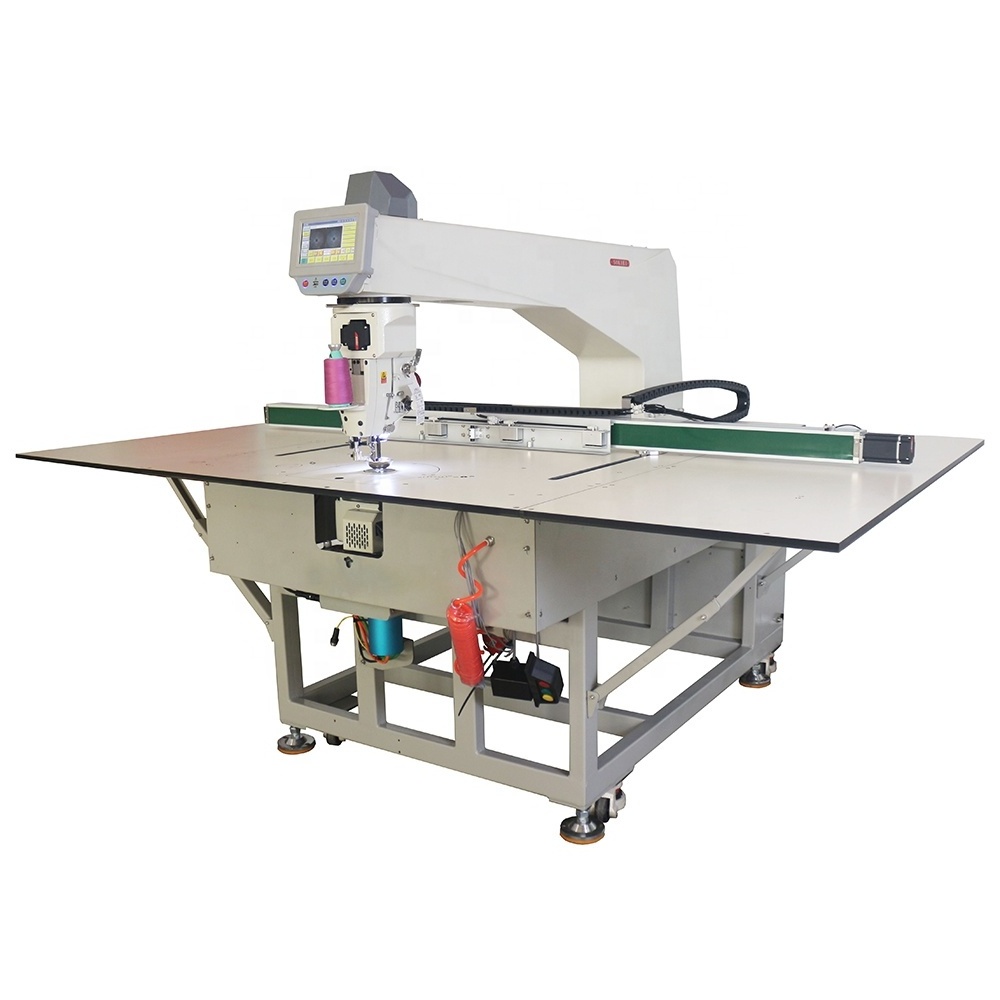

360 degree head rotation template machine
|
|
2.
|
Sewing Area
|
X(Lateral) Direction Y(Longitudinal) Direction
1300(mm) x 900(mm) |
|
3.
|
Stitch type
|
301 lockstitch form
|
|
4.
|
Max. Sewing Speed
|
3200 RPM (when stitch length at 3mm and with regular thread)
|
|
5.
|
Stitch Length
|
0.1～12.7mm
|
|
6.
|
Lift of the presser foot
|
By hand: 5.5 mm, by knee: 13 mm
|
|
7.
|
Needle type
|
DPX17(#16-#23), DBX1 10#(7#-14#), DPX5 10#(7#~14#), DPX35 19#(18#~23#)
|
|
8.
|
Hook
|
Double capacity hook
|
|
9.
|
Middle presser foot
|
Stroke of 4mm as standard
|
|
10.
|
Lowest position adjustable range
|
0.5-8mm
|
|
11.
|
Minimum distance adjustment range
|
25mm
|
|
12.
|
Outside presser foot
|
Distance to the big needle plate: 25mm
|
|
13.
|
Memory of Pattern Data
|
Memory/U Disk
|
|
14.
|
File format
|
DXF, AI, PLT, DST
|
|
15.
|
Maximum stitches in a pattern
|
80000 stitches
|
|
16.
|
Storage of patterns
|
999
|
|
17.
|
Storage of templates
|
999
|
|
18.
|
Main motor power
|
750W
|
|
19.
|
Total power
|
2100W
|
|
20.
|
Operation Temperature Range
|
0℃～45℃
|
|
21.
|
Operation Humidity Range
|
35%～85% （No Dew Condensation）
|
|
22.
|
Line Voltage
|
AC 220V ± 10%, 50/60Hz, single phase
|
|
23.
|
Plywood box size
|
223x115x161cm
|
|
24.
|
Packing volume
|
4CBM
|
|
25.
|
Gross weight
|
750kg
|
|
26.
|
Application
|
Garment, clothes, leather, bag, etc.
|
|
27.
|
Certification
|
CE, RoHS
|
|
28.
|
Language
|
Chinese, English, Burmese, Korean, Turkish, Japanese, Vietnamese, Italiano, Portuguese, Espanol.
|
|
29.
|
OEM
|
Yes
|
|
30.
|
Working lasting
|
24 hours long lasting
|
|
31.
|
HS code
|
8452219000
|
Product Description
Packing & Delivery
Standard plywood box, plastic film wrapped outside for waterproof. To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
