Quick Details
-
Brand Name:
-
WEILI
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
Machine Size
-
Weight (T):
-
5 T
-
Model Number:
-
YW32-160T
-
Motor Power (kw):
-
5 kw
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Power Source:
-
Hydraulic
-
CNC or Not:
-
Normal
-
Name:
-
hydraulic press machine for powder compacting press
-
capacity:
-
according to the size of your work piece
-
customized:
-
yes, according to your work piece
-
Application:
-
powder forming
-
Color:
-
any color
-
warranty:
-
one year
Quick Details
-
Machine Type:
-
Four-column Four-beam Hydraulic Press
-
Return Force (kN):
-
1600 kN
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WEILI
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
Machine Size
-
Weight (T):
-
5 T
-
Model Number:
-
YW32-160T
-
Motor Power (kw):
-
5 kw
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Power Source:
-
Hydraulic
-
CNC or Not:
-
Normal
-
Name:
-
hydraulic press machine for powder compacting press
-
capacity:
-
according to the size of your work piece
-
customized:
-
yes, according to your work piece
-
Application:
-
powder forming
-
Color:
-
any color
-
warranty:
-
one year

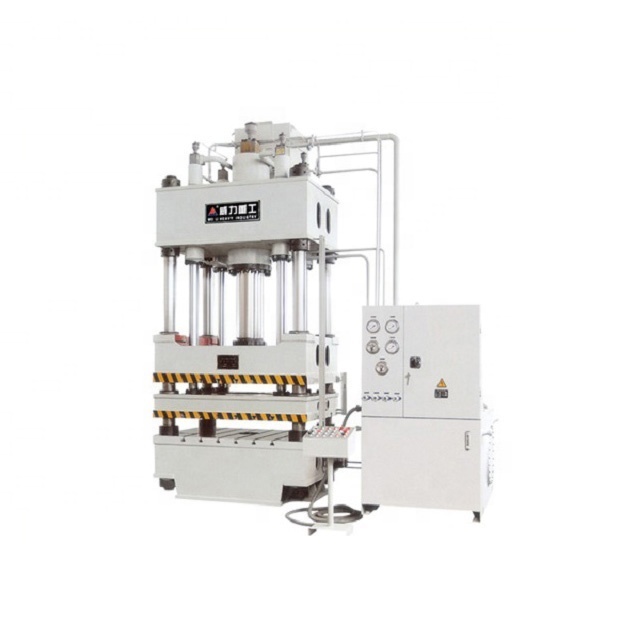

hydraulic press machine for powder compacting press
FORMED PRODUCT
of hydraulic press machine for powder compacting press
|
Main parameter |
YW32-160T |
|
max. liquid pressure |
25MPa |
| nominal pressure |
1600KN |
| stroke of slider | 500 mm |
| max. open height | 480 mm |
| table size | 800x600 mm |
| down speed | 80mm/s |
| press speed | 12-18 mm/s |
| return speed | 64 mm/s |
OPTIONAL DEVICE:
1. movable table
2. cushioning device
3. photo-electric safety device
4. PLC device
RAW MATERIAL AREA of hydraulic press
PROCESSING AREA
FINISHED PRODUCT AREA
