Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Mounting Hole Size:
-
22mm
-
Stucture:
-
1NO1NC / 2NO2NC
-
Operation type:
-
self-locking / momentary
-
Switch Rating:
-
5A 250VAC
-
Protection Grade:
-
IP65 IK10
-
Material:
-
stainless steel / brass nickel plated
-
Terminal:
-
J pin terminal
-
LED Voltage:
-
2V.3V.5V.6V. 12V.24V.36V.48V.110V.220V
-
Lamp color:
-
red green yellow blue white
-
Certificate:
-
CQC CE ROHS ISO9001 MSDS KC
Quick Details
-
Protection Level:
-
IP65 IK10
-
Max. Current:
-
5A
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Zhejiang, China
-
Mounting Hole Size:
-
22mm
-
Stucture:
-
1NO1NC / 2NO2NC
-
Operation type:
-
self-locking / momentary
-
Switch Rating:
-
5A 250VAC
-
Protection Grade:
-
IP65 IK10
-
Material:
-
stainless steel / brass nickel plated
-
Terminal:
-
J pin terminal
-
LED Voltage:
-
2V.3V.5V.6V. 12V.24V.36V.48V.110V.220V
-
Lamp color:
-
red green yellow blue white
-
Certificate:
-
CQC CE ROHS ISO9001 MSDS KC

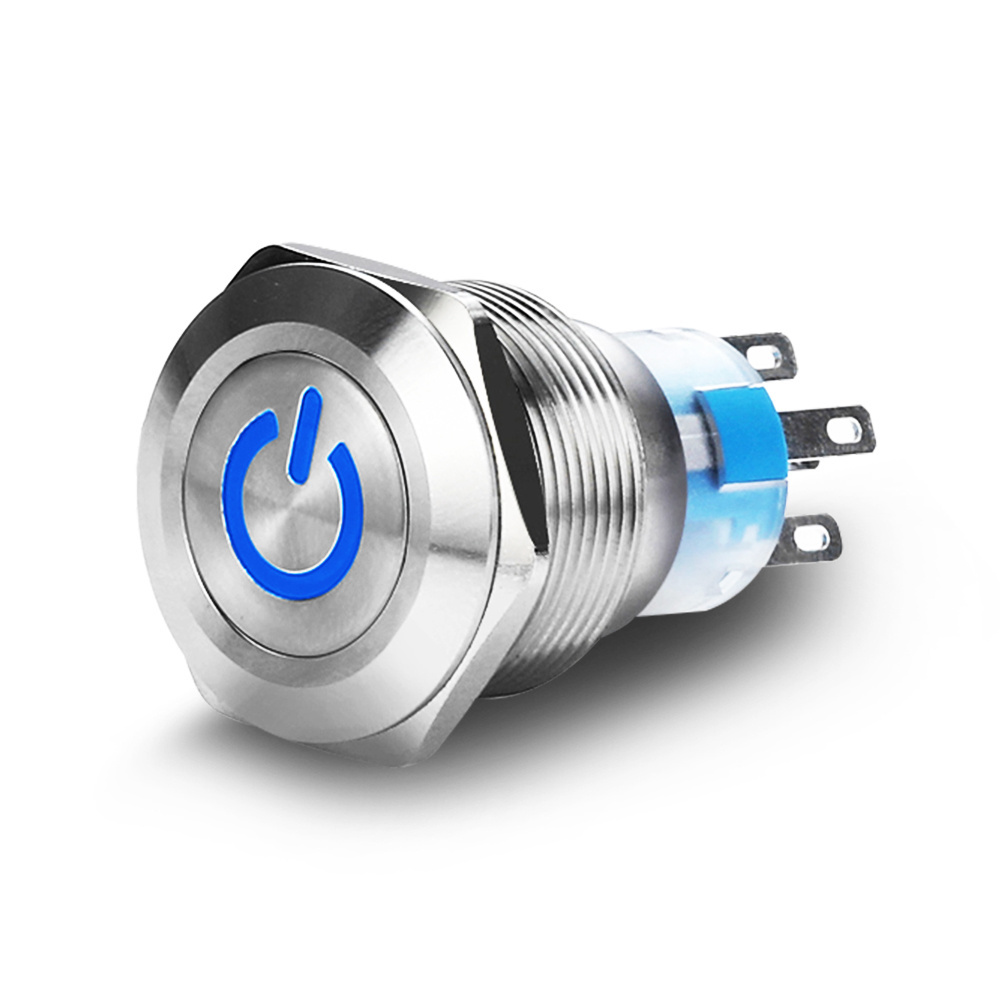

12 volt 22MM 10A High current waterproof latching momentary metal LED push button switch
22mm push button switch
flat head
1NO1NC / 2NO2NC
self-locking ON-OFF / momentary
J pin terminal
power symbol LED light
LED color : R G B Y W
LED voltage : 2V 3V 5V 6V 12V 24V 36V 48V 110V 220V
body material : brass nickel plated / stainless steel / Zn-Al alloy
