Quick Details
-
Structure:
-
overlay/reaining layer/rear adhesive
-
Overlay:
-
F150
-
Emboss height:
-
0.5mm
-
Custom Service:
-
Available
-
Rear Adhesive:
-
3m468
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Size:
-
Customized Size
-
Material:
-
PET
-
Structure:
-
overlay/reaining layer/rear adhesive
-
Overlay:
-
F150
-
Emboss height:
-
0.5mm
-
Custom Service:
-
Available
-
Rear Adhesive:
-
3m468

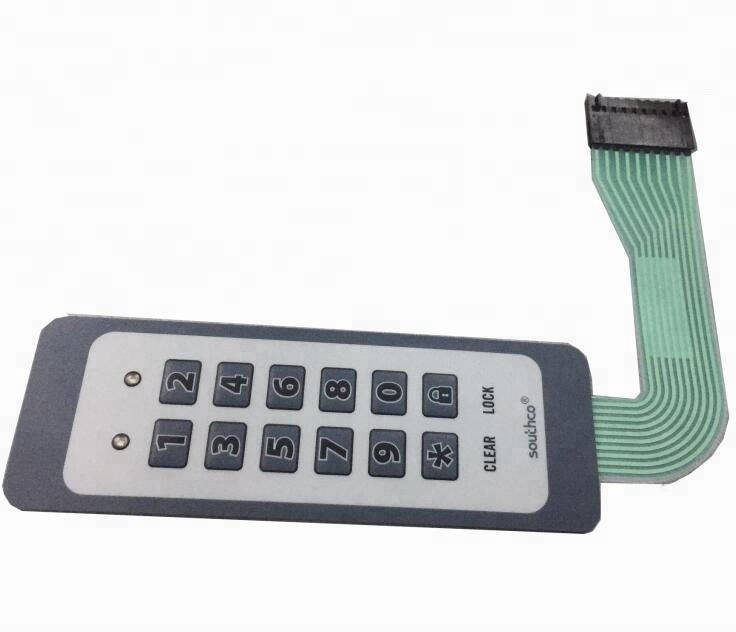

Custom push button tactile membrane keypad waterproof membrane switch
What we offer:
Membrane switch with Silicone rubber,FPC,PCB,LGF,Fiber optic backlight
Projected(Surface) Capacitive Touch Screen(3.5”-32”):G+G/P+G/G+F+F with USB/Control Board,IIC /COF (different surface coating solutions:AG,AR,AF/AS)
Resistive Touch Screen : 4-wire / 5-wire / 8-wire
Should any of these items be of interest to you, please let us know. We will be happy to give you a quotation upon receipt of your detailed requirements.
| 1.Membrane keyboard Construct | |||
| Graphic Overlay: |
PE(F150,V150,EBG,EGA,XEF,XEV...)
|
||
| Spacer: | NIKTO,3M... | ||
| Lowwer Circuit: | PET circuit ,Single glue,FPC,PCB... | ||
| Rear Adhesive: | 3M... | ||
| Oil Ink: | GV,TOYO,SEIKO,MERLIA,, JUJO..... | ||
| Thickness: | 0.2-5.0mm | ||
| 2.Electrical Properties | |||
| Operating Voltage: | ≤ 50VDC | ||
| Working Current: | ≤ 100mA | ||
| Loop Resistance: | <200Ω | ||
| Insulation Resistance: | 50V (50MΩ) | ||
| Dielectric: | 250 Vrms (50~60Hz 1min) | ||
| Contact Bounce: | < 5ms | ||
| Expected Life (Flat) | ≥ 5million times | ||
| Expected Life (Tactile) | ≥ 1 million times | ||
| Duraswitch | ≥ 10million times | ||
| 3.Mechanica Properties | |||
| Operation Force (Flat) | 57~284g(2~10oz) | ||
| Operation Force (Tactile) | 170~450g(6~14oz) | ||
| Operation Height (Flat) | 0.1~0.5mm | ||
| Operation Height (Tactile) | 0.6~1.5mm | ||
| 4.Environment Parameter | |||
| Operation Temperature | -40~+80 Degree Centigrade | ||
| Storage Temperature | -40~+85 Degree Centigrade | ||
| Humidity | 90%~95%, 240 hours | ||
| Atmospheric pressure | 80 ~ 108kDa | ||
——————— Packing ———————
1) Wrap in air bubble film
2) Put into foam box
3) Packed with extra carton box, which make sure the goods safety in transportation.
4) We accepted Customized package.
——————— Delivery ———————
To create and submit counter-drawings + artwork for your approval:2-3 working days
To build tooling and Sample Shipping:8-10 days
Mass Production Delivery:15-30 days after the sample confirmation
—————— Shipping Details ——————
1) Can be Shippded by international express such as DHL, FEDEX, EMS, TNT, UPS, or by Sea, by air, it's depends on customzers' requirement.
2) The tracking number will be informed once the package was delivered.
3) We will follow the shipment after we sent it. If you not receive goods on time, please contact us immediately, we will assist to get the goods smoothly.
————————
FAQ
————————
Q:Why choose Singway?
A:1)Enough industrail experience and involved main markets all over the world.
2)Dedicated and professional sales team will offer you 24hours online and immediate service.
3)Precise and advantage equipments.
4)High quality and sensitivity.
5)Many kinds of products with all size.
Q:How long is the warranty period?
A:Usually 1 year without damaged by people actions.It depends on different products.
If you have any questions,pls feel free to contact us.
