C50 NPN/PNP 4 Wires Square Infrared Diffuse Reflection Optical Photo Cell Sensor Switch 5Vdc/12V/24Vdc IP67 Waterproof (IBEST)

C50 NPN/PNP 4 Wires Square Infrared Diffuse Reflection Optical Photo Cell Sensor Switch 5Vdc/12V/24Vdc IP67 Waterproof (IBEST)

FOB Reference Price: Get Latest Price

≥2 Sets

US $7

≥20 Sets

US $6.5

≥50 Sets

US $6

≥100 Sets

US $5.5

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Detect Distance:: 30cm adjustable

Target Object:: All non-transparent objects

Material of Housing:: Nickled Plasted Brass Housing

Cable:: 2M PVC cable

Response time:: <3ms

Warranty:: 12 Months

Operating temperature:: -15-+65C degrees

Supply voltage:: DC 10-30V

Quick Details

Use:: photo sensor

Place of Origin:: Guangdong, China

Approval:: CE

Detect Distance:: 30cm adjustable

Target Object:: All non-transparent objects

Material of Housing:: Nickled Plasted Brass Housing

Cable:: 2M PVC cable

Response time:: <3ms

Warranty:: 12 Months

Operating temperature:: -15-+65C degrees

Supply voltage:: DC 10-30V

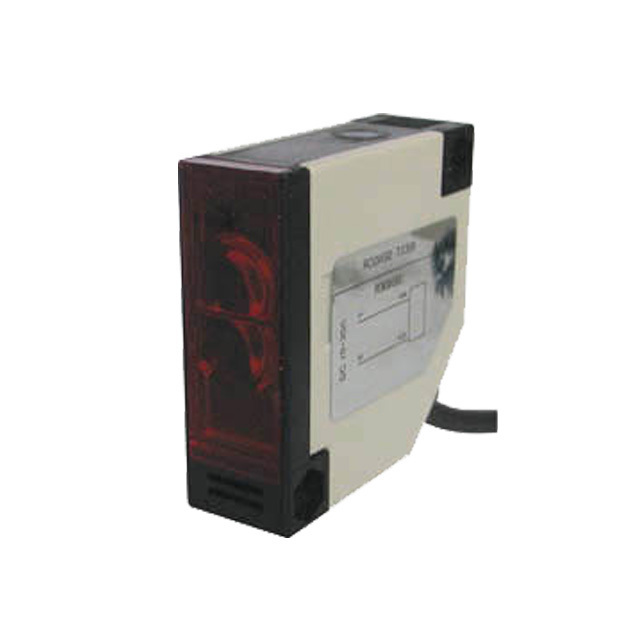

C50 Infared DiffusedType Photo Sensor Switch

NPN or PNP / NO+NC Output / 0-30CM

1.Features:

--     Through-beam, detect distance: 5m / Retro-reflective, detect distance: 2m/ Diffusec-reflective, detect distance: 30cm.
--     PNP or NPN; NO or NC or NO+NC, DC 3 wire or 4 wires.
--     Light resource: Infrared LED
--     Strong anti-shock and anti-vibration.
--     Non-contact object detect: Avoid the photoelectric sensor to contact the object directly, protect the inducing component from damage and extend the operation life of the sensor.
--     Detect any objects with different materials: Detect objects by the light quantities reflected and received, detect objects such as glass, metal, plastic, wood, fluid...etc.
--     Fast response: Max. 3ms
--     Identify object colors: According to the colors' reflectivity and absorptivity, the sensors detect the light that the object reflected and identify the colors.
--     High precision: Precise electron circuit, can detect tiny objects with accurate position.

-- IP ratings: IP65 Dust proof.
-- Various other shapes: M12/M18 and square types.

2. Ordering Code:

Model and Type	Detecing type	Out type	Detecting distance range	Current output	Power supply	Buy
PES-TC50NO5MD	Through-beam	NPN NO	5m	≤200mA	DC 10-30V
PES-TC50NC5MD	Through-beam	NPN NC	5m	≤200mA	DC 10-30V
PES-TC50PO5MD	Through-beam	PNP NO	5m	≤200mA	DC 10-30V
PES-TC50PC5MD	Through-beam	PNP NC	5m	≤200mA	DC 10-30V
PES-TC50NOC5MD	Through-beam	NPN NO+NC 4 Wrie	5m	≤200mA	DC 10-30V
PES-TC50POC5MD	Through-beam	PNP NO+NC 4 Wire	5m	≤200mA	DC 10-30V
PES-TC50AO5MD	Through-beam	AC NO 2 Wire	5m	≤400mA	AC 20-250V
PES-TC50AC5MD	Through-beam	AC NC 2 Wire	5m	≤400mA	AC 20-250V
PES-RC50NO2MD	Retro-reflective	NPN NO	2m	≤200mA	DC 10-30V
PES-RC50NC2MD	Retro-reflective	NPN NC	2m	≤200mA	DC 10-30V
PES-RC50PO2MD	Retro-reflective	PNP NO	2m	≤200mA	DC 10-30V
PES-RC50PC2MD	Retro-reflective	PNP NC	2m	≤200mA	DC 10-30V
PES-RC50NOC2MD	Retro-reflective	NPN NO+NC 4 Wrie	2m	≤200mA	DC 10-30V
PES-RC50POC2MD	Retro-reflective	PNP NO+NC 4 Wire	2m	≤200mA	DC 10-30V
PES-RC50AO2MA	Retro-reflective	AC NO 2 Wire	2m	≤300mA	AC 20-250V
PES-RC50AC2MA	Retro-reflective	AC NC 2 Wire	2m	≤300mA	AC 20-250V

PES-DC50NO30D	Diffused-reflective	NPN NO	30cm	≤200mA	DC 10-30V
PES-DC50NC30D	Diffused-reflective	NPN NC	30cm	≤200mA	DC 10-30V
PES-DC50PO30D	Diffused-reflective	PNP NO	30cm	≤200mA	DC 10-30V
PES-DC50PC30D	Diffused-reflective	PNP NC	30cm	≤200mA	DC 10-30V
PES-DC50NOC30D	Diffused-reflective	NPN NO+NC 4 Wrie	30cm	≤200mA	DC 10-30V
PES-DC50POC30D	Diffused-reflective	PNP NO+NC 4 Wire	30cm	≤200mA	DC 10-30V
PES-DC50AO30A	Diffused-reflective	AC NO 2 Wire	30cm	≤300mA	AC 20-250V
PES-DC50AC30A	Diffused-reflective	AC NC 2 Wire	30cm	≤300mA	AC 20-250V
