Quick Details
-
Warranty(Year):
-
3-Year
-
Color Temperature(CCT):
-
4000K, 5000K, CCT Changing
-
Color Rendering Index(Ra):
-
82+
-
Lifespan (hours):
-
50000
-
Working Time (hours):
-
50000
-
Product Weight（kg）:
-
9
-
Input Voltage(V):
-
100-277Vac
-
Lamp Luminous Flux(lm):
-
4000
-
CRI (Ra>):
-
82
-
Working Temperature(℃):
-
-20 - 50
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SunPZone
-
Model Number:
-
NTPL2250PMV50KD1
-
Multifunction:
-
LED Panel Lighting, Air Sterilization, Air Purification
-
Antimicrobial Nano Material:
-
Nanosilver+Titanium Dioxide
-
Dimension:
-
2*2ft
-
Power:
-
LED 35W, Fan 15W
-
Working Time of Filter:
-
2160 Hours
-
Constructure of Filters:
-
HEPA 4-Layer
-
Noise:
-
<40dBA
-
LED Chip Lifetime:
-
L70 >100,000 hours @ 25 degree centigrade
-
Installation:
-
Reccessed, Suspending, Surface Mount
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
110
-
Application:
-
School, Office, Hotel, Elevator Room etc., Office, Schools and Universities, Hotel, Residential
-
Lamp Body Material:
-
ABS
-
Warranty(Year):
-
3-Year
-
Color Temperature(CCT):
-
4000K, 5000K, CCT Changing
-
Color Rendering Index(Ra):
-
82+
-
Lifespan (hours):
-
50000
-
Working Time (hours):
-
50000
-
Product Weight（kg）:
-
9
-
Input Voltage(V):
-
100-277Vac
-
Lamp Luminous Flux(lm):
-
4000
-
CRI (Ra>):
-
82
-
Working Temperature(℃):
-
-20 - 50
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SunPZone
-
Model Number:
-
NTPL2250PMV50KD1
-
Multifunction:
-
LED Panel Lighting, Air Sterilization, Air Purification
-
Antimicrobial Nano Material:
-
Nanosilver+Titanium Dioxide
-
Dimension:
-
2*2ft
-
Power:
-
LED 35W, Fan 15W
-
Working Time of Filter:
-
2160 Hours
-
Constructure of Filters:
-
HEPA 4-Layer
-
Noise:
-
<40dBA
-
LED Chip Lifetime:
-
L70 >100,000 hours @ 25 degree centigrade
-
Installation:
-
Reccessed, Suspending, Surface Mount

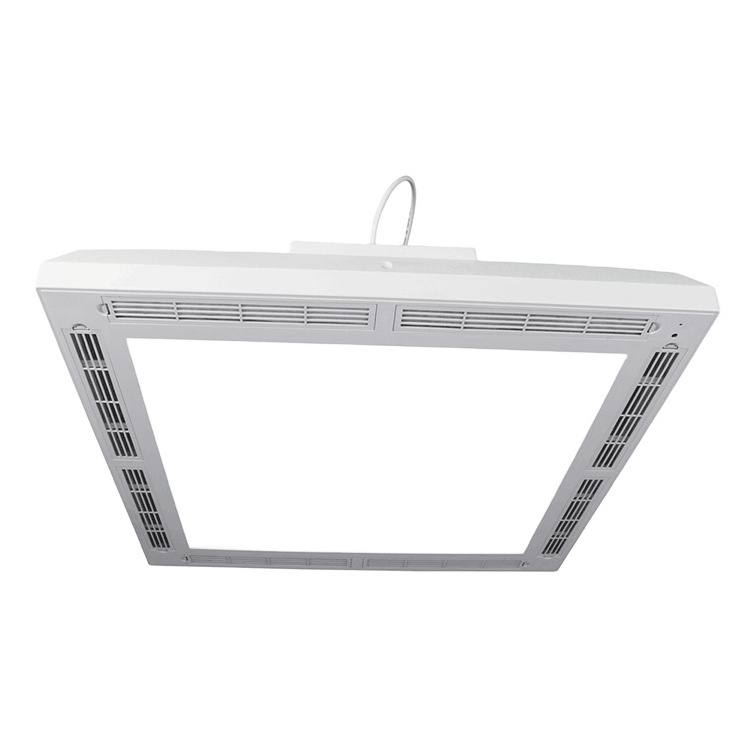

Latest Nano-Tech Air Sterilizer LED Panel Equipment
* Cleaning and Freshing Air
* Automatically Killing Bacteria and Virus in Air
* Automatically Killing Bacteria and Virus in Air
* Reducing the Floating Particles in Air
* Eliminating the TVOC Concentration in Air
* Saving Installation Space
* Eliminating the TVOC Concentration in Air
* Saving Installation Space
Application: Ideal for Schools, Universities, Kindergarten, Office, Clean Room, Elevator, Gymnasium etc.
Attached with Automatically Air Circulating & Cleaning System
Built-in Centrifugal Industrial Fan +
4-Layer Filtration + Air Inlet & Outlet
Newly Designed with Dual-purpose
Perfect Combination of
Air Purifer +
General Lighting
Not only works as an air purifier, but also works as a regular LED panel light during disinfection with the nanosilver and titanium dioxide
Over 99% Sterilizing Rate against Bacteria & Virus
It can effectively kill against the H1N1 Virus, Escherichia Coli, Staphylococcus Aureus, White Candida, and eliminate Formaldehyde, TVOC Concentration etc.
What is the working principle to kill bacteria & virus
1) Silver ion reacts with hydrogen sulfide ion in bacteria and inhabits its reproduction.
2) Produces superoxide free radicals and breaks down the bacteria.
3) Material surface is with electric charge that pull the membranes of bacteria, cause rupture and bring bacteria to death.
Depending on nanometer materials, such as nanosilver and titanium dioxide, to kill the virus and bacteria.
1) The surface of PC cover is coated with Nanometer Silver and Titanium Dioxide and the filters are aslo soaked with Nanometer Silver and Titanium Dioxide.
2) When the bacteria or virus in air touch the surface of the Nanometer Coating or Filters, then they will be killed.
Descriptions of Air Circulating System
Less than 40dB
Centrifugal Industrial Fa
n + Air Inlet & Outlet
1) The centrifugal industrial fan is powerful and silent with less noise when it works.
2) Air comes into the intake and goes out through the outlet.
2) Air comes into the intake and goes out through the outlet.
4-Layer Filtration & Its Different Function
1) The inhaled air will be purified by getting rid of the floating particles and automatically killing bacteria and virus in air.
2) Filters will be changed after working for 2160hrs when the indicator light is flickering. Using the pin to reset the timing counter.
|
Layer
|
Material
|
|
Function
|
|
||
|
1st & 4th Layers
|
Non-woven Fabric
|
|
Dust extraction, filter larger particles
|
|
||
|
2rd Layer
|
Activated Carbon
|
|
Elimination of air odor, deodorization
|
|
||
|
3rd Layer
|
Nanometer Antiseptic Material
|
|
Air cleaning, dust extraction, antisepticsis and decomposition of organic gas
|
|
||
Basic Parameters of the Nano-Tech Sterilizing Panel Light
|
Dimension
|
2*2ft (600*600mm)
|
|
Power
|
50W
|
|
Input Voltage
|
AC100-277V
|
|
Lumens
|
4000LM
|
|
Efficiency
|
110lm/w
|
|
CCT
|
4000K, 5000K
|
|
CRI
|
82+
|
|
Noise
|
<40dB
|
|
Installation Option
|
1) Recessed mounted on the 2*2ft ceiling.
2) Suspending by steel poles or ropes
|
|
More Technical Parameters
|
