Professional Helicopter Drone RC Car UAV Camera Stabilizer Shock Vibration Insulation GR4-18D-A Camera Vibration Isolator

B y building your own RC Car Camera Gimbal Stabilizer, the GR Series camera vibration isolators is your best choice!

The GR4-18D-A camera vibration isolator is one type camera vibration isolators from the GR4 family, which is designed especially for single use or building camera gimbals to absorb tensional force against the vehicles movement with the camera.

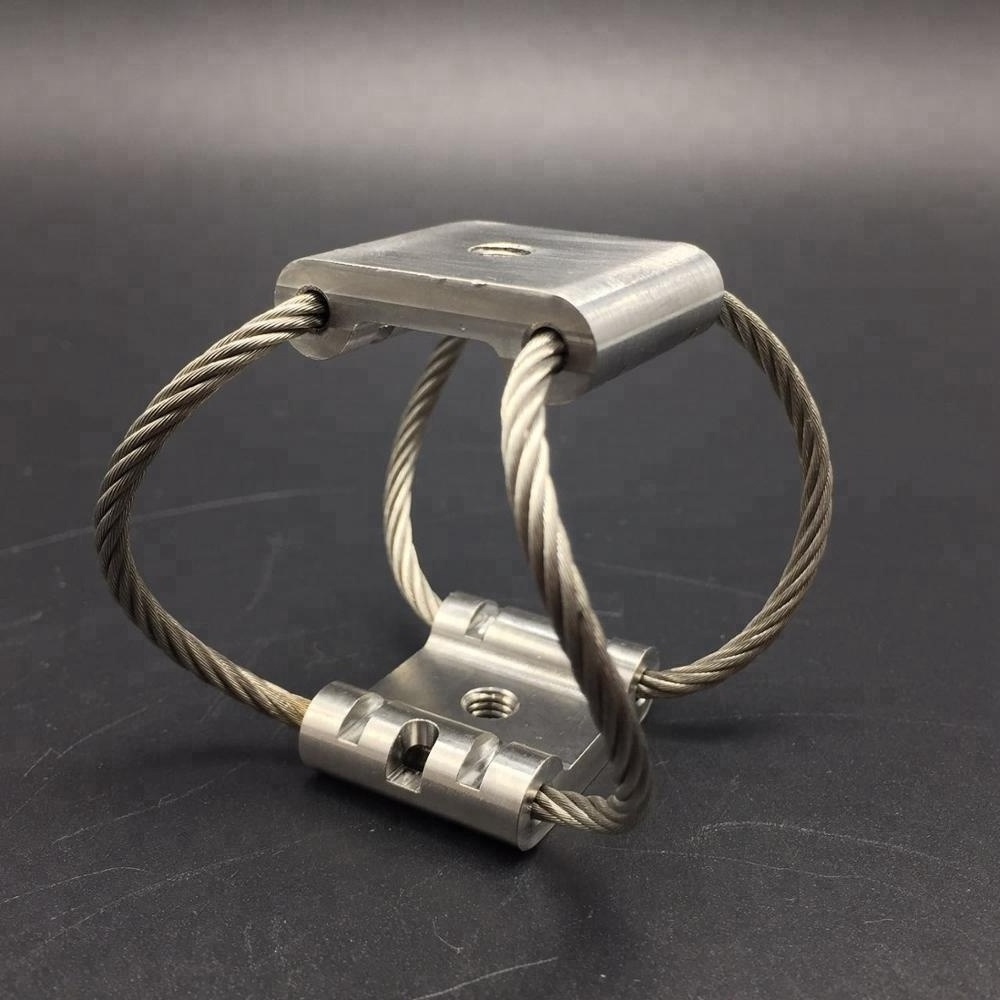

The  GR4-18D-A is made by the 3.2mm diameter wire rope winded in the two mounting bars, with maximum static load of 18N (1.84kg), which is indeed exquisite.

The GR4-18D-A camera vibration isolators can smooth out the small rhythmic vibrations of a traveling shot as well as dampening those sudden, unexpected jolts that a stone or a pothole can produce. With stainless steel material, the GR4-18D-A model has perfect performance of water-proof, anticorrosion as well as durability.

Nowadays, the GR series isolators are used widely in the field of RC car aerial drone systems stabilizer, helicopter drone gimbal stabilizer, video project stabilizer, drone shooting stabilizer, UAV camera and camera stabilizer, etc.

• Model Number Code Ordering of GR4-18D-A :
• Structural Diagram of GR4-18D-A :
• Dimension of GR4-18D-A :
• Mounting Options of GR4-18D-A :
• Compression of GR4-18D-A :
• 45° Compression of GR4-18D-A :
• Shear/Roll of GR4-18D-A :

* Material of Mounting Bars *
Stainless Steel or Aluminum can be selected

* Surface Treatment Selection of Aluminum Mounting Bars *

• White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
• Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way . Special use for complex or special requirements of the working conditions of the using of wire rope isolators.

* Unique Characteristics of Xi'an Hoan's Vibration Isolators *

• No creep or ageing.
• High internal damping.
• Very wide temperature range.
• Wide variety of possible fittings.
• Rapid and economical prototyping.
• Extremely rugged construction and long lifespan.
• Excellent combined shock and vibration isolation.
• Not affected by chemical agents, seawater, ozone, UV rays,...

* Applications of Wire Rope Isolators *
