Quick Details
-
Voltage:
-
380V/50HZ
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Youbond
-
Dimension(L*W*H):
-
11.5*2.4*2.4M
-
Weight:
-
5000 KG
-
After-sales Service Provided:
-
onilne support
-
Max.Sheet size:
-
1650x1450mm
-
Min.Sheet size:
-
400x400mm
-
Max Speed:
-
7000sheets/hour
-
Fitting Precision:
-
±1mm
-
Certification:
-
CE
-
Marketing Type:
-
New Product 2020
Quick Details
-
Packaging Type:
-
Iron Shelf
-
Packaging Material:
-
Paper, Plastic, Iron
-
Driven Type:
-
Electric
-
Voltage:
-
380V/50HZ
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Youbond
-
Dimension(L*W*H):
-
11.5*2.4*2.4M
-
Weight:
-
5000 KG
-
After-sales Service Provided:
-
onilne support
-
Max.Sheet size:
-
1650x1450mm
-
Min.Sheet size:
-
400x400mm
-
Max Speed:
-
7000sheets/hour
-
Fitting Precision:
-
±1mm
-
Certification:
-
CE
-
Marketing Type:
-
New Product 2020

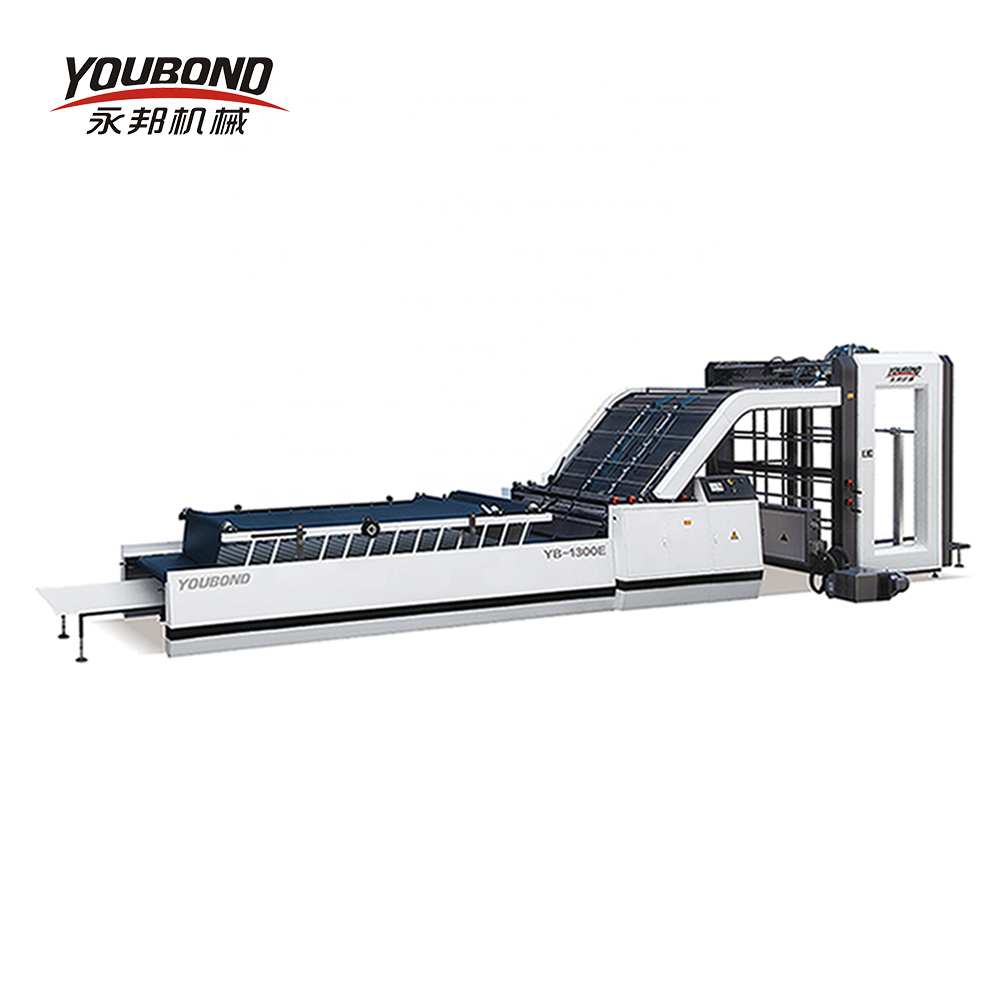

Automatic flute laminating machine(servo type)
Features:
1,Servo motor controls bottom sheet
2,Front gauge and side lay for sheet alignment
3,Imported electrical component for stable running
Specification of the YB-1300-1450-1650E flute laminating machine
| MODEL | YB-1300E | YB-1450E | YB-1650E |
| Max Sheet | 1300×1250mm | 1450×1250mm | 16 5 0×14 5 0mm |
| Min Sheet | 400×400mm | 400×400mm | 400*400mm |
| Top Paper Thickness | 150-500g | 150-500g | 150-500g |
| Botton Sheet Thickness |
A,B,C,E,F flute,4 ply corrugated paper(AA,AB,BB),Gray board |
||
| Max Speed | 7000sheets/hour | 7000sheets/hour | 7000sheets/hour |
| Fitting Precision | ±1mm | ±1mm | ±1mm |
| Machine Weight | 5000kg | 5500kg | 6000kg |
| Measurement | 11.5×2×2.4M | 11.5×2.2×2.4M | 11.5×2.4×2.4M |
| Machine Power | 10KW/380V | 11KW/380V | 12KW/380V |
Production Precess:
1.Top Feeder Part
4 suckers for picking up paper and 4 suckers for conveying paper to ensure stable and fast paper feeding.nozzle angle is adjustable.
2.Bottom feeding part
3.Pressure Adjusting part
Single-side pressure regulation to ensure that the two side pressure is the same, with display of the dial gauge. it is easy to change to the pressure of the different bottom sheet.
Laminting and pressing pressure Glue amount adjustment
4. Sheet positioning part
Top sheet and bottom sheet aligned with the front and side gauge, to make it accuract of the front and side positioning, shete front position is adjustable.
Side-lay gauge front gauge
5. Electrical components
Ues imported components like Schneider and Simens,plc tracking techonogy,automatic fault detection
6. Sheet pressing part
Floating design of press, no need to adjust the pressure, the heightening design is smooth for thick corrugated board
