* Universal housing, an ideal substitute for sensors of various styles
* Comply with IP67, suitable for harsh environment
* Sensitivity one-key setting, accurate and fast setting
* Stable detection of various transparent bottles and various transparent films
* Normally open and normally closed switchable
* Coaxial optical principle, no blind zone
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
PSE-GC PSE-GM
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Lanbao
-
Output:
-
NPN NO/NC PNP NO/NC, NPN NO/NC PNP NO/NC
-
Product name:
-
Photoelectric Switch
-
Detect Object:
-
Transparent
-
Detection distance:
-
50cm 2M
-
Supply voltage:
-
10...30VDC (Ripple P-P:<10%)
-
Consumption current:
-
<25mA
-
Voltage drop:
-
≤1.5V
Quick Details
-
Usage:
-
Positioning Sensor, Position Sensor
-
Mounting Type:
-
NO
-
Description:
-
Photoelectric sensor, Photoelectric sensor
-
Model Number:
-
PSE-GC PSE-GM
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Lanbao
-
Output:
-
NPN NO/NC PNP NO/NC, NPN NO/NC PNP NO/NC
-
Product name:
-
Photoelectric Switch
-
Detect Object:
-
Transparent
-
Detection distance:
-
50cm 2M
-
Supply voltage:
-
10...30VDC (Ripple P-P:<10%)
-
Consumption current:
-
<25mA
-
Voltage drop:
-
≤1.5V

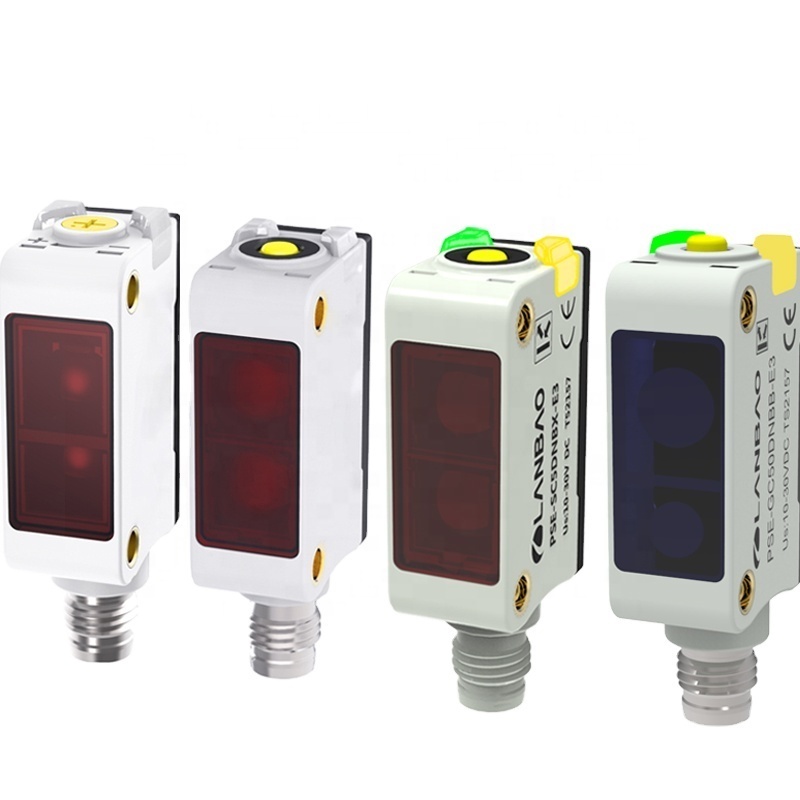

Lanbao high quality low price PSE compact photoelectric sensor switch
Product Features
Product Paramenters
|
NPN NO/NC
|
PSE-GC50DNBB
|
PNP NO/NC
|
PSE-GC50DPBB
|
|
NPN NO/NC
|
PSE-GC50DNBB-E3
|
PNP NO/NC
|
PSE-GC50DPBB-E3
|
|
NPN NO/NC
|
PSE-GM2DNBB
|
PNP NO/NC
|
PSE-GM2DPBB
|
|
NPN NO/NC
|
PSE-GM2DNBB-E3
|
PNP NO/NC
|
PSE-GM2DPBB-E3
|
|
Detection distance
|
50cm 2m
|
Operating temperature
|
﹣25...55 ºC (No condensation, no icing)
|
||
|
Light spot size
|
≤14mm@0.5m
≤60mm@2m
|
Vibration resistance
|
10...55Hz,Double amplitude 0.5mm (2.5hrs
|
||
|
Supply voltage
|
10...30VDC (Ripple P-P:＜10%)
|
|
each for X、Y、Z direction)
|
||
|
Consumption current
|
＜25mA
|
Impulse withsand
|
500m/s² ,3 times each for X、Y、Z direction
|
||
|
Load current
|
200mA
|
High pressure resistant
|
1000V/AC 50/60Hz 60s
|
||
|
Voltage drop
|
≤1.5V
|
Protection degree
|
IP67
|
||
|
Light source
|
Blue light(460nm)
|
Certification
|
CE
|
||
|
Protection circuit
|
Short circuit protection、Polarity protection、Overload protection
|
Housing material
|
PC+ABS
|
||
|
Indicator
|
Green:Power indicator
|
Lens
|
PMMA
|
||
|
|
Yellow:Output indication、Overload indication
|
Weight
|
10g
|
||
|
Response time
|
＜0.5ms
|
Connection type
|
2m PVC Cable
M8 Connector
|
||
|
Anti ambient light
|
Sunshine ≤10,000Lux;Incandescent≤3,000Lux
|
Accessories
|
Mounting Bracket:ZJP-8、Operation manual、TD-08 Reflector
|
||
|
Storage temperature
|
﹣30...70 ºC
|
|
|
||
|
NO/NC adjustment
|
Press the button for 5...8s, when the yellow and green light flash synchronously at 2Hz, finish the state switching.
|
|
|
||
|
Distance adjustment
|
The product is facing the reflector,press the button for 2...5s,when the yellow and green light flash synchronously at 4Hz, and
lift to finish the distance |
|
|
||
|
|
setting.If the yellow and green light flash asynchronously at 8Hz, setting fails and the product distance goes to the maximum.
|
|
|
||
Dimension
Wiring diagram
