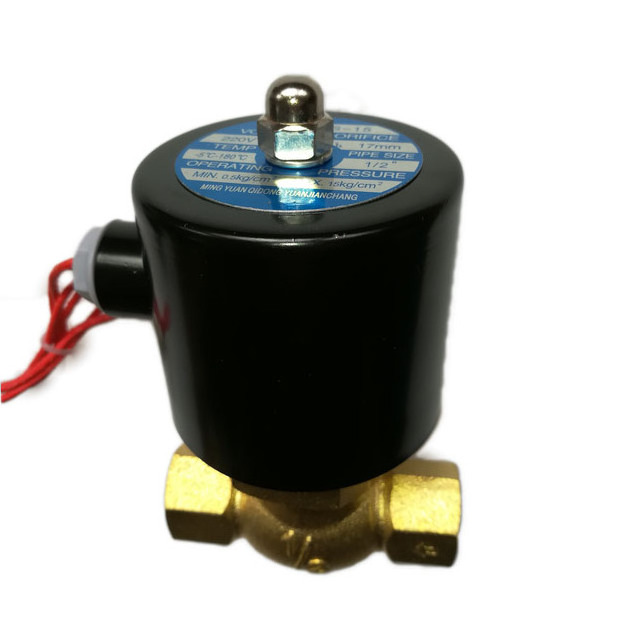

Low voltage latching explosion proof ex 1/2 24v 2 5 mm electromagnetic solenoid valve

Low voltage latching explosion proof ex 1/2 24v 2 5 mm electromagnetic solenoid valve

FOB Reference Price: Get Latest Price

≥10 Pieces

US $17.8

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Type:: solenoid valve

Brand Name:: MYPC

Product name:: 2L(US) Series Two-position Two-way Steam Solenoid Valve

Material:: Brass

Seal Material:: PTFE

Working medium:: Air, Water, Steam

Working pressure:: 1~15 kgf/cm2

Voltage:: DC12V DC24V AC24V AC36V AC110V AC220V AC380V

Working Temperature:: -5~180℃

MOQ:: 10

Size:: 3/8''~2''

Thread:: G.NPT

Quick Details

Warranty:: 1 years

Place of Origin:: zhejiang

Model Number:: 2L

Type:: solenoid valve

Brand Name:: MYPC

Product name:: 2L(US) Series Two-position Two-way Steam Solenoid Valve

Material:: Brass

Seal Material:: PTFE

Working medium:: Air, Water, Steam

Working pressure:: 1~15 kgf/cm2

Voltage:: DC12V DC24V AC24V AC36V AC110V AC220V AC380V

Working Temperature:: -5~180℃

MOQ:: 10

Size:: 3/8''~2''

Thread:: G.NPT

Product name	2L(US) Series Two-position Two-way Steam Solenoid Valve
Material	Brass
Seal Material	PTFE
Medium	Air, Water, Steam
Working Pressure	1~15 kgf/cm ²
Voltage	DC12V/DV24V/AC24V/AC36V/AC110V/AC220V/AC380V
Working Temperature	-5~180℃
Working Tpye	Direct Acting NC
Duty Cycle	ED 100%
Degree of pretection	IP65

2L(US) Series Two-position Two-way Steam Solenoid Valve:

1. Suitable for steam, hot water, liquids and other media control, the pilot piston, polytetrafluoroethylene (PTFE) sealing body made
of brass.

2.fluid contains impurities, the filter should be installed before the valve (> 60 mesh strainer). 3. The solenoid valve should be installed horizontally, coil up, the direction of the body marks must be consistent with the medium fow.consistent with the medium flow.
