- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
LP-1S50E/100E/200E
-
Place of Origin:
-
Guangdong, China
-
Battery Type:
-
LiFePO4 Technology-LiFePO4 Battery Cells
-
Features:
-
High Power
-
Designing:
-
SoftPack
-
Point:
-
Easy connection with cells holders
-
Type:
-
LiFePO4 Technology
-
Size:
-
Flexible
Quick Details
-
Anode Material:
-
LFP
-
Application:
-
Toys, Power Tools, Home Appliances, Consumer Electronics, BOATS, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, Electric Folklifts, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies, Electric Forklifts
-
Brand Name:
-
LITHPOWER
-
Model Number:
-
LP-1S50E/100E/200E
-
Place of Origin:
-
Guangdong, China
-
Battery Type:
-
LiFePO4 Technology-LiFePO4 Battery Cells
-
Features:
-
High Power
-
Designing:
-
SoftPack
-
Point:
-
Easy connection with cells holders
-
Type:
-
LiFePO4 Technology
-
Size:
-
Flexible
High power lifepo4 18650/26650 battery cells, 3.2V 5AH,10AH and 20AH lifepo4 punch, softpack battery cells. High power lifepo4 battery cell 3.2V20AH, and with long lifecycle lifepo4 3.2V10Ah. high power 3.7v2200mah lithium ion battery cell, 18650 lithium ion battery, 3.7v 18650 lithium ion battery, 3.7v lithium ion 2200mAh battery cell, high power 3.7v lithium ion battery cell,lithium ion 3.7v battery, 3.7v lithium ion battery cell with welded tabs
LITHPOWER offers different 3.2V lifepo4 battery cells, high power 3.2V lifepo4 cell, lifepo4 3.2V battery cell, 2000 cycles 3.2V lifepo4 battery cell and safest 3.2V lifepo4 cells.
lithpower offers different 3.2v lifepo4 battery cells, high power 3.2v lifepo4 cell, lifepo4 3.2v battery cell, 2000cycles 3.2v lifepo4 battery, like 3.2v5ah lifepo4 cell, 3.2v10ah lifepo4 punch cell,lifepo4 3.2v15ah battery cell,3.2v20ah lifepo4 battery cell
SHENZHNE LITHPOWER provides a vertical supply chain from LiFePO4 single cells, battery packs to Battery modules with matched BMS as well Chargers as a completely turn-key power solution. We provides a vertical supply chain from LiFePO4 single cells, battery packs to Battery modules with matched BMS as well Chargers as a completely turn-key power solution for our customers.
UL/CE approved LiFePO4 cells; MSDS testing on modules, qualified built-in BMS; Good record in quality and UN38.3 for dangerous goods transportation.
|
Model |
14500E LiFePO4 Cell |
18650E LiFePo4 Cell |
26650E LiFePO4 Cell |
18650P LiFePO4 Cell |
26650P LiFePO4 Cell |
18650E NCM Cell |
26650E NCM Cell |
Soft Pack/Punch Cell |
|
|
Nominal Capacity |
550mAh |
1.5/1.6 Ah |
3.3 AH |
1.1 AH |
2.3 AH |
2.2Ah |
4.5 Ah |
5Ah/6Ah/8AH/10AH/20AH |
|
|
Nominal Voltage(V) |
3.2 |
3.2V |
3.2V |
3.2V |
3.2V |
3.7V |
3.7V |
3.2V |
|
|
Max. Voltage(V) |
3.65 |
3.65V |
3.65V |
3.65V |
3.65V |
4.2V |
4.2V |
3.65V |
|
|
Standard Charge Current(C) |
0.2-0.5C (CC-CV) |
0.2C-0.5C (CC-CV) |
0.2-0.5C (CC-CV) |
0.2-0.5C (CC-CV) |
0.2-0.5C (CC-CV) |
0.2-0.5C (CC-CV) |
0.2-0.5C (CC-CV) |
0.2-0.5C (CC-CV) |
|
|
Max. Constant Discharge Current(C) |
1-2C |
1-2C |
1-2C |
10-20C |
10-20C |
1-2C |
1-2C |
1-2C |
|
|
Max. Pulse Current |
3C |
3C |
3C |
30C |
30C |
3C |
3C |
3C |
|
|
Approx. Weight(g) |
23g |
48g |
88g |
48g |
88g |
48g |
88g |
Flexible |
|
|
Approx. Dimensions |
14X50mm |
18X65mm |
26X65mm |
18X65mm |
26X65mm |
18X65mm |
26X65mm |
Flexible |
|
|
Cycle Life(80% DOD) |
>2000 cycles |
>2000 cycles |
>2000 cycles |
>2000 cycles |
>2000 cycles |
>800 cycles |
>800 cycles |
>2000 cycles |
|
|
Self-discharge Ratio/month |
≤3% |
≤3% |
≤3% |
≤3% |
≤3% |
≤3% |
≤3% |
≤3% |
|
|
Temperature |
Charge |
-10°C~45°C |
-10°C~45°C |
-10°C~45°C |
-10°C~45°C |
-10°C~45°C |
-10°C~45°C |
-10°C~45°C |
-10°C~45°C |
|
Discharge |
-20°C~55°C |
-20°C~55°C |
-20°C~55°C |
-20°C~55°C |
-20°C~55°C |
-20°C~55°C |
-20°C~55°C |
-20°C~55°C |
|
|
Storage |
-10°C~35°C |
-10°C~35°C |
-10°C~35°C |
-10°C~35°C |
-10°C~35°C |
-10°C~35°C |
-10°C~35°C |
-10°C~35°C |
|
Battery Comparison
Smaller size, normally 1/3 as large as conventional SLA battery;
- Lighter weight, normally 1/3 as conventional SLA battery;
- Longer cycle-life, SLA battery is about 300cycles while LiFePO4 battery can be 2000 cycles or more;
- Good performance in deep discharge,LiFePO4 battery can be 100%DOD while SLA battery is 60% ∼ 70%DOD,which means LiFePO4 battery will need less capacity in the same condition;
- Totally environmental-friendly
Features:
A. Extremely safe and stable chemistry: PCB and/or BMS built inside to balance protect the battery.
B. Long life-cycle: Can be circularly used, best can up to 2000 times recycles, 8 times of Lead acid battery.
C. Lighter weight, with the best power-to-weight ratio: 1/ 3 of Lead acid battery weight.
D. Good performance at high temperature and high temperature resistance
E. Low self-discharge rate, less than 3% monthly.
F. No memory effects and highly efficient charge.
G. Environment friendly: Clean and Green energy poses no pollution on our environment.

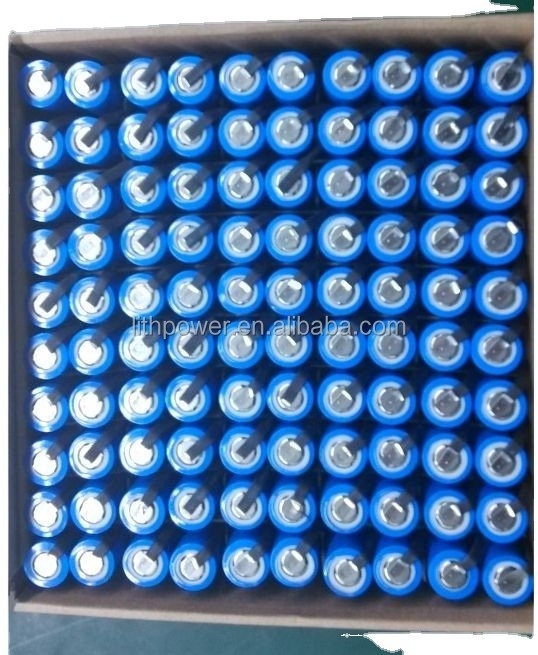

Our LiFePO4 18650-3.2V1.5/1.6AH and 26650-3.2V3.3AH high power battery cells, and 3.2V lifepo4 softpack/punch 5AH,10AH and 20AH cells. With cell holder, Easy for connection and assembly.
