Quick Details
-
Frame material:
-
Q235 hot-dip galvanized steel pipes
-
Diameter Size:
-
3,5,6,8,10,15,20,25m,30m,customized
-
Side Wall material:
-
850g PVC Walls,ABS wall,glass wall
-
Top roof material:
-
water-proof,sun-proof, UV-proof,rust-proof
-
Color:
-
white,red,yellow,optional
-
Max allow wind speed::
-
100km/hour
-
Warranty time:
-
5 years
-
Usage:
-
Outdoor Party,exhibition,event,cenemony,wedding
-
Feature:
-
stable structure,long life ,100% use room
-
Product name:
-

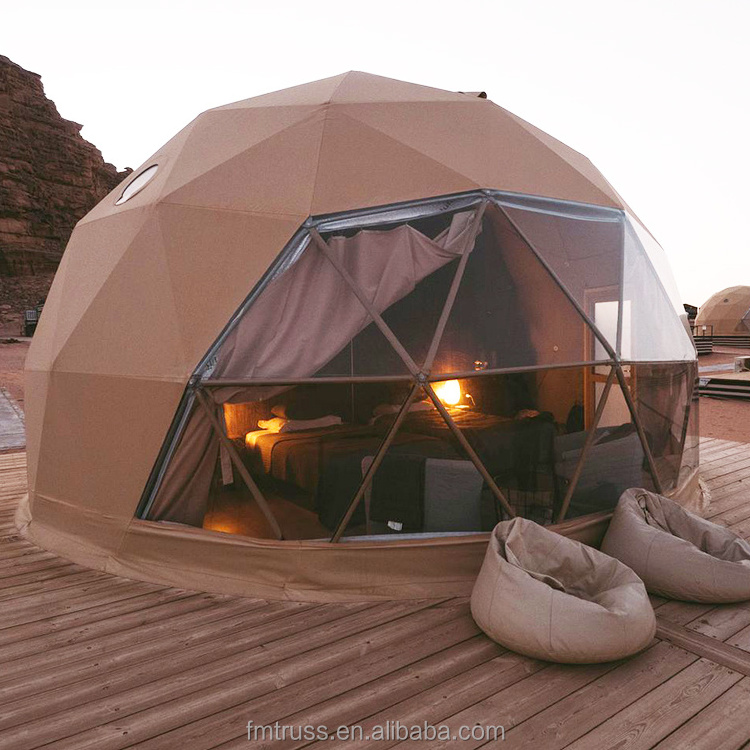

10m size geodesic dome tent for hotel resort room
Quick Details
-
Brand Name:
-
FM
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
Dome Tent
-
Frame material:
-
Q235 hot-dip galvanized steel pipes
-
Diameter Size:
-
3,5,6,8,10,15,20,25m,30m,customized
-
Side Wall material:
-
850g PVC Walls,ABS wall,glass wall
-
Top roof material:
-
water-proof,sun-proof, UV-proof,rust-proof
-
Color:
-
white,red,yellow,optional
-
Max allow wind speed::
-
100km/hour
-
Warranty time:
-
5 years
-
Usage:
-
Outdoor Party,exhibition,event,cenemony,wedding
-
Feature:
-
stable structure,long life ,100% use room
-
Product name:
-
10m size geodesic dome tent for hotel resort room
Products Description
Product Paramenters
|
Specification
|
|
|
|
|
||||
|
Size
|
Area
|
Height
|
Tube Size
|
Packing weight
|
||||
|
3m
|
7.68m2
|
1.77m
|
Ø25*1.5mm
|
|
||||
|
4m
|
12.56m2
|
2.36m
|
|
194
|
||||
|
5m
|
19.63m2
|
2.95m
|
|
273.65
|
||||
|
6m
|
28.27m2
|
3.54m
|
|
320
|
||||
|
7m
|
38.48m2
|
4.13m
|
|
392
|
||||
|
8m
|
50.26m2
|
4.72m
|
|
442
|
||||
|
10m
|
78.53m2
|
5.9m
|
|
605
|
||||
|
12m
|
113.09m2
|
6m
|
Ø32*2.0mm
|
1209
|
||||
|
15m
|
176.71m2
|
7.5m
|
|
2094
|
||||
|
20m
|
314.15m2
|
10m
|
Ø42*2.0mm
|
3641
|
||||
|
25m
|
490.87m2
|
12.5m
|
|
4546
|
||||
|
30m
|
706.85m2
|
15m
|
Ø48*2.0mm(Built-in reinforced 40 tubes)
|
11966
|
||||
|
35m
|
962.11m2
|
17.5m
|
|
|
||||
|
40m
|
1256.63m2
|
20m
|
Ø60*2.5mm(Built-in reinforced 48 tubes)
|
25299
|
||||
|
45m
|
1590.43m2
|
22.5m
|
|
|
||||
|
50m
|
1963.49m2
|
25m
|
|
|
||||
Characteristic of the tent
1.The frame consists of high-quality aluminum profiles and steel structure,which is solid and safe.
2.Sunshade cover made of high grade synthetic fiber plus double-layer PVC material has the advantages of high strength,wind resistance,rainproof,sunproof,flame retardant and so on.
3.Easy to install and disassembled,which is easy for transportation and storage.
4.Not need supporting pillars,modular structure,can be built according to the site.
Recommend Products
Why Choose Us
1)Prepare tools:expansion screws,washers,hex screws,wrenches,bases,fittings
2)Classification of pipe fittings（There are many types of pipe fittings.There are No.1 pipe,No.2 pipe,4,5,6...)
3)Install the fittings according to the serial number of the plan.
