Quick Details
-
Frequency response:
-
DC ~ 400 Hz
-
Linearity:
-
better than ± 0.1%
-
Noise:
-
< 20ntrms @ 1Hz
-
Power supply:
-
3 AA dry batteries
-
Device quality:
-
about 350g
-
Communication interface:
-
fluxgate probe input interface, USB interface
-
Host size:
-
165*90*40mm (L*w*h)
-
Probe size:
-
20*13*13mm (L*w*h)
Quick Details
-
Place of Origin:
-
China
-
Measurement range:
-
0 ~ ± 1000 μ t
-
Display digit:
-
5-digit decimal display
-
Frequency response:
-
DC ~ 400 Hz
-
Linearity:
-
better than ± 0.1%
-
Noise:
-
< 20ntrms @ 1Hz
-
Power supply:
-
3 AA dry batteries
-
Device quality:
-
about 350g
-
Communication interface:
-
fluxgate probe input interface, USB interface
-
Host size:
-
165*90*40mm (L*w*h)
-
Probe size:
-
20*13*13mm (L*w*h)
product description:

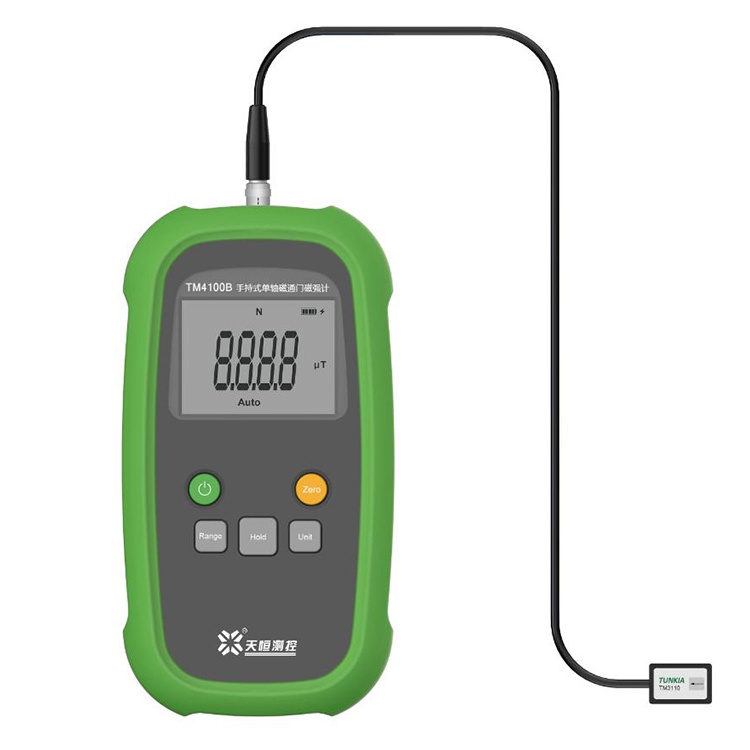

Tm4100b is a portable weak magnetic field measuring instrument. It is equipped with fluxgate sensor with high sensitivity, high linearity and low drift, and advanced digital signal processing technology. Compared with Hall effect magnetic measuring instrument, it can measure weak magnetic field in space more accurately. It is suitable for measuring remanence of magnetic materials or metal parts, monitoring environment magnetic field, geomagnetic detection, attenuation characteristics evaluation of magnetic shielding, magnetic field drift of precision instruments, package detection, geological exploration and other application scenarios that need to measure weak magnetism.
Features
1. Magnetic field measurement range: 1000 μ T, automatic range switching, accuracy level 2 or level 1 optional.
2. One key unit switching: the quantity value can be μ t (micro), Mg (milligauss) and other magnetic units.
3. Maintenance of maximum value: it is convenient to record the maximum value of magnetic field when the magnetic field changes rapidly.
4. One key clear function: used to eliminate the influence of zero drift on measurement before measurement.
5. Built in USB communication interface, convenient for data export or connection to sampling system.
6. Small size, light weight and low power consumption, it is very suitable for carrying to the site for measurement.
Magnetic field measurement index
| Probe (μ T) | Resolution (NT) |
Measurement uncertainty (k = 2)
|
temperature coefficient (% / C) |
|
| Level 2 | Level 1 | |||
| 100 | 10 | ± 2% | ± 1% | ± 0.1 |
| 500 | 10 | ± 2% | ± 1% | ± 0.1 |
| 1000 | 100 | ± 2% | ± 1% | ± 0.1 |
Measurement characteristics:
1. Measurement range: 0 ~ ± 1000 μ t
2. Display digit: 5-digit decimal display
3. Frequency response: DC ~ 400 Hz
4. Linearity: better than ± 0.1%
5. Noise: < 20ntrms @ 1Hz
6. According to the size of the measured magnetic field, select the magnetic field probe of the specification to achieve the best measurement accuracy.
General technical specifications
1. Power supply: 3 AA dry batteries
2. Working environment: 0 ℃ ~ 40 ℃, 20% ~ 80% R · h, no condensation
3. Storage environment: - 20 ℃ ~ 70 ℃, < 85% R · h, no condensation
4. Host size: 165 mm × 90 mm × 40 mm (L × w × h)
5. Probe size: 20 mm × 13 mm × 13 mm (L × w × h)
6. Device mass: about 350 g
7. Communication interface: fluxgate probe input interface, USB interface
