Quick Details
-
Voltage:
-
220/380V
-
Weight:
-
330 KG
-
Dimension(L*W*H):
-
340*140*220
-
Product name:
-
Nitrogen Generator
-
Capacity:
-
3~200Nm3/h
-
Technology:
-
Pressure Swing Adsorbtion (PSA)
-
Purity:
-
95%-99.9995%
-
Working medium:
-
LO2
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YG
-
Production Rate:
-
100%
-
Voltage:
-
220/380V
-
Weight:
-
330 KG
-
Dimension(L*W*H):
-
340*140*220
-
Product name:
-
Nitrogen Generator
-
Capacity:
-
3~200Nm3/h
-
Technology:
-
Pressure Swing Adsorbtion (PSA)
-
Purity:
-
95%-99.9995%
-
Working medium:
-
LO2
liquid oxygen/nitrogen/argon generation plant/gas

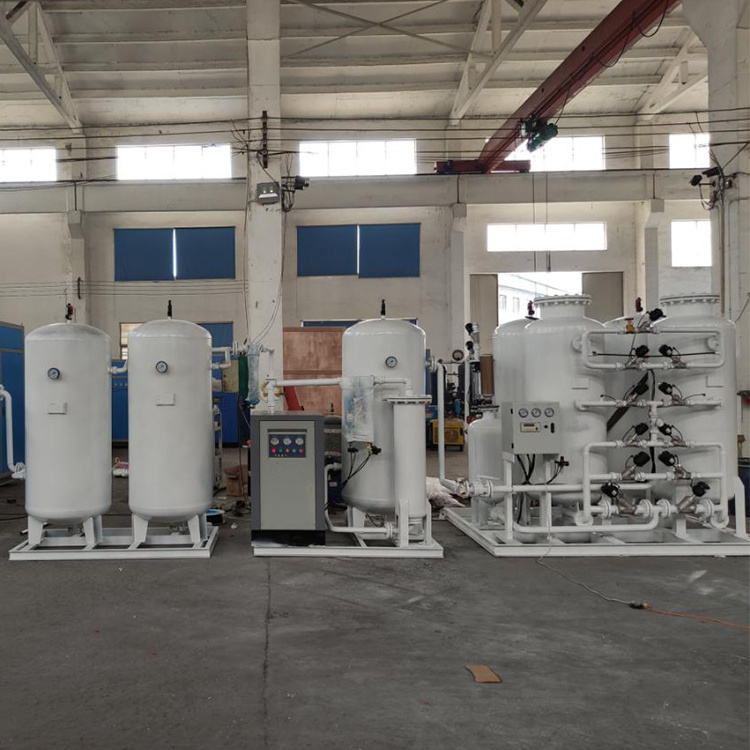

Product description
1. Operational Principle
PSA nitrogen generation adopts carbon molecular sieve as adsorbent whose capacity of adsorbing the oxygen in air shall be larger more than of adsorbing the nitrogen in air. By means of valve opened and closed with PLC, two columns a&b can be shifted in circulation for pressured adsorption,de-pressured dis-adsorption in turn so as to separate the oxygen and nitrogen in air, thus a nitrogen gas with purity demanded can be made.
2. Typical application
Nitrogen is used in short-circuit, large-scale integrated circuit, color and black & white picture tubes, parts of TV sets and recorders, semiconductors manufacturing, electrical equipments as well as laser drilling and other electrical components as protective atmosphere.
3. Specification
· Flow: 3~5000Nm3/h
· Purity: ≥ 95%~99.9995 %
· Pressure: 0.1~0.8Mpa
· Dew point: ≤ -45 ℃
4. Main features
Provide the user with the maximum economic value
· The filling and compacting the molecular sieve shall be made in special method so that the larger compaction intensity and higher adsorption efficiency can be got.
· The optimal design mode for processing and structure enable the system to be in the best operation.
Higher reliability
· A special valve with working life up to one million times is adopted for the system working in high stability and reliability.
· The reasonable design concept and equipment operation more safely and reliably.
Easier in operation
· Automatically recording the nitrogen preparation and easy to monitor and trace the working condition at any time.
· Fully automatically operating the system,worker on duty shall not be needed during the whole processing.
5. Main products&key parts
Product Progress
Yugong focuses on the core of the nitrogen technology and pay attention to the infect of the key parts on the system performance.
Yugong awards the parts bid of the valve, instruments etc. to the qualified supplier in the world so as to enable the systems in batches made by Sujing to keep on the most competent.
